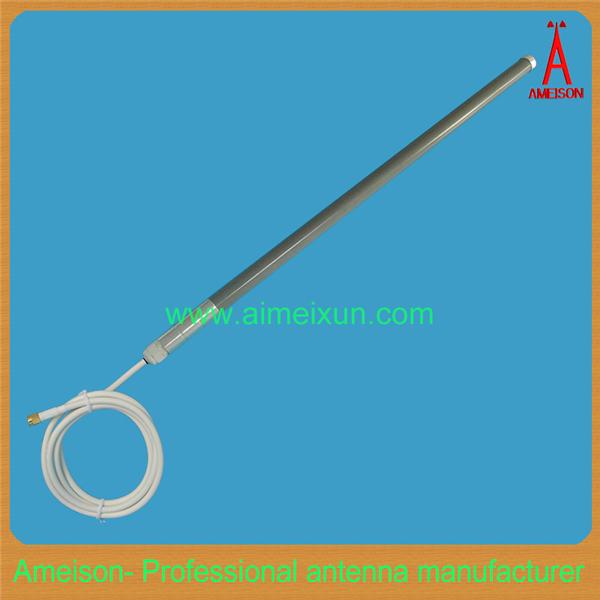

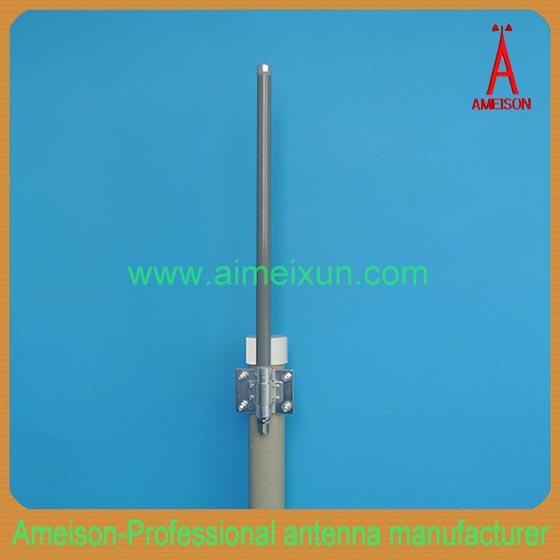

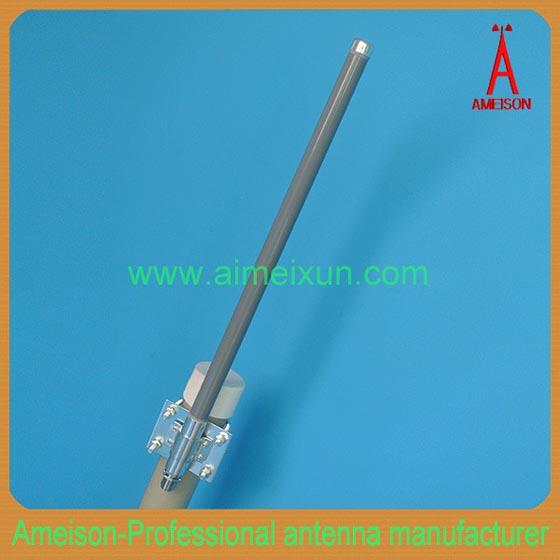

Ameison 1920-2170MHz 12dbi Omni-Directional Fiberglass Antenna 3g antenna
Ameison 1920-2170MHz 12dbi Omni-Directional Fiberglass Antenna 3g antenna
Ameison 1920-2170MHz 12dbi Omni-Directional Fiberglass Antenna 3g antenna
Ameison 1920-2170MHz 12dbi Omni-Directional Fiberglass Antenna 3g antenna
Ameison 1920-2170MHz 12dbi Omni-Directional Fiberglass Antenna 3g antenna
Ameison 1920-2170MHz 12dbi Omni-Directional Fiberglass Antenna 3g antenna
Ameison 1920-2170MHz 12dbi Omni-Directional Fiberglass Antenna 3g antenna
Ameison 1920-2170MHz 12dbi Omni-Directional Fiberglass Antenna 3g antenna
Ameison 1920-2170MHz 12dbi Omni-Directional Fiberglass Antenna 3g antenna
Ameison 1920-2170MHz 12dbi Omni-Directional Fiberglass Antenna 3g antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXF-1922-12
Certification :
ISO 9001: 2008
Frequency range（MHz） :
1920-2170
Bandwidth（MHz） :
250
Gain（dBi） :
12
Half-power beam width（°） :
H:360 V:6
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting way :
Pole-holding
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Description

3GHz Omni-directional antenna
Factory price

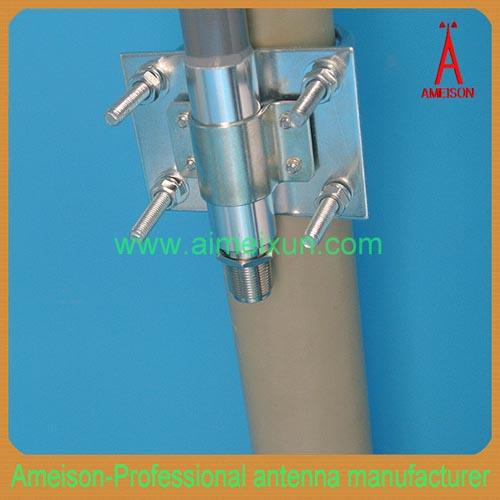

Mounting Kit Included for pole

Weatherproof & Corrosion Resistant

1920-2170MHz Omnidirectional Fiberglass Antenna

AMXF-1922-12

Feature:

Exquisite appearance

Good impact resistance,waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

3G system;

Point-to-multipoint system.

AMXF-1922-12

Electrical Specifications

Frequency range(MHz)

1920-2170

Bandwidth(MHz)

250

Gain(dBi)

12

Half-power beam width(°)

H:360 V:6

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

100

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions (mm)

Φ20*1260

Antenna weight(kg)

0.59

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome color

Gray

Mounting way

Pole-holding

Mounting hardware(mm)

￠35-￠50
