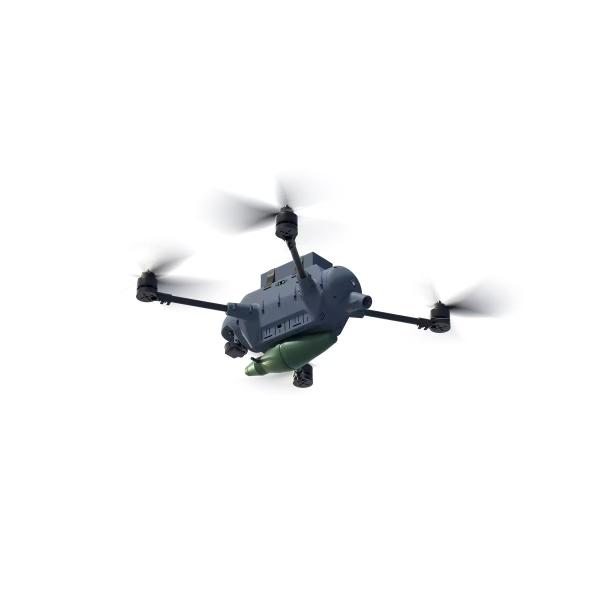

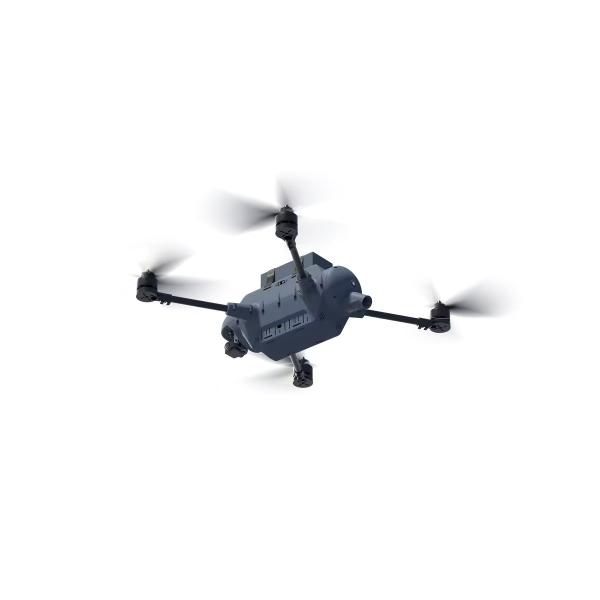

LOONG F2-10 FPV Drone Kit with 5kg Payload and 20km Range
LOONG F2-10 FPV Drone Kit with 5kg Payload and 20km Range
LOONG F2-10 FPV Drone Kit with 5kg Payload and 20km Range
LOONG F2-10 FPV Drone Kit with 5kg Payload and 20km Range
Specifications
Brand Name :
MMC
Model Number :
Fiber Optic Combat UAV LOONG F2-10
Place Of Origin :
SHENZHEN
Certification :
ROHS
MOQ :
2
Price :
Negotiable
Delivery Time :
30
Payment Terms :
T/T
Supply Ability :
20000pcs/Mouth
Max. Descent Speed :
Default 2m/s (max. 3m/s)
Encryption Method :
AES256
Main material :
Carbon Fiber+Magnesium Aluminum Alloy+Plastid
Interference :
100A/m(industrial Magnetic Field)
Automatic obstacleavoidance :
360° Omnidirectionalobstacle Avoidance (horizontal)
Altitude Limit :
5000m
Mapping Distance :
20km
ADS-B Module(optional) :
With ADS-B, It Can Acquire Civil Aviation Information In Real Time And Send It To The Flight Controlthrough UAVCAN.
Description
Drone LOONG F2-10
  • Material: X Carbon Fiber, Aluminum Alloy, Engineering Plastics
  • Wheelbase: 706 mm
  • Expand max.size: 480*609*208mm (Without paddle)
  • Expand max.size: 966*836*208mm (With paddles)
  • Fuselage weigh: 2.8kg(Excluding battery and mount)
  • Unladen weight: 3.8kg
  • Standard weight: 2.5kg
  • Max.load: 5kg
  • Endurance: 50min@no load, 35min@1kg
  • Endurance: 20min@2.5kg,8min@5kg
  • Working temperature: -20°C~60°C
  • Working humidity: 10%~90% non-condensing
  • Protection class: lP54
  • Electromagnetic interference: 100A/m (Industrial Frequency Magnetic Field)
  • Elevation gain: 5000m
  • Max. flight speed: 25m/s
  • Battery: 14000mAh*1
Remote control
  • Screen: 5.5 inches
  • Storage: ROM 16GB + expandable (up to 128G)
  • Video output interface: HDMI
  • Built-in battery: Lithium-ion(4800mAh-7.2V)
  • Charging mode: support 12V/9V/5V
  • Working ambient temperature: -10~60°C
  • Charging time: 2.5h (using a 9V USB charger)
  • Charging ambient temperature: 0-40°C
  • Rating: 20W
  • Endurance: 4h
FPV glasses
  • Screen resolution: 720P/1080P
  • Support customization
  • Screen material: LCD
  • Power input: 7-26V(2-6s)
  • Video input interface: micro-HDMI
Chargers
  • Specification: dual 6s charger, input AC 100V-240V,AC 200W
  • Use of working temperature: 0~40°C
  • Dimension: 135*105*68mm
  • Weight: 580g
Flight battery
  • Battery string number: 6s
  • Full charge voltage: 25.8V
  • Nominal voltage: 20.88V
  • Minimum voltage: 15.6V
  • Nominal capacity: 13.8Ah
  • Typical capacity: 14.3Ah
  • Standard charge: 7A
  • Standard discharge: 42A
  • Instantaneous discharge: 98A
  • Weight: 942g±10g
