6 Lead Wire STEPPER MOTOR NEMA 14 35MM
6 Lead Wire STEPPER MOTOR NEMA 14 35MM
Specifications
Brand Name :
CRL
Model Number :
NEMA 14(35MM)
Certification :
CE /RoHs
Place of Origin :
CHANGZHOU, JIANGSU, P. R. CHINA
MOQ :
1000
Price :
USD 10
Payment Terms :
T/T
Supply Ability :
1 million units per month
Delivery Time :
30 working days upon order
Packaging Details :
100 units per carton
material :
Steel
Description

STEPPER MOTOR-NEMA 14(35MM)

Our main products includes stepper motors, closed loop system, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplies, and other accessories. Please check our data sheets.

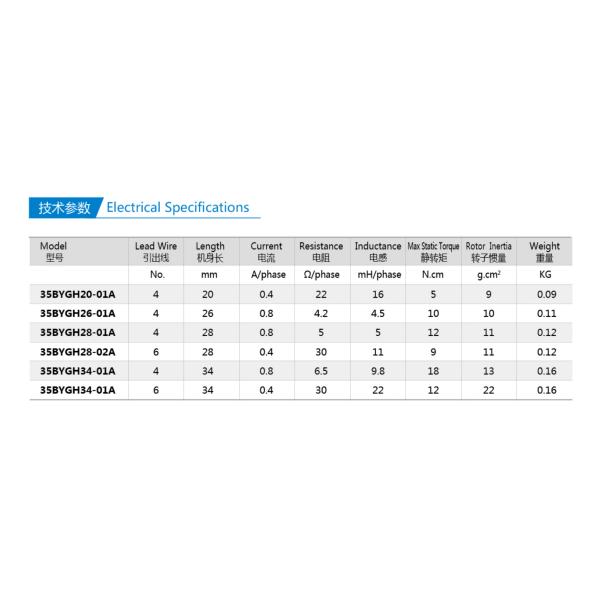

Electical Performance
Step Accuracy ±5%
Temoperature 85℃Max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩMin 500VC DC
Dielectric Strength 500VAC 1 minute

6 Lead Wire STEPPER MOTOR NEMA 14 35MM

6 Lead Wire STEPPER MOTOR NEMA 14 35MM
