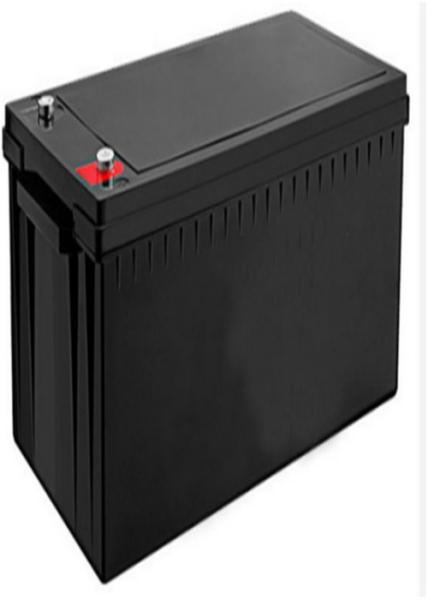

Compact Lithium Ion Battery Components , Lifepo4 Motorcycle Battery FT-32LFP-12.8V200AH
Compact Lithium Ion Battery Components , Lifepo4 Motorcycle Battery FT-32LFP-12.8V200AH
Compact Lithium Ion Battery Components , Lifepo4 Motorcycle Battery FT-32LFP-12.8V200AH
Compact Lithium Ion Battery Components , Lifepo4 Motorcycle Battery FT-32LFP-12.8V200AH
Compact Lithium Ion Battery Components , Lifepo4 Motorcycle Battery FT-32LFP-12.8V200AH
Compact Lithium Ion Battery Components , Lifepo4 Motorcycle Battery FT-32LFP-12.8V200AH
Specifications
Brand Name :
FORZATEC
Model Number :
FT-32LFP-12.8V200AH
Certification :
CE&ROHS
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T
Supply Ability :
10,000 PER MONTHS
Delivery Time :
15 DAYS
Packaging Details :
CARTON AND PALLETS
Nominal Voltage :
12.8V
Nominal Capacity :
200Ah@0.2C
Energy :
2560Wh
Internal Resistance :
35≤mΩ
Dimension(L*W*H*TH) :
522*238*218*220mm
Weight :
Approx. 27Kg
Description

FT-32LFP-12.8V200AH UPS Solar &Wind power system Golf Cart Solar Strret LED Lighting

Features

◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature

◆ Maintenance free

◆ Internal cell balancing

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set)

◆ Wider temperature range:-20℃~60℃

Application

◆ UPS

◆ Solar &Wind power system

◆ Golf Cart

◆ Electric vehicle , E-bike, E-rickshaw e.g.

◆ Lighting

General Specifications

Electrical Characteristics

 Nominal Voltage 12.8V
Nominal Capacity 200Ah@0.2C
Energy 2560Wh
Internal Resistance 35≤mΩ
Cycle Life >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
Months Self Discharge ≤3.5% per month at 25℃

Standard Charge

 Charge Voltage 14.6±0.2V

Charge Mode(CC/CV)

 At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A.
Charger Current 40A
Max.Charge Current 100A

Standard Discharge

 Discharge Current 40A
Max. Continuous Current 100A
Max.Pulse Current 200A(<3S)
Disxcharge Cut-off Voltage 10.0V

Environmental

 Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Disxcharge Temperature -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance IP55

Mechanical

 Cell & Method IFR32700 N60,4S34P
Plastic Case ABS

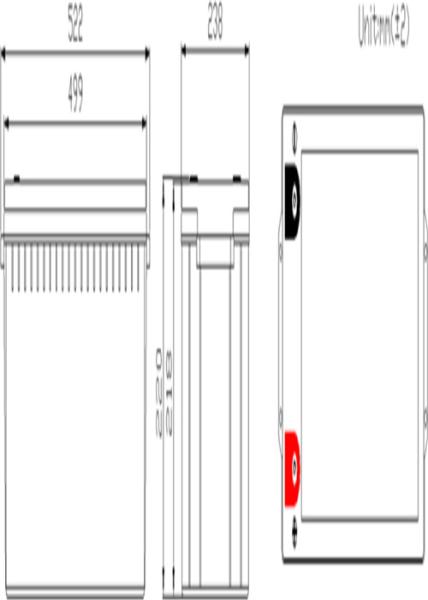

Dimension(L*W*H*TH) 522*238*218*220mm
Weight Approx. 27Kg
Terminal M8
