Specifications
Brand Name :
Forsentek
Model Number :
FGT
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal in advance
Supply Ability :
2200pcs/month
Delivery Time :
3-10 working days
Packaging Details :
1pc/box
Keyword :
DIN Rail Load Cell Transmitter
Output :
-10-10V/4-20mA
Power :
12~26V DC
Interface :
RS485
Description

DIN Rail Mount Load Cell Display Unit | DIN Rail Force Meter Digital Indicator

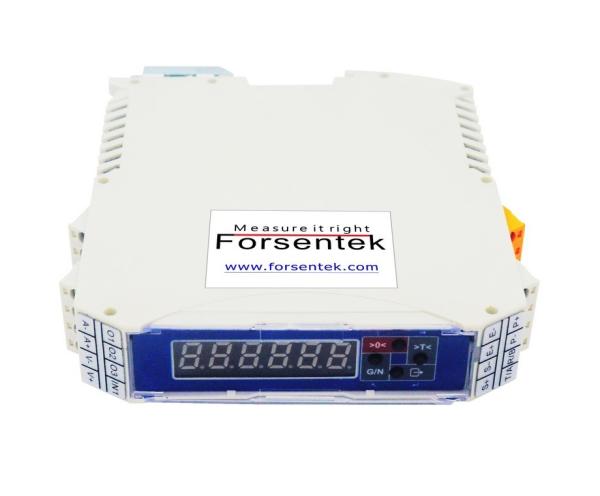

The FGT load cell readout is a multifunctional signal conditioning device designed for seamless integration with load cells and force transducers that deliver mV/V output signals. Housed in a compact 35mm DIN rail mount enclosure, digital indicator FGT is ideal for control panels and industrial automation systems. It operates within a flexible power supply range of 12V to 26V DC, making it compatible with various industrial setups. Its 1500V isolation voltage ensures protection against electrical noise and interference, contributing to stable performance even in demanding environments. The unit features a high-visibility digital display with a measurement range from -99999 to +999999, allowing for accurate real-time force monitoring.

DIN Rail Mount Load Cell Display Unit | DIN Rail Force Meter Digital IndicatorDIN Rail Mount Load Cell Display Unit | DIN Rail Force Meter Digital Indicator

Additionally, the FGT load cell transmitter supports both analog and digital outputs, offering ±10V and 4-20mA analog signals, along with an RS485 communication interface for system integration. The adjustable A/D conversion rate between 6Hz and 1600Hz gives users control over the balance between measurement speed and stability. This flexibility makes the FGT well-suited for diverse industrial applications, including process control, force testing, and monitoring tasks. By combining signal amplification, data display, and communication functions into a single compact module, the FGT offers a reliable and efficient solution for precise force measurement and control in industrial environments.

Dimensions

DIN Rail Mount Load Cell Display Unit | DIN Rail Force Meter Digital Indicator

Specifications

Isolation voltage 1500V
Power supply 12~26V DC DC
Power consumption <2W
ADC 24 bit
A/D rate 6~1600Hz (Settable)
Non-linearity <0.01% F.S.
Analog output -10-10V,4-20mA
Communication interface RS485
1-Input PNP, for zero resetting
3-Output NPN, 500mA, passive output
Excitation for load cell 5V DC
Applicable sensitivity <4.0mV/V
Display range -99999...+999999
Working temperature 0...+50oC
Gain drift <10PPM/oC
Material of housing ABS
Ingress protection IP20
Net weight 0.13kg

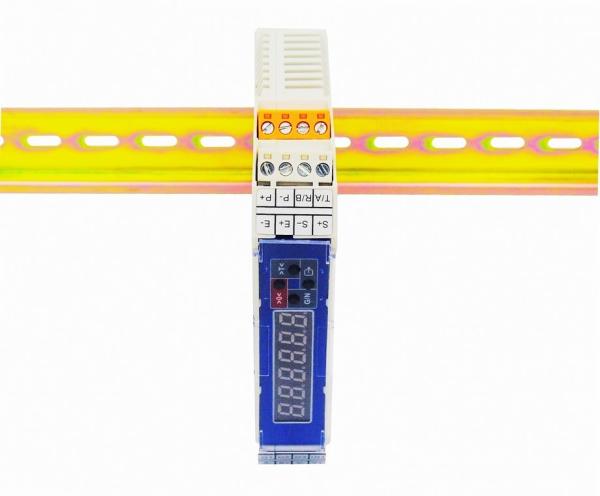

Installation

35mm DIN rail

DIN Rail Mount Digital Indicator For Load Cells And Force Sensors

DIN Rail Mount Load Cell Display Unit | DIN Rail Force Meter Digital Indicator

​Click here to download datasheet
