35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA
35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA
35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA
35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA
35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA
35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA
35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA
35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA
Specifications
Brand Name :
Forsentek
Model Number :
FSD
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal in advance
Supply Ability :
2700pcs/month
Delivery Time :
3-10 working days
Packaging Details :
1pc/box
Keyword :
Load Cell Signal Conditioner
Output :
-10-10V/4-20mA/0-20mA
Input :
1.0mV/V~3.0mV/V
Power :
12~26V DC
Description

35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA

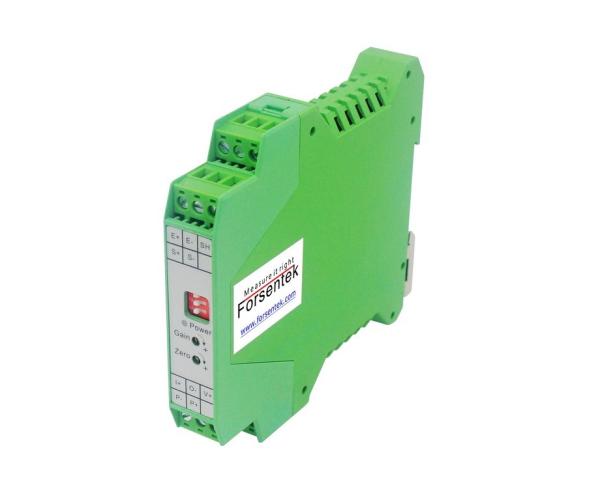

The FSD DIN rail amplifier is a highly adaptable signal conditioner designed to convert the low-level millivolt signals generated by load cells and force sensors into standard industrial outputs of ±10V or 4-20mA. This functionality simplifies integration with control systems, data acquisition units, and PLCs in various industrial environments. With its DIN rail mounting design, the FSD fits easily into control cabinets, making it suitable for automation and monitoring setups. It supports a broad input voltage range from 12V to 24V DC while maintaining a low power consumption of under 1.2W, ensuring energy-efficient operation in demanding applications.

35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA

In addition to its robust electrical design, the FSD amplifier offers a selectable bandwidth feature that allows users to switch between 100Hz and 3kHz, depending on whether stable signal measurement or dynamic force tracking is needed. It boasts a high isolation voltage of 1500V, providing effective protection against electrical interference and ensuring the safety of connected devices. For calibration, the amplifier includes accessible “Zero” and “Gain” adjustment potentiometers, making setup straightforward without the need for special tools. The FSD amplifier delivers reliable performance for both tension and compression force measurements, making it a dependable solution for a wide range of industrial force sensing applications.

Dimensions

35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA

Specifications

Function Turn mV signal into V or mA signal
Accuracy 0.1%
Isolation voltage 1500V
Power supply 12~26V DC DC
Power consumption <1.2W
Output signal -10-10V,4-20mA,0-20mA
Excitation for load cell 5V DC
Applicable sensitivity 1.0mV/V~3.0mV/V
Bandwidth 100Hz/3kHz
Working temperature 0...+50oC
Material of housing Plastic
Ingress protection IP20
Net weight 0.1kg

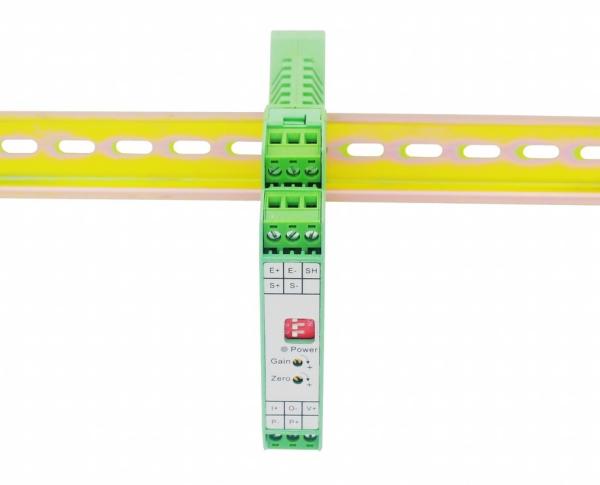

Installation

35mm DIN rail

Load Cell DIN Rail Mount Amplifier -10-10V 4-20mA 0-20mA

35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA35mm DIN Rail Mount Load Cell Signal Amplifier -10-10V 4-20mA

​Click here to download datasheet
