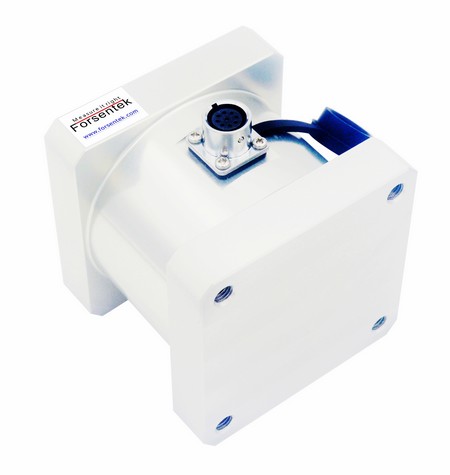

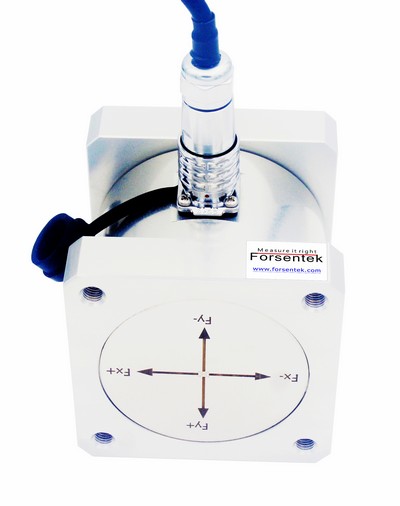

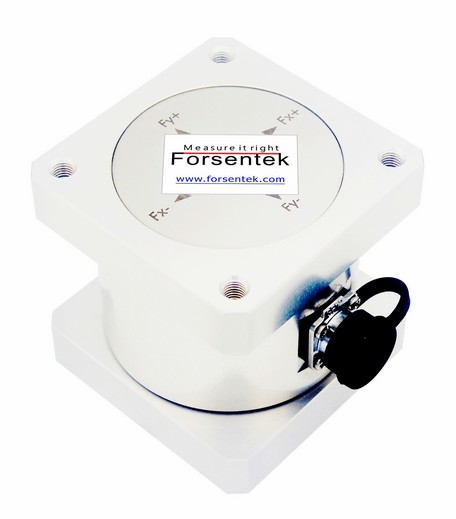

Flange-to-Flange Multi-Axis Load Cell 0-11kN Triaxial Force Sensor

The F3Y is a compact force measurement solution engineered for simultaneous load detection along three perpendicular axes in a single sensor body. Designed as a high-performance multi-axis force sensor and precision 3-axis load cell, it captures Fx, Fy, and Fz at the same time, giving engineers a complete view of force behavior without the complexity of installing several separate sensors. Its rigid flange-to-flange construction provides strong structural integrity, dependable mounting, and stable output in test systems where installation space is limited. To support a wide range of medium-capacity applications, the F3Y is available in Fx-Fy-Fz rated capacities of 0.5kN-0.5kN-1.5kN, 1kN-1kN-3kN, 2kN-2kN-5kN, 3kN-3kN-8kN, and 4kN-4kN-11kN. This makes it an excellent fit for laboratory testing, product development, and industrial force monitoring tasks that require accurate multi-directional measurement.

Developed for advanced analysis in demanding environments, the F3Y also functions as a reliable triaxial force sensor and high-accuracy 3d load cell for applications involving complex load evaluation. It is widely used in robotics, aerospace testing, wind tunnel research, structural verification, and dynamometer-based systems where repeatable and precise force data is critical. Every unit is individually calibrated and delivered with a calibration certificate to ensure measurement consistency. The F3Y can also serve as a replacement for the Futek MTA400, offering a practical alternative for compatible force measurement setups. For projects with unique technical requirements, custom capacities, dimensional changes, and structural modifications are available to support smooth integration into specialized systems.

Specifications

Flange-to-Flange Multi-Axis Force Sensor 0-11kN Triaxial Load Cell

Click here to download datasheet
