Rod End Load Cell 5 klb 10 klb 20 klb To Replace Futek LCB450
Rod End Load Cell 5 klb 10 klb 20 klb To Replace Futek LCB450
Rod End Load Cell 5 klb 10 klb 20 klb To Replace Futek LCB450
Rod End Load Cell 5 klb 10 klb 20 klb To Replace Futek LCB450
Rod End Load Cell 5 klb 10 klb 20 klb To Replace Futek LCB450
Rod End Load Cell 5 klb 10 klb 20 klb To Replace Futek LCB450
Rod End Load Cell 5 klb 10 klb 20 klb To Replace Futek LCB450
Rod End Load Cell 5 klb 10 klb 20 klb To Replace Futek LCB450
Specifications
Structure :
Rod End Force Sensor
Model Number :
FLXN
Usage :
Force measurement
Brand Name :
Forsentek
Thread :
1-14 UNS
Price :
399usd/pc
Packaging Details :
Carton
Supply Ability :
2715pcs/month
Delivery Time :
4-5 working weeks
Payment Terms :
T/T,Western Union or Paypal
Capacity :
5 klb 10 klb 20 klb
Place of Origin :
China
Force direction :
Tension and compression
MOQ :
1pc
Description

Rod End Load Cell 5 klb 10 klb 20 klb For Cylinder And Actuator Thrust Measurement

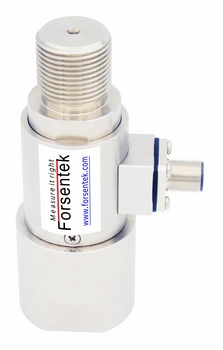

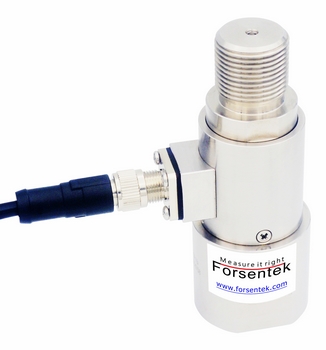

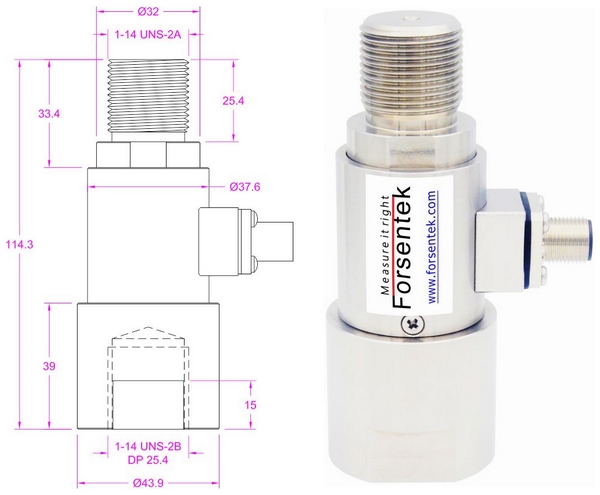

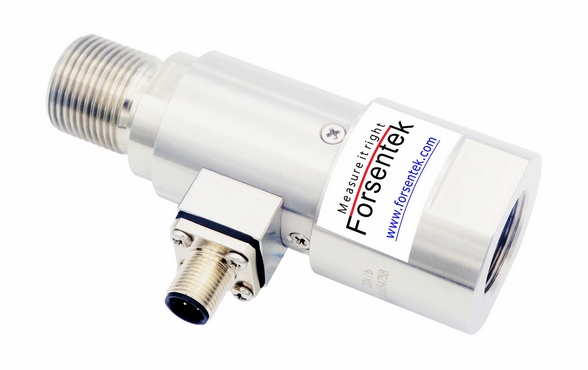

The FLXN is a compact rod end force sensor designed for precise inline force monitoring in hydraulic actuators, mechanical linkages, and motion transmission systems. As a robust rod end load cell, it is engineered to be installed directly within actuator rods through its 1-14 UNS male and female threaded interfaces, allowing seamless integration without altering system geometry. Its true inline force path ensures accurate axial measurement of thrust and tension while maintaining alignment stability, making it highly suitable for applications where consistent force feedback and structural neutrality are critical.

Rod End Load Cell 5 klb 10 klb 20 klb To Replace Futek LCB450Rod End Load Cell 5 klb 10 klb 20 klb To Replace Futek LCB450
Serving as a reliable thrust load cell and thrust force sensor, the FLXN delivers dependable performance in both tension and compression measurement. Available in 5 klb, 10 klb, and 20 klb capacities, it supports a wide range of industrial and testing requirements, from overload protection to closed-loop actuator control. Built from high-strength stainless steel, it provides excellent resistance to harsh environments, vibration, and long-term mechanical stress. The design also supports drop-in replacement for FUTEK LCB450 models, offering a practical upgrade path. Each unit is supplied with an in-house calibration report to ensure consistent accuracy, and customization options are available for mounting configurations or system-specific integration needs, making it a versatile solution for demanding force measurement applications.

Rod End Load Cell 5 klb 10 klb 20 klb To Replace Futek LCB450

Specifications

Capacity

5klb 10klb 20klb
Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.03mV/V
Nonlinearity ±0.5% of full capacity
Hysteresis ±0.5% of full capacity
Nonrepeatability ±0.1% of full capacity
Creep(3min) ±0.2% of full capacity
Safe overload 150% of full capacity
Ultimate overload 200% of full capacity
Compensated temperature 0...+60oC
Operating temperature -20...+80oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.03% R.O./oC
Input resistance 380±30 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø3.3*3000mm 4-core shielded
Wiring code @ Tension

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

Rod End Load Cell 5 klb 10 klb 20 klb For Cylinder And Actuator Thrust Measurement

Rod End Load Cell 5 klb 10 klb 20 klb To Replace Futek LCB450

Click here to download datasheet
