Stainless S type Tension Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN
Stainless S type Tension Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN
Stainless S type Tension Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN
Stainless S type Tension Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN
Stainless S type Tension Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN
Stainless S type Tension Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN
Stainless S type Tension Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN
Stainless S type Tension Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN
Stainless S type Tension Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN
Stainless S type Tension Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN
Specifications
Brand Name :
Forsentek
Model Number :
FSRT
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
4100pcs/month
Delivery Time :
4~25 working days
Packaging Details :
Carton
Usage :
Tension compression force measurement
Theory :
Universal s beam force sensor
Output :
Analog Sensor
Capacity :
0.5t 1t 2t 3t 4t 5t 6t 7.5t
Material :
Stainless steel
Description

Stainless S type Tension Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN

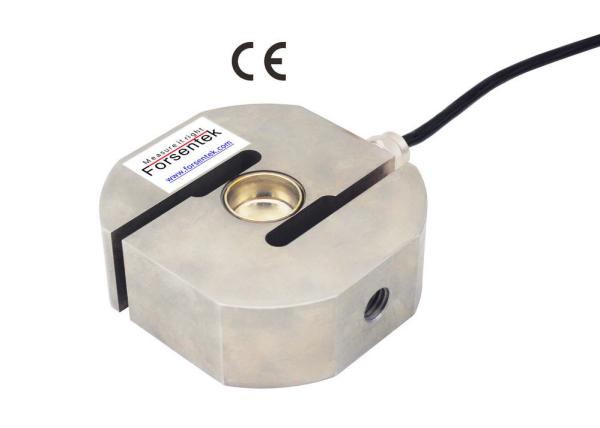

S-beam Tension Compression Load Cell FSRT is a compact stainless steel load cell suitable for both tension and compression load measurement. S Type Load Cell FSRT offers 0-500kg / 0-1000kg / 0-2000kg / 0-3000kg / 0-4000kg / 0-5000kg / 0-6000kg / 0-7500kg eight measuring ranges to choose from. Unified 2.0mV/V output,high accuracy with 0.02% combined error of the rated capacity.Ideal for harsh environments, it’s fully welded stainless steel and sealed to IP68. Suitable for asphalt, concrete, and aggregate batching plants. Other popular uses include power line tensioning, underground cable pulling and hanging tanks, hopper scales.

Stainless S type Tension Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN

Dimensions

Stainless S type Tension Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN

Specifications

Capacity

500kg / 5kN / 1.1k lb

1000kg / 10kN / 2.2 klb

2000kg / 20kN / 4.4klb

3000kg / 30kN / 6.6k lb

4000kg / 40kN / 8.8klb

5000kg / 50kN / 11klb

6000kg / 60kN / 13 klb

7500kg / 75kN / 16.5klb
Rated output 2.0 mV/V
Excitation 3-15V
Zero balance ±0.03mV/V
Nonlinearity ±0.017% R.O.
Hysteresis ±0.017% R.O.
Nonrepeatability ±0.01% R.O.
Creep(30min) ±0.017% R.O.
Safe overload 150% F.S.
Ultimate overload 300% F.S.
Compensated temperature -10...+40oC
Operating temperature -35...+65oC
Temperature shift zero ±0.02% R.O./10oC
Temperature shift span ±0.02% R.O./10oC
Input resistance 350±5 ohms
Output resistance 350±3 ohms
Insulation resistance >5000M ohms
Ingress protection IP68
Material of element Stainless steel
Cable

500kg---Ø5*3000mm

1000kg~7500kg---Ø5*6000mm

4-core shielded cable
Wiring code

Red--Exc+ Black--Exc-
Green---Sig+ White--Sig-

IP68 S type Tension And Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN

Stainless S type Tension Compression Load Cell 75kN 60kN 50kN 30kN 20kN 10kN 5kN

Click here to download datasheet
