Multi-axis Sensor 100N 50N 20N 10N Fx Fy Fz 3-axis Force Measurement Transducer

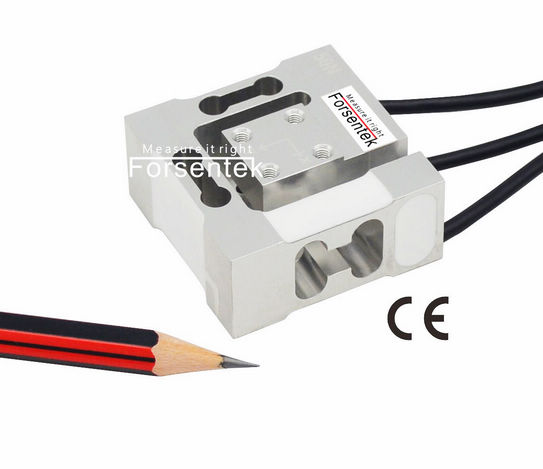

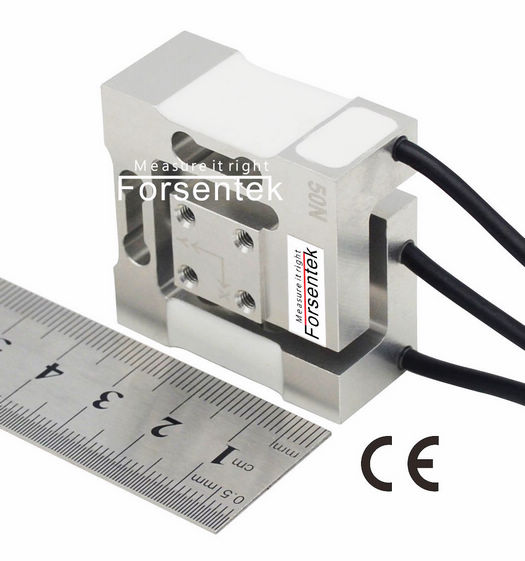

Miniature 3-axis sensor FNZ is made of aluminum based on strain gauge technology offering 0-10N / 0-20N / 0-50N / 0-100N four measuring ranges for all three axes,each axis is capable of measuring force in both tension and compression direction. Multi-axis Load Cell FNZ utilizes independent wheatstone full bridge for each axis to deliver mV/V output which proportional to the applied force and requires no mathematical manipulation,3-channel signal amplifier LC3A can be used to convert the mV signal into 0-5V / 0-10V / 4-20mA output. Taking FNZ-100N and LC3A(-10-10V)-24V for example,the load-voltage relationship will be 0-100N load in Fx+/Fy+/Fz+ direction VS 0~10V output, 0-100N load in Fx-/Fy-/Fz- direction VS 0~(-10V) output.Typical applications for this type of transducer are for example friction force measurement, force control in robotics,force simulators, force monitoring in handing devices,industrial test benches,etc..

Multi-axis Sensor 100N 50N 20N 10N Fx Fy Fz 3-axis Force Measurement Transducer

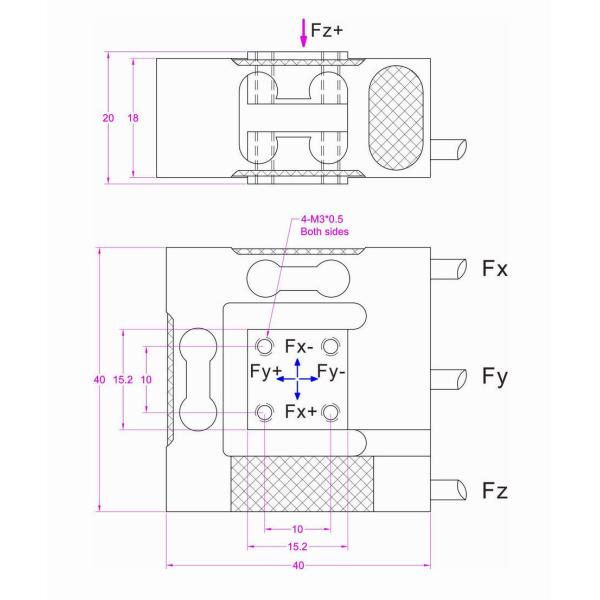

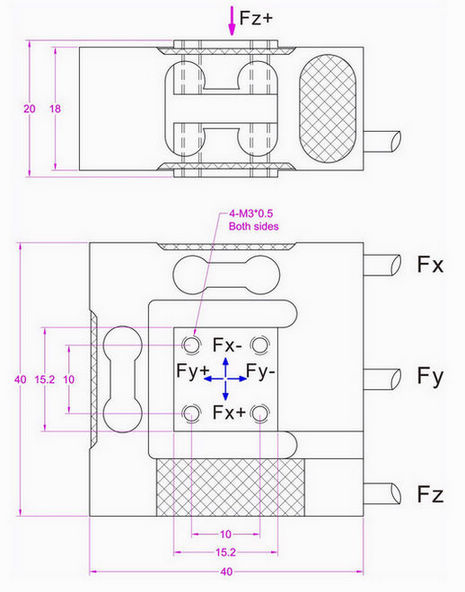

Dimensions

Multi-axis Sensor 100N 50N 20N 10N Fx Fy Fz 3-axis Force Measurement Transducer

Specifications

Capacity

10N / 1kg / 2.2lb

20N / 2kg / 4.4 lb

50N / 5kg / 11lb

100N / 10kg / 22lb
Rated output 1.0mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1% R.O.
Creep(2min) ±0.2% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Operating temperature -10...+50oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Aluminum alloy
Cable

Ø3*2000mm 4-core

(For each axis)
Wiring code

Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

3-axis Force Transducer 100N 50N 20N 10N Fx Fy Fz Multi-axis Force Measurement Sensor

Multi-axis Sensor 100N 50N 20N 10N Fx Fy Fz 3-axis Force Measurement Transducer

Click here to download datasheet
