Specifications
Brand Name :
Forsentek
Model Number :
FS12
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
1000pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Usage :
Load cell for force gauges
Theory :
Resistance Sensor
Output :
Analog Sensor
Load direction :
Tension and compression
Capacity :
10N/20N/50N/100N/200N/300N/500N
Description

25lb Parallelogram Load Cell replacement for Futek LSM300 FSH03977

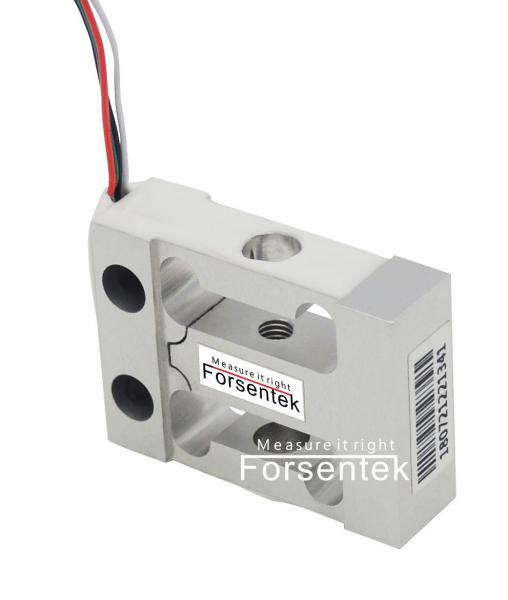

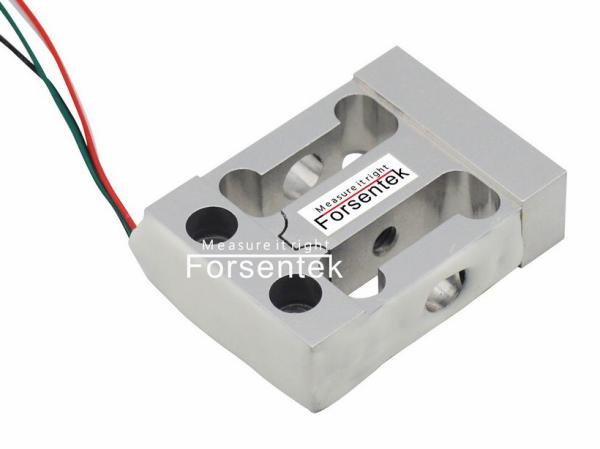

The FS12 Precision Load Cell also known as the Belt Buckle Load Cell offers an impressive lightweight design with an easy side mounting feature making it ideal for OEM applications. Utilized in both Tension and Compression.Compact load cell FS12 is made of aluminum using metal foil strain gauge technology to deliver maximum 0.05% non-linearity,available force ranges are 10N/20N/50N/100N/200N/300N/500N.Parallelogram Load Cell FS12 is offered as an accurate and cost-effective replacement for FUTEK LSM300 series load cells.

25lb Parallelogram Load Cell replacement for Futek LSM300 FSH03977

Specifications

Capacity 10N 20N 50N 100N 200N 300N 500N
Rated output 1.0 mV/V
Excitation 3-12V
Zero balance ±0.05mV/V
Nonlinearity ±0.05% R.O.
Hysteresis ±0.05% R.O.
Nonrepeatability ±0.02% R.O.
Creep(5min) ±0.03% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.05% R.O./10oC
Input resistance 395±20 ohms
Output resistance 350±5 ohms
Insulation resistance >2000M ohms
Ingress protection IP64
Material of element Aluminum alloy
Cable AWG28*180mm
Wiring code Red--E+ Black--E- Green--S+ White--S-

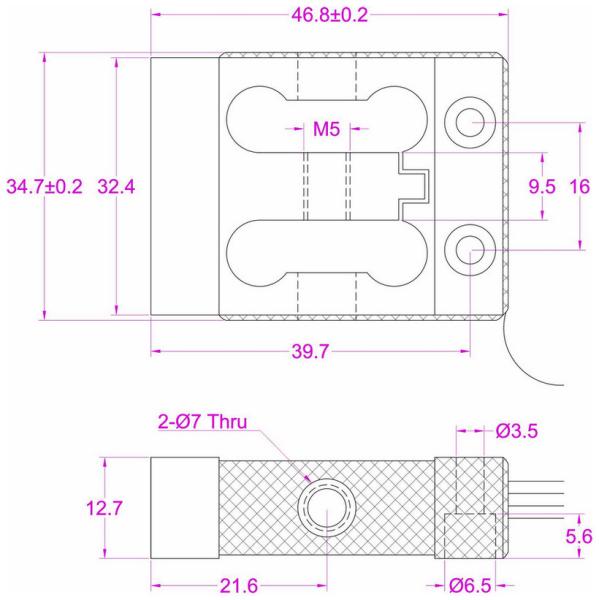

Side mounted load cell 10N 20N 50N 100N 200N 300N 500N

25lb Parallelogram Load Cell replacement for Futek LSM300 FSH03977

25lb Parallelogram Load Cell replacement for Futek LSM300 FSH03977
