Miniature load sensor 5kg 10kg 20kg 50kg Compression load measurement transducer
Miniature load sensor 5kg 10kg 20kg 50kg Compression load measurement transducer
Miniature load sensor 5kg 10kg 20kg 50kg Compression load measurement transducer
Miniature load sensor 5kg 10kg 20kg 50kg Compression load measurement transducer
Miniature load sensor 5kg 10kg 20kg 50kg Compression load measurement transducer
Miniature load sensor 5kg 10kg 20kg 50kg Compression load measurement transducer
Specifications
Brand Name :
Forsentek
Model Number :
FC10C
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
5000pcs/month
Delivery Time :
3~20 working days
Packaging Details :
Carton
Usage :
Compression force measurement
Theory :
Strain gauge load cell
Output :
Analog Sensor
Capacity :
5kg 10kg 20kg 30kg 50kg
Description

Miniature load sensor 5kg 10kg 20kg 50kg Compression load measurement transducer

Miniature compression load transducer FC10C is made of stainless steel based on metal foil stain gauge technology intended for compression force measurement.Miniature button load cell FC10C offers 0-5kgf / 0-10kgf / 0-20kgf / 0-50kgf four measuring ranges to choose from.Small size compression load cell FC10C is featured with only 10mm outer diameter and 6mm total height which makes it extremely suitable for force measurement applications with limited mounting space.Typical applications for load sensor FC10C are such as clamping force measuremen,force overload protection,load distribution analysis,pressing die force measurement,auto equipment,assembly line and so on.
Miniature load sensor 5kg 10kg 20kg 50kg Compression load measurement transducer

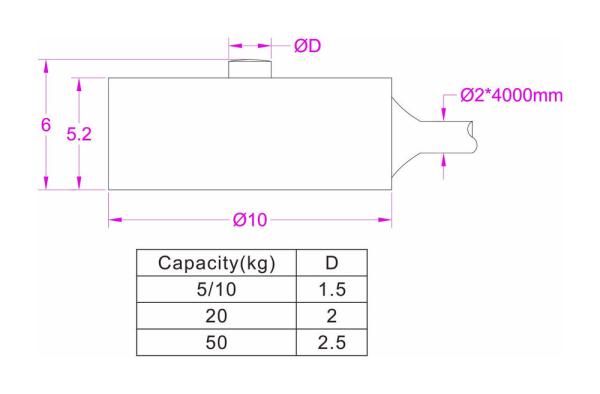

Dimensions(in "mm")
Miniature load sensor 5kg 10kg 20kg 50kg Compression load measurement transducer
Specifications

Capacity

5kg / 50N

10kg / 100N

20kg / 200N

50kg / 500N
Rated output 1.0mV/V
Excitation 3-10V
Zero balance ±0.05mV/V
Nonlinearity ±1% R.O.
Hysteresis ±1% R.O.
Nonrepeatability ±0.5% R.O.
Creep(30min) ±0.5% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./oC
Temperature shift span ±0.05% R.O./oC
Input resistance >700 ohms
Output resistance >700 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø2*4000mm
Wiring code Red--E+ Black--E- Green--S+ White--S-


Miniature load sensor 5kg 10kg 20kg 50kg Compression load measurement transducer

Miniature load sensor 5kg 10kg 20kg 50kg Compression load measurement transducer

Miniature load sensor 5kg 10kg 20kg 50kg Compression load measurement transducer
