Automative Handbrake Force Transducer Car Braking Force Measurement
Automative Handbrake Force Transducer Car Braking Force Measurement
Automative Handbrake Force Transducer Car Braking Force Measurement
Automative Handbrake Force Transducer Car Braking Force Measurement
Automative Handbrake Force Transducer Car Braking Force Measurement
Automative Handbrake Force Transducer Car Braking Force Measurement
Automative Handbrake Force Transducer Car Braking Force Measurement
Automative Handbrake Force Transducer Car Braking Force Measurement
Specifications
Brand Name :
Forsentek
Model Number :
FLXG-1kN
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
1000pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Type :
Handbrake Force Sensor
Capacity :
1000N
Usage :
Braking Force Measurement
Load Direction :
Push and Pull
Output :
Analog Sensor
Description

Automative Handbrake Force Transducer Car Braking Force Measurement

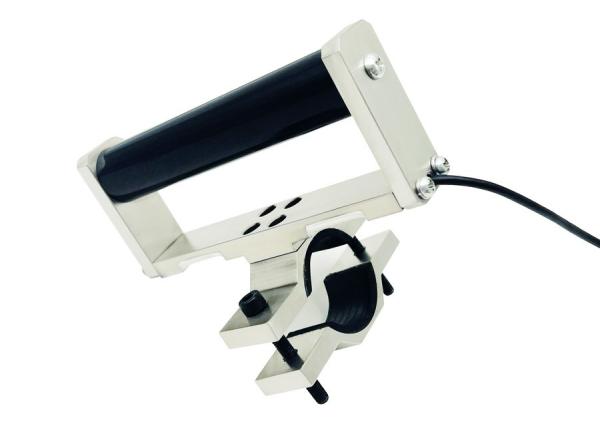

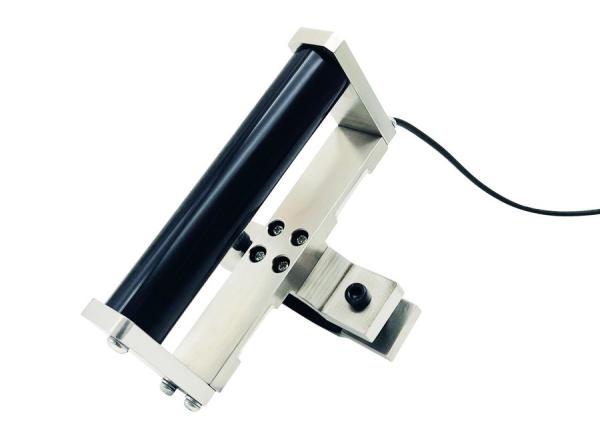

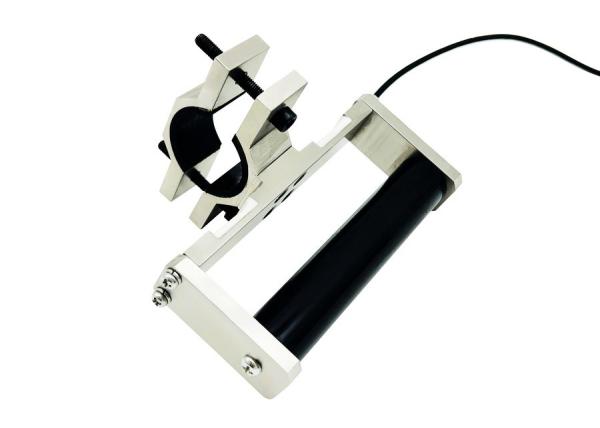

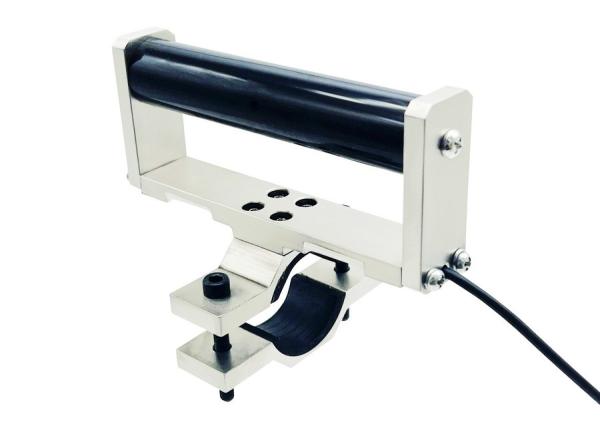

Car handbrake operating force sensor FLXG-1kN is specially designed with an integrated clamping tool which can be used to mount the transducer to a parking brake easily and measures the vertical force applied to car handbrake. Hand brake force transducr FLXG-1kN is made from stainless steel based on strain gauge technology with 1kN rated capacity, it is also applicable for force measurement in rehabilitation and sports equipment. Model FLXG-1kN can be modified or customized to suit different applications.

Automative Handbrake Force Transducer Car Braking Force Measurement

Dimensions

Automative Handbrake Force Transducer Car Braking Force Measurement


Specifications

Rated Capacity

1kN
Rated output 1.5 mV/V
Excitation 3-15V
Zero balance ±0.1mV/V
Nonlinearity ±0.3% of rated capacity
Hysteresis ±0.3% of rated capacity
Nonrepeatability ±0.1% of rated capacity
Creep(3min) ±0.05% of rated capacity
Safe overload 150% of rated capacity
Ultimate overload 180% of rated capacity
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift zero ±0.03% of R.O./oC
Temperature shift span ±0.03% of R.O./oC
Input resistance 750±50 ohms
Output resistance 700±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP62
Material of element Stainless steel
Cable Ø3*3000mm 4-core shielded
Wiring code

Tension@
Red--Excitation+ Black--Excitation-

Green--Signal+ White--Signal-

Automative Handbrake Force Transducer Car Braking Force Measurement

Automative Handbrake Force Sensor Car Braking Force Measurement

Automative Handbrake Force Transducer Car Braking Force Measurement

Click here to download datasheet
