Small size load cell sensor 2kg for coffee machine weight measurement
Small size load cell sensor 2kg for coffee machine weight measurement
Small size load cell sensor 2kg for coffee machine weight measurement
Small size load cell sensor 2kg for coffee machine weight measurement
Small size load cell sensor 2kg for coffee machine weight measurement
Small size load cell sensor 2kg for coffee machine weight measurement
Small size load cell sensor 2kg for coffee machine weight measurement
Small size load cell sensor 2kg for coffee machine weight measurement
Specifications
Brand Name :
Forsentek
Model Number :
FMZT-2kg
Place of Origin :
China
MOQ :
5pcs
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
50000pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Certification :
CE
Usage :
Weight/Force measurement
Type :
Micro load sensor
Output :
Analog Sensor
Capacity :
2kg/20N/4.4lbs
Description

Small size load cell sensor 2kg weight measurement

Small size load cell sensor 2kg for coffee machine weight measurement
Features

  • Small size load cell sensor
  • High output resistance,low heat emission
  • High accuracy&low cost load sensor
  • Small weight sensor for coffee machine weight measurement
  • Custom design available

Small size load cell sensor 2kg for coffee machine weight measurement
Specifications

Capacity 2kg/20N/4.4lbs
Rated output 0.7 mV/V
Excitation 3-6V
Zero balance ±0.1mV/V
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.1% R.O.
Creep(2min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature 0...+25oC
Operating temperature -10...+40oC
Temperature shift zero ±0.2% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 1000±100 ohms
Output resistance 1000±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Aluminum alloy
Cable

AWG32*50mm
(Longer cable upon request)
Wiring code

Red--Excitation+ Black--Excitation-
Green--Signal+ White--Signal-


Miniature weight sensor 2kg small size load cell sensor FMZT-2kg
Small size load cell sensor 2kg for coffee machine weight measurement

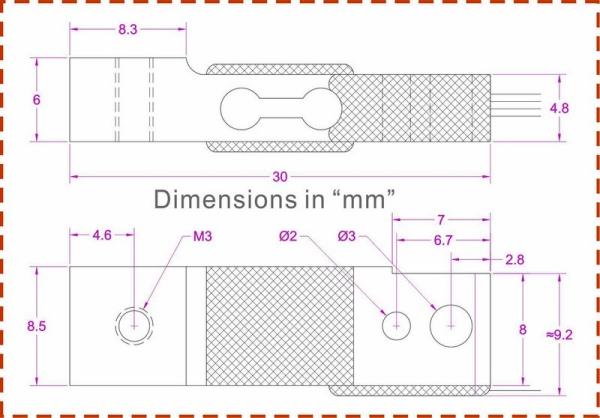

Dimensions
Small size load cell sensor 2kg for coffee machine weight measurement

Click here to download datasheet
