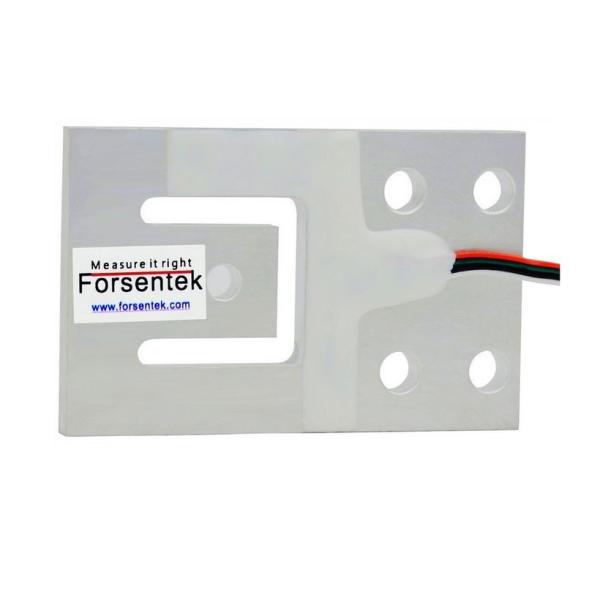

Low profile compression load cell 150 kg load cell 300kg
Low profile compression load cell 150 kg load cell 300kg
Low profile compression load cell 150 kg load cell 300kg
Low profile compression load cell 150 kg load cell 300kg
Low profile compression load cell 150 kg load cell 300kg
Low profile compression load cell 150 kg load cell 300kg
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FHA

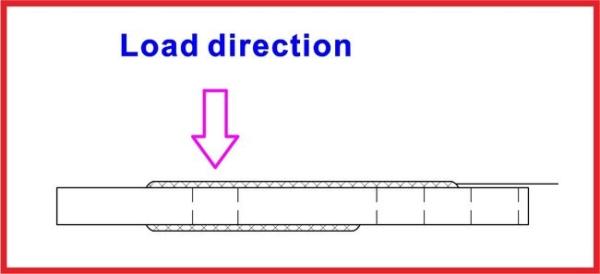

Load direction :
Compression
Capacity :
30kg/75kg/150kg/300kg
MOQ :
4pcs
Packaging Details :
Carton
Delivery Time :
3~25 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
20000pcs/month
Usage :
Load measurement/Weight measurement
Theory :
Strain gauge load cell
Output :
Analog Sensor
Description

Compression load cell 150kg load cell 300kg

Low profile compression load cell 150 kg load cell 300kg

Features

  • Aluminum construction,light weight
  • Low profile
  • Compression force measurement
  • Inexpensive load cell

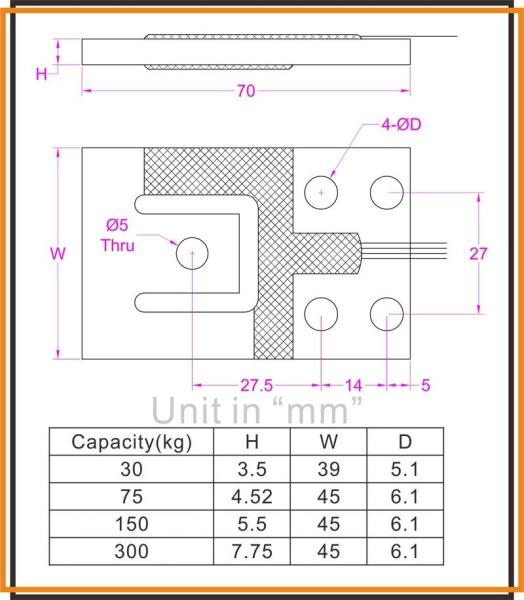

Dimensions

Low profile compression load cell 150 kg load cell 300kg

Specifications

Capacity 30kg 75kg 150kg 300kg
Rated output 1.5(2.0)±10%mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Nonlinearity ±0.05% R.O.
Hysteresis ±0.05% R.O.
Nonrepeatability ±0.05% R.O.
Creep(30min) ±0.05% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Operating temperature -10...+40oC
Temperature shift zero ±0.2% R.O./oC
Temperature shift span ±0.05% R.O./10oC
Input resistance 1120±50 ohms
Output resistance 1000±10 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable AWG30*600mm
Wiring code Red--E+ Black--E- Green--S+ White--S-
