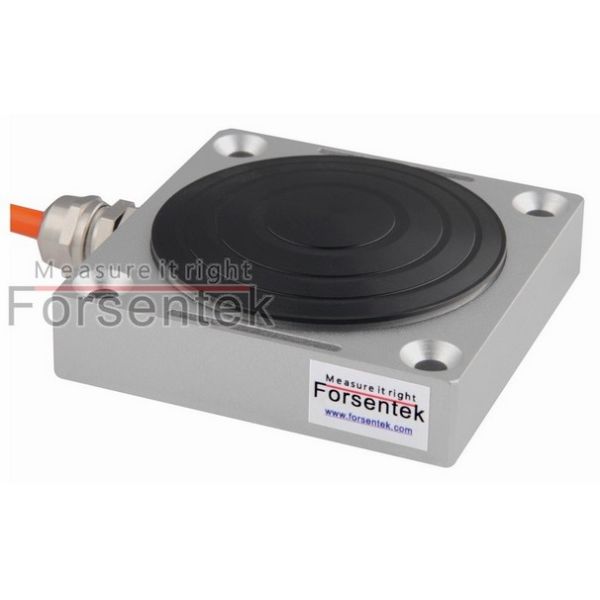

Car accelerator pedal force measurement sensor
Car accelerator pedal force measurement sensor
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FCB-B
MOQ :
1pc
Packaging Details :
Carton
Delivery Time :
3~25 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
5000pcs/month
Usage :
Accelerator pedal force measurement
Theory :
Strain gauge force sensor
Output :
Analog Sensor
Description

Car accelerator pedal force measurement sensor

Car accelerator pedal force measurement sensor

Pedal force transducer FCB-B

Car accelerator pedal force measurement sensor

Features

  • Low profile,low offer-center error.
  • 0-5V or 4-20mA output available
  • Easy to install,specially designed for car braking force measurement and accelerator pedal force measurement

Dimensions

Car accelerator pedal force measurement sensor

Specifications

Capacity 500N 1KN 2KN 2.5KN
Rated output 1.1-1.5mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.1 R.O.
Creep(30min) ±0.1 R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.05% R.O./10oC
Input resistance 700±30 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø4*1500mm
Wiring code Red--E+ Black--E- Green--S+ White--S-

Ordering Code:

FCB-B-500N, FCB-B-1KN, FCB-B-2KN, FCB-B-2.5KN

Product tags

accelerator position pedal sensor

,

pedal force sensor

,

accelerator pedal position sensor
