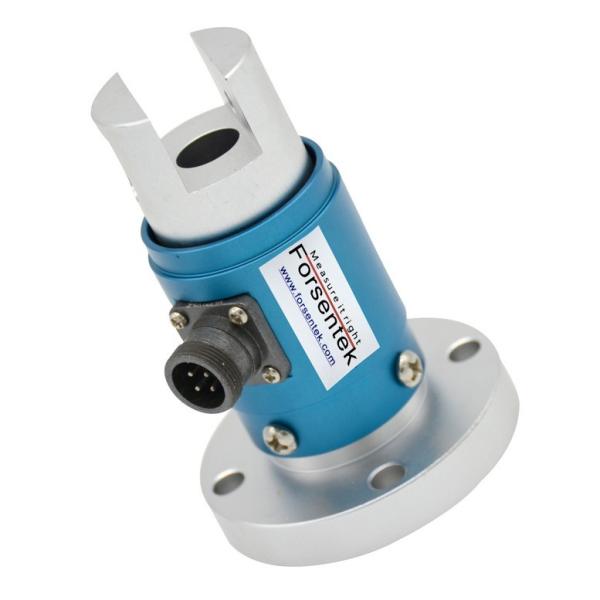

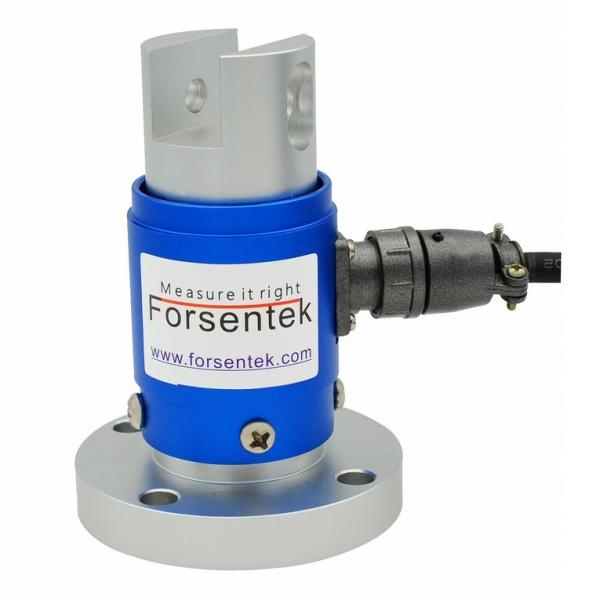

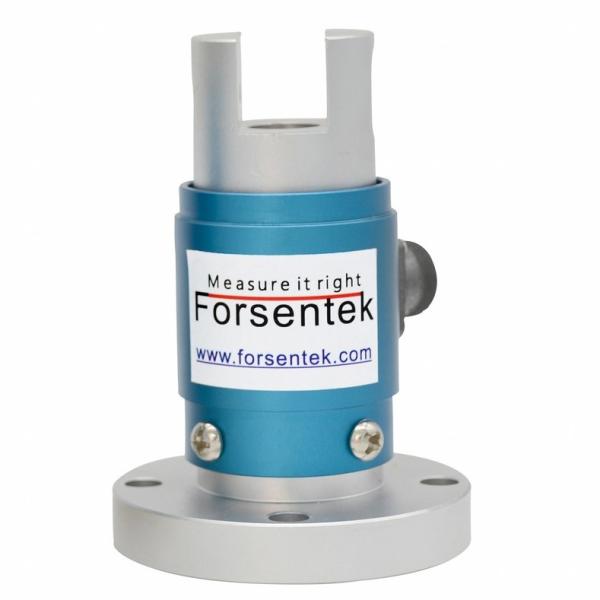

Torque load cell torque sensors measure torque
Torque load cell torque sensors measure torque
Torque load cell torque sensors measure torque
Torque load cell torque sensors measure torque
Torque load cell torque sensors measure torque
Torque load cell torque sensors measure torque
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FT02
Torque measurement direction :
Clockwise&Counterclockwise
MOQ :
1pc
Packaging Details :
1pc/box
Delivery Time :
3~20 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
1000pcs/month
Usage :
Measuring torque
Theory :
Strain gauge torque sensor
Output :
Analog Sensor
Description

Torque load cell torque sensors measure torque

Torque load cell torque sensors measure torque

Torque load cell torque sensors measure torque

Features

  • Aluminum alloy construction
  • Flange mounting,easy to install
  • Strain gauge technology,analog output
  • Static torque measurement

Dimensions

Torque load cell torque sensors measure torque

Torque load cell torque sensors measure torque

Specifications

Capacity 0.5NM 1NM 2NM 3NM 5NM 10NM 20NM 30NM 50NM 100NM
Rated output 1.0-2.0mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Nonrepeatability ±0.05 R.O.
Creep(30min) ±0.05 R.O.
Safe overload 120% F.S.
Ultimate overload 150% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP50
Material of element Aluminum alloy
Cable Ø5*3000mm
Wiring code Red--E+ Green--E- Yellown--S+ White--S-

Torque load cell torque sensors measure torque

Torque load cell torque sensors measure torque
