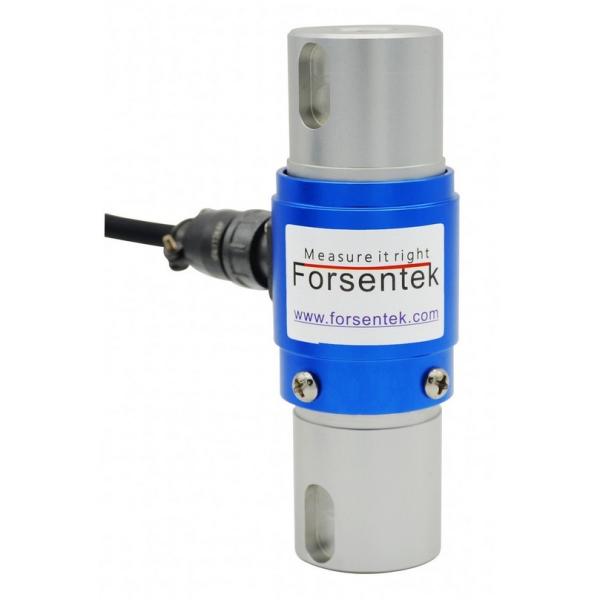

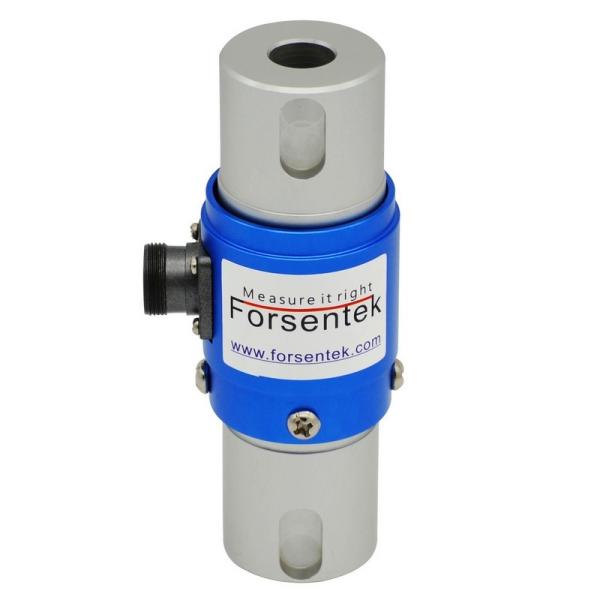

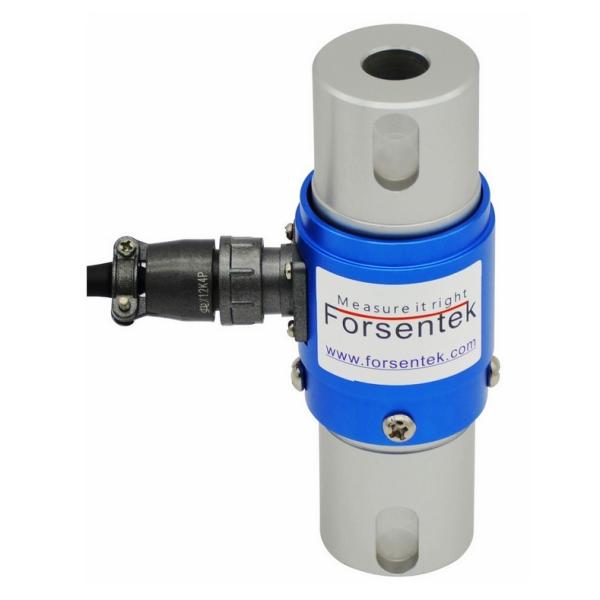

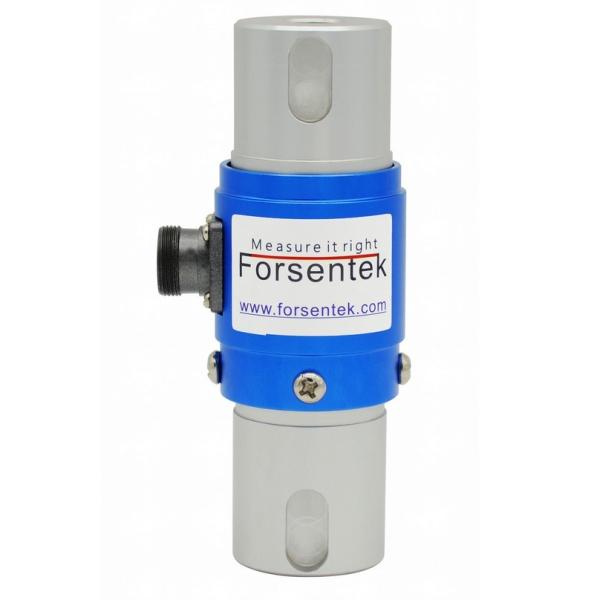

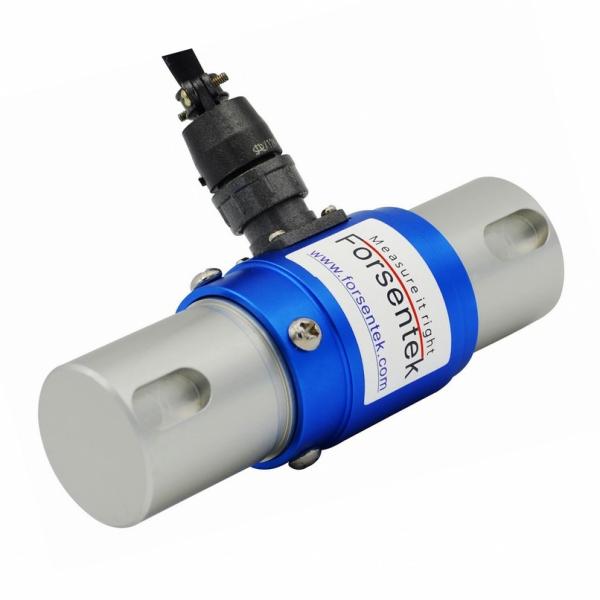

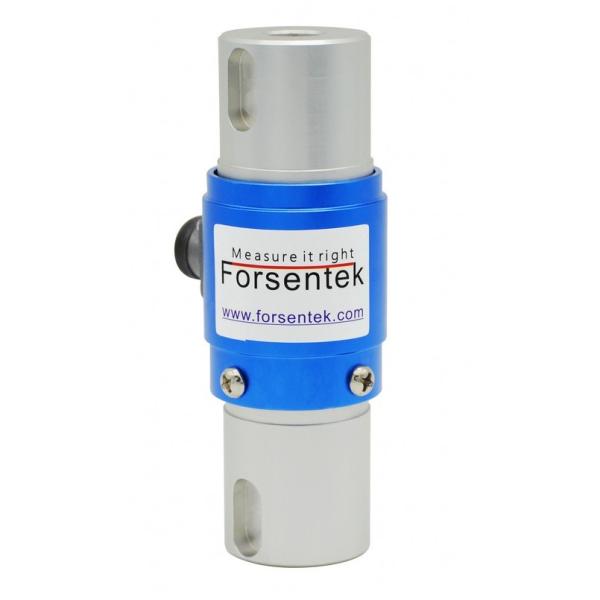

Torque load cell measuring torque
Torque load cell measuring torque
Torque load cell measuring torque
Torque load cell measuring torque
Torque load cell measuring torque
Torque load cell measuring torque
Torque load cell measuring torque
Torque load cell measuring torque
Torque load cell measuring torque
Torque load cell measuring torque
Torque load cell measuring torque
Torque load cell measuring torque
Torque load cell measuring torque
Torque load cell measuring torque
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FTB
Capacity :
0.5NM 1NM 2NM 5NM 10NM 20NM 30NM 50NM 100NM
Type :
Static torque sensor
MOQ :
1pc
Packaging Details :
Carton
Delivery Time :
3~25 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
1000pcs/month
Usage :
Torque testing
Theory :
Strain gauge torque sensor
Output :
Analog Sensor
Description

Torque load cell measuring torque

Torque load cell measuring torque

Torque load cell measuring torque

Features

  • Aluminum construction,strain gauge technology
  • Inline type,shaft to shaft structure,easy to insall.
  • Analog output,high accuracy.
  • Reaction torque measurement.

Torque load cell measuring torque

Dimensions

Torque load cell measuring torque

Torque load cell measuring torque

Torque load cell measuring torque

Specifications

Capacity 0.5NM 1NM 2NM 3NM 5NM 10NM 20NM 30NM 50NM 100NM
Rated output 1.2-2.0mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.05% R.O.
Creep(30min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.02% R.O./oC
Temp. shift span ±0.01% R.O./oC
Input resistance 350(700) ohms
Output resistance 350(700) ohms
Insulation resistance >2000M ohms
Ingress protection IP60
Material of element Aluminum alloy
Cable Ø3*3000mm
Wiring code Red--E+ Black--E- Green--S+ White--S-

Reaction torque sensor FTB

Torque load cell measuring torque

Torque load cell measuring torque

Torque load cell measuring torque
