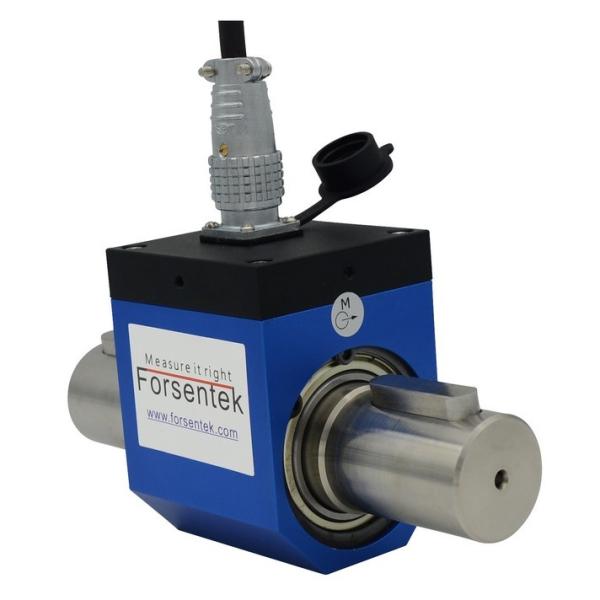

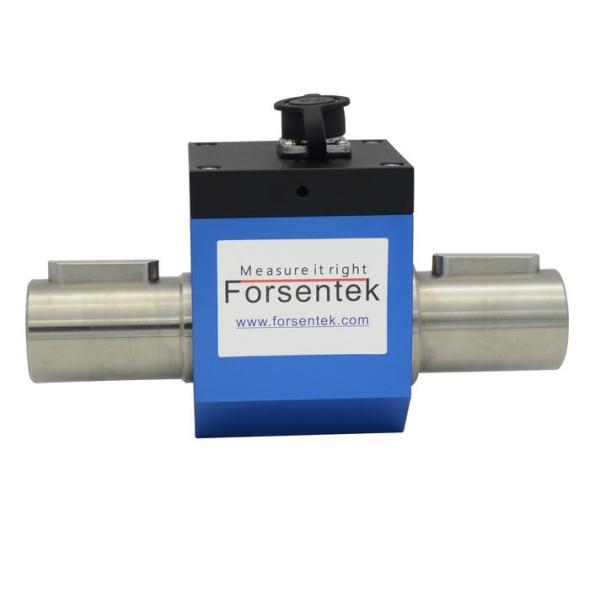

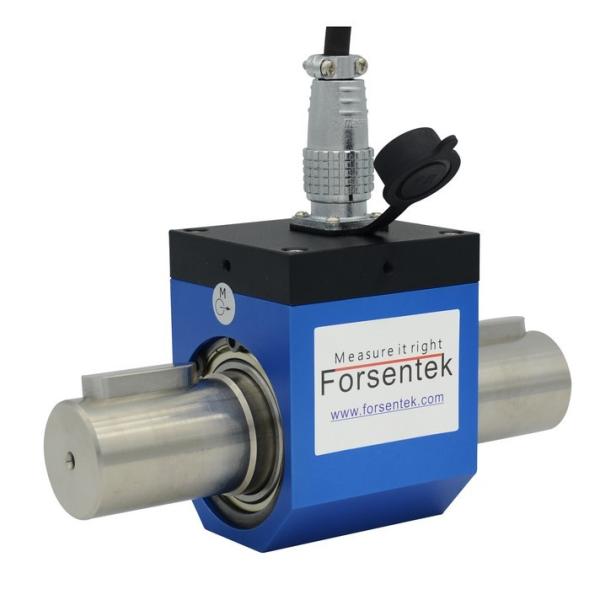

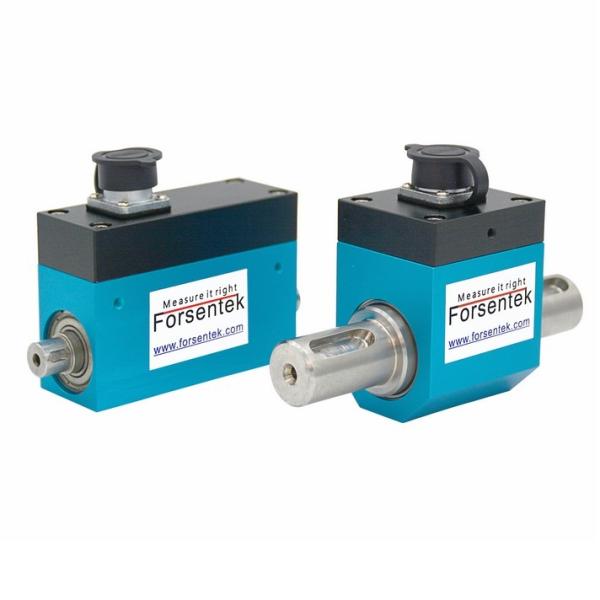

Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor
Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor
Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor
Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor
Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor
Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor
Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor
Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor
Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor
Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor
Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor
Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FY01
MOQ :
1pc
Packaging Details :
1pc/box
Delivery Time :
3~20 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
5000pcs/month
Certification :
CE
Usage :
Rotating Shaft torque measurement
Theory :
Strain gauge torque transducer
Output :
Analog Sensor
Torque measurement direction :
Clockwise&Counterclockwise
Type :
Slip-Ring Rotary Torque Transducer
Description

Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor

Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor

Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor

Features

  • CE certified
  • Strain gauge technology,analog output
  • Shaft to shaft structure
  • Both clockwise and counterclockwise measurement
  • Up to 4000 r/m
  • Rotating torque measurement,dynamic torque measuring

Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor

Dimensions

Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor

Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor

Specifications

Capacity 10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM
Rated output 1.5mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.15% R.O.
Hysteresis ±0.15% R.O.
Nonrepeatability ±0.05% R.O.
Creep(30min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 350(700) ohms
Output resistance 350(700) ohms
Insulation resistance >5000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø5*3000mm
Wiring code

Red--Exc+ Green--Exc-

Yellown--Sig+ White--Sig-

Slip-Ring Rotary Torque Transducer shaft to shaft rotary torque sensor

Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor

Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor

Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor

Slip-Ring Rotary Torque Transducer Rotary Shaft Torque Sensor
