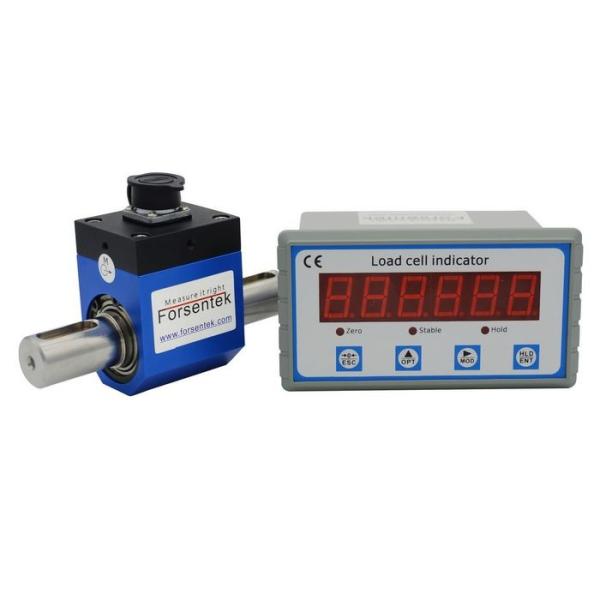

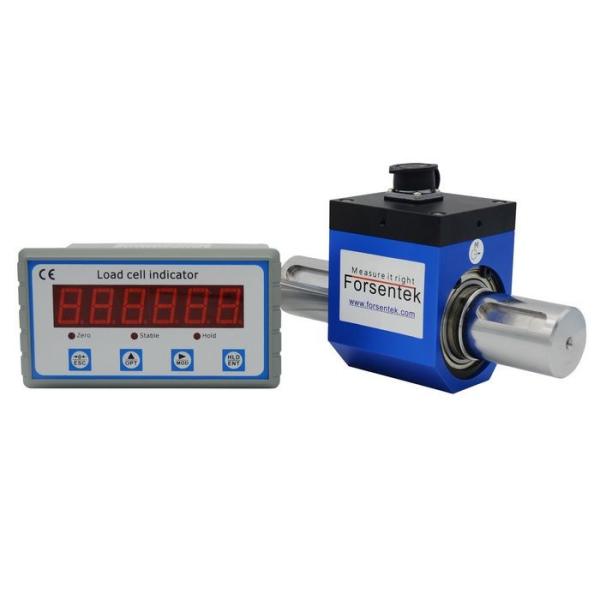

Rotating torque measurement device torque indicator
Rotating torque measurement device torque indicator
Rotating torque measurement device torque indicator
Rotating torque measurement device torque indicator
Rotating torque measurement device torque indicator
Rotating torque measurement device torque indicator
Rotating torque measurement device torque indicator
Rotating torque measurement device torque indicator
Rotating torque measurement device torque indicator
Rotating torque measurement device torque indicator
Rotating torque measurement device torque indicator
Rotating torque measurement device torque indicator
Rotating torque measurement device torque indicator
Rotating torque measurement device torque indicator
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Certification :
CE
Model Number :
Torque sensor FY01/Display FPT
MOQ :
1pc
Packaging Details :
1pc/box
Delivery Time :
3-15 working days
Payment Terms :
T/T,Western Union or Paypal in advance
Supply Ability :
2000pcs/month
Usage :
Rotaty torque measurement,torque monitor
Description

Rotating torque measurement device torque indicator

Rotating torque measurement device torque indicator

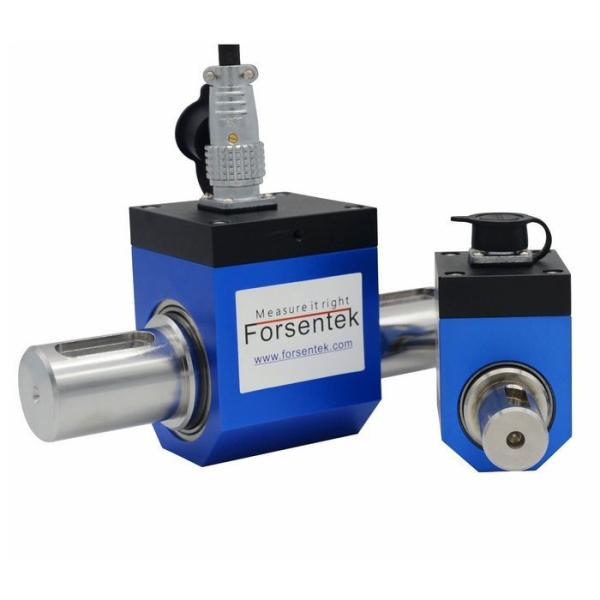

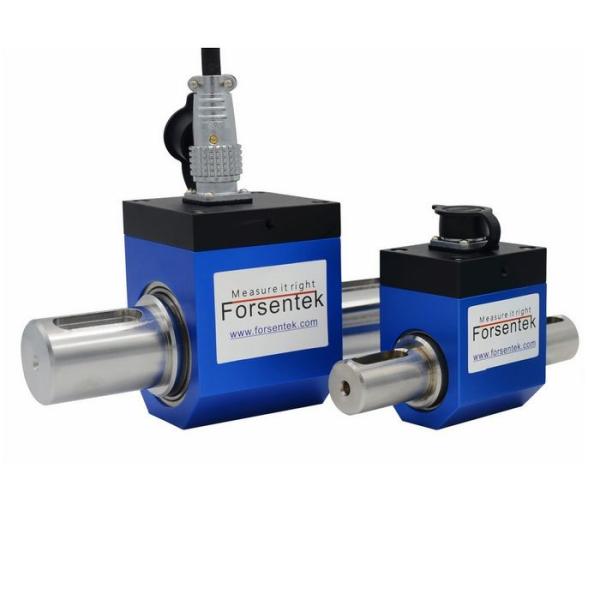

Rotary torque sensor FY01

Rotating torque measurement device torque indicator

Features

  • Strain gauge technology,analog output
  • Shaft to shaft structure,stainless steel measuring element
  • Both clockwise and counterclockwise measurement
  • Up to 4000 r/m
  • Rotating shaft torque measurement,motor torque measuring

Dimensions

Rotating torque measurement device torque indicator

Rotating torque measurement device torque indicator

Specifications

Capacity 10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM
Rated output 1.0-1.5mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.15% R.O.
Hysteresis ±0.15% R.O.
Nonrepeatability ±0.05% R.O.
Creep(30min) ±0.1% R.O.
Safe overload 120% F.S.
Ultimate overload 150% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø5.5*3000mm
Wiring code Red--E+ Green--E- Yellown--S+ White--S-

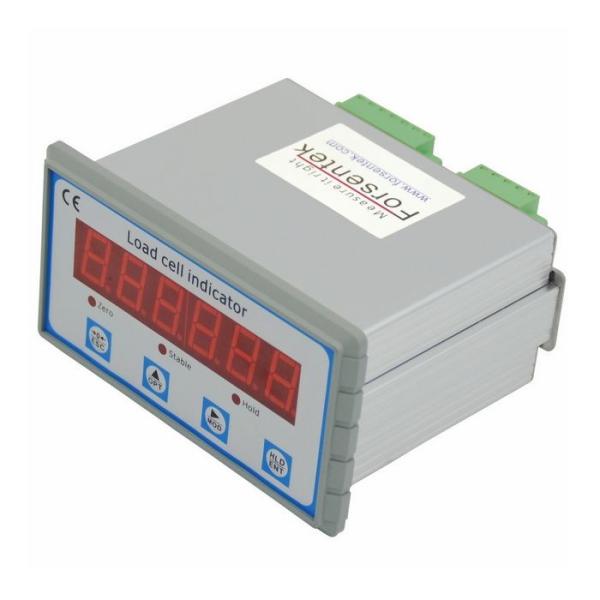

Torque indicator torque display FPT

Rotating torque measurement device torque indicator

Technical parameters

  • CE certified

  • Aluminum housing,compact size

  • 24 bit Sigma-Delta ADC,high accuracy

  • Power supply: 24V DC

  • Load cell excitation: 5V DC

  • Input range: -10mV~10mV

  • Load cell connection: 4-wire or 6-wire

  • Display range: -99999....999999

  • High sampling speed: 120Hz/480Hz/960Hz settable

  • Working temperature: -10...+40oC

  • Humidity: <90% RH without dew

  • Non-linearity: <0.01% F.S.

  • I/O: 1 input and 2 outputs

  • Communication interface: RS485 or RS232

  • Analog output: 0-5V/0-10V/0-20mA/4-20mA/User self-define

  • Zero tracking

  • Peak hold

Dimensions

Rotating torque measurement device torque indicator

Torque measurement can be done through torque sensor and torque meter,torque sensor can turn mechanical torque into analog signal which is proportional to applied torque,torque meter can display the torque value after calibrated with torque transducer.

Rotating torque measurement device torque indicator

Rotating torque measurement device torque indicator

Rotating torque measurement device torque indicator
