Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FXLT
MOQ :
1pc
Packaging Details :
Carton
Delivery Time :
3~25 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
5000pcs/month
Usage :
Tension force measurement
Theory :
Strain gauge tension load cell
Output :
Analog Sensor
Description

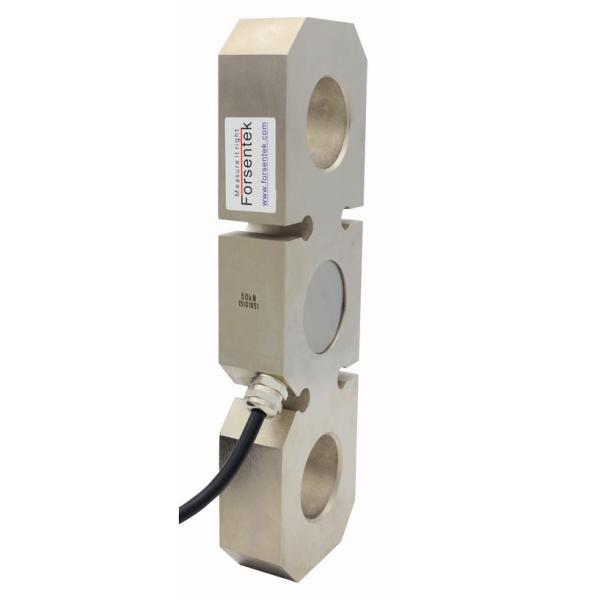

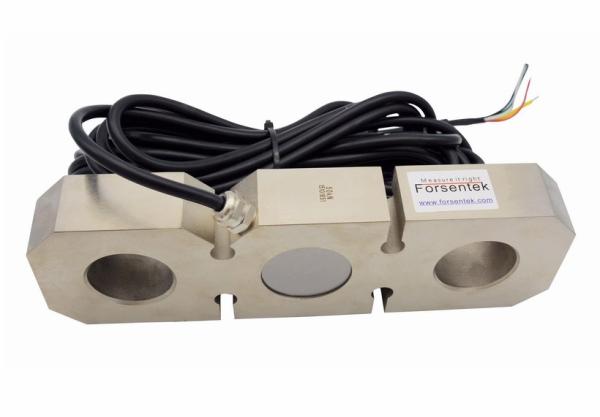

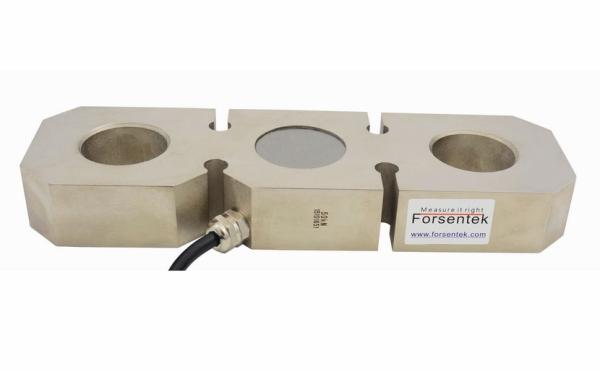

Tension links tension link load cell

Tension links|Tension link load cell

Features

  • Alloy steel construction
  • Strain gauge technilogy,high accuracy
  • Tension force measurement
  • Widely used for handing scales,crane scales,lifting scales,etc.

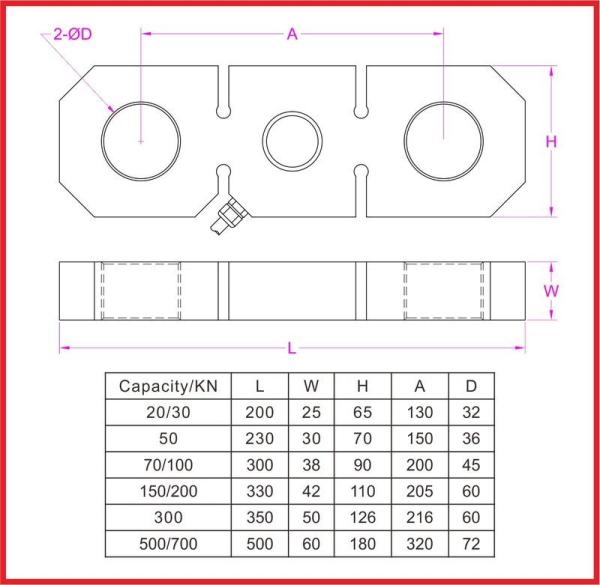

Dimensions

Tension links|Tension link load cell

Tension links|Tension link load cell

Specifications

Capacity 20/30/50/70/100/150/200/300/500/700KN
Rated output 2.0mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Non-linearity ±0.03% R.O.
Hysteresis ±0.03% R.O.
Non-repeatability ±0.03% R.O.
Creep(30min) ±0.03% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./10oC
Temperature shift span ±0.03% R.O./10oC
Input resistance 385±30 ohms
Output resistance 350±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Alloy steel
Cable Ø5*3000mm
Wiring code Red--E+ Black--E- Green--S+ White--S-

Tension link load cell

Tension links|Tension link load cell
