Force transducers to measure force
Force transducers to measure force
Force transducers to measure force
Force transducers to measure force
Force transducers to measure force
Force transducers to measure force
Force transducers to measure force
Force transducers to measure force
Force transducers to measure force
Force transducers to measure force
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Certification :
CE
Model Number :
FL51
MOQ :
1pc
Packaging Details :
Carton
Delivery Time :
3~25 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
5000pcs/month
Theory :
Strain gauge force transducer
Output :
Analog Sensor
Usage :
Tension and compression force measurement
Capacity :
1KN 2KN 5KN 10KN 20KN
Description

Force transducers to measure forceForce transducers to measure force

Features

  • CE certified
  • Stainless steel construction,in-line load cell
  • M12 threads on both sides,easy to install
  • Tension and compression force measurement

Applications

  • Axial force measurement
  • Air cylinder push force measurement
  • Fatigue testing machine
  • Welding force control
  • Testing machine
  • Assembly line

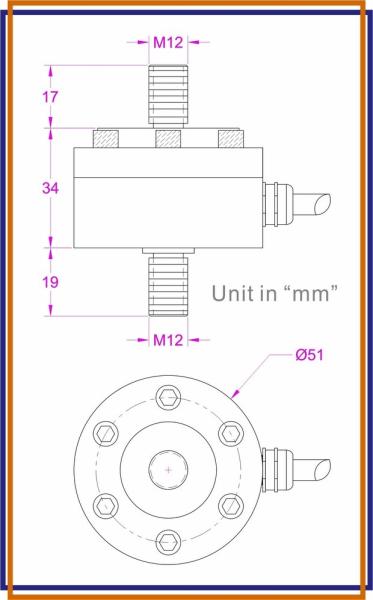

Dimensions(Unit in "mm")

Force transducers to measure force

Force transducers to measure force

Specifications

Capacity 1KN 2KN 5KN 10KN 20KN
Rated output 1.5±10%mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.5% R.O.
Hysteresis ±0.5% R.O.
Nonrepeatability ±0.2% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP66
Material of element Stainless steel
Cable Ø5*1500mm
Wiring code Red--E+ Black--E- Green--S+ White--S-

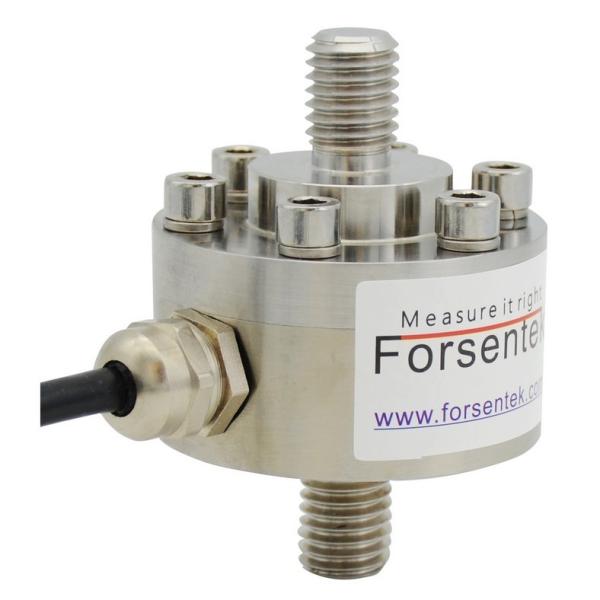

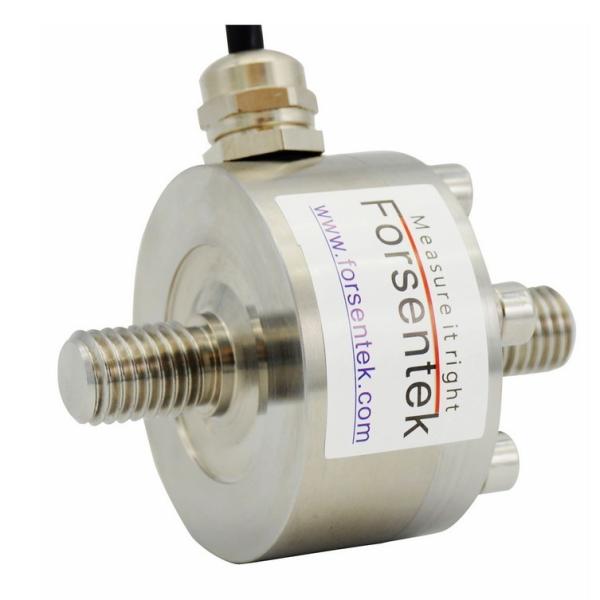

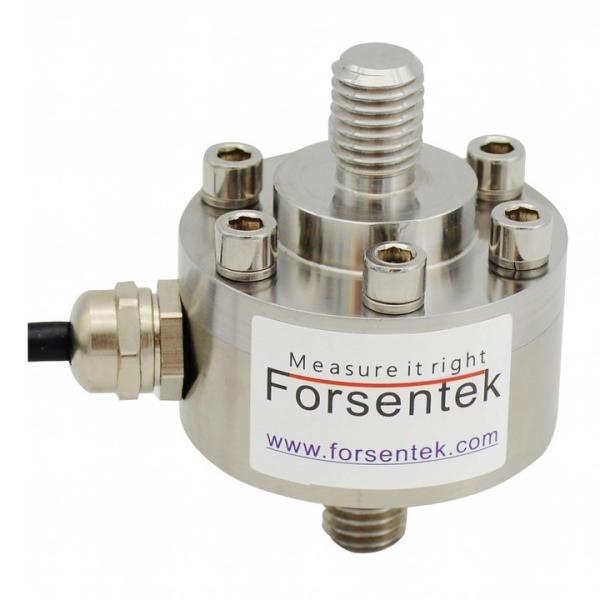

Force measurement sensor FL51

Force transducers to measure force

Force transducers to measure force

Force transducer FL51 is designed with M12 threaded bolts on each side,which is also known as rod end load cell of inline type load cell.FL51 is able to measure both tension and compression force,mV/V analog output as standard configuration.-5~5V,0-10V,4-20mA output is achievable through external amplifier.

Force transducers to measure force

Ordering Code:

FL51-20KN, FL51-10KN, FL51-5KN, FL51-2KN, FL51-1KN

Force transducers to measure force
