Load cell sensor loadcell supplier
Load cell sensor loadcell supplier
Load cell sensor loadcell supplier
Load cell sensor loadcell supplier
Load cell sensor loadcell supplier
Load cell sensor loadcell supplier
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FNV
Capacity :
5kg 10kg 20kg 30kg 50kg 100kg 200kg
MOQ :
2pcs
Packaging Details :
Carton
Delivery Time :
3~25 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
1000pcs/month
Usage :
Load cell sensor
Theory :
Strain gauge sensor
Output :
Analog Sensor
Description

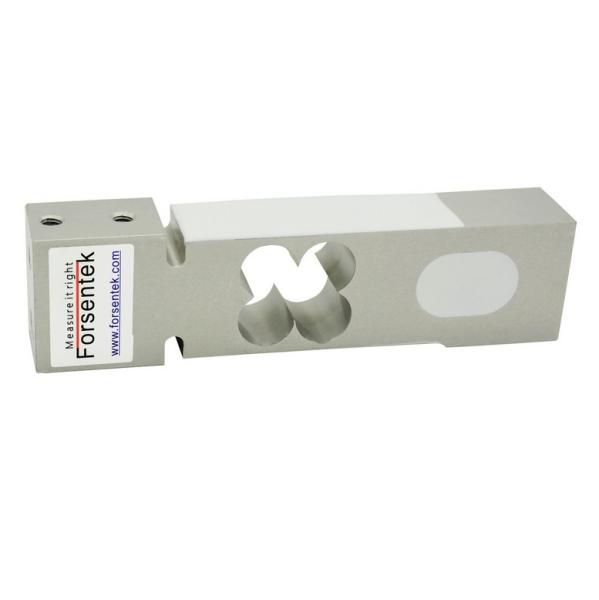

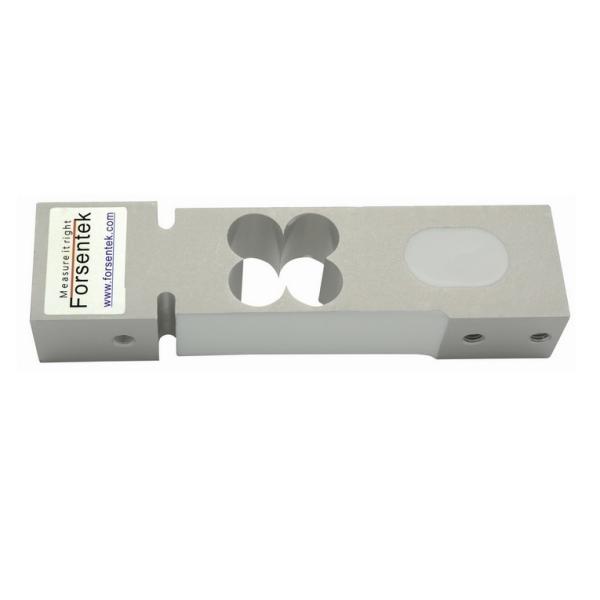

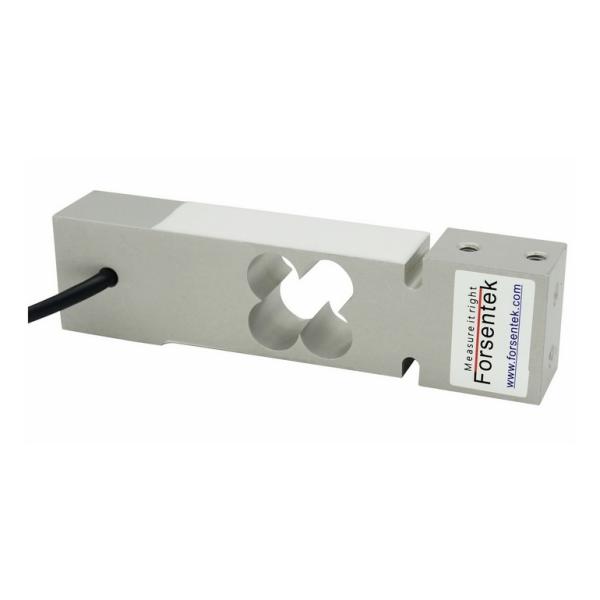

Load cell sensor 10kg 20kg 50kg 100kg 200kg

Load cell sensor loadcell supplier

Features

  • Aluminum construction,small size
  • 6-wire connection
  • Strain gauge technology,high accuracy
  • Corner trimmed for 400*400(mm) platform
  • Widely used for price computing scales,counting scales,bench scales.etc.

Load cell sensor loadcell supplier

Dimensions

Load cell sensor loadcell supplier

Specifications

Capacity 5kg 10kg 20kg 30kg 50kg 100kg 200kg
Rated output 2.0±5%mV/V
Excitation 5-15V
Zero balance ±5% R.O.
Nonlinearity ±0.015% R.O.
Hysteresis ±0.01% R.O.
Nonrepeatability ±0.01% R.O.
Creep(30min) ±0.02% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.02% R.O./10oC
Temperature shift span ±0.02% R.O./10oC
Input resistance 405±10 ohms
Output resistance 350±3 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable

Ø6*1500mm 6-wire

(Longer cable available)
Wiring code

Red--E+ Blue--Sen+ Black--E-

Yellow--Sen- Green--S+ White--S-

Load cell sensor loadcell supplier

Load cell sensor loadcell supplier
