Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FSH
MOQ :
1pc
Packaging Details :
Carton
Delivery Time :
3~25 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
1000pcs/month
Usage :
Weighing load cell
Theory :
Resistance Sensor
Output :
Analog Sensor
Material :
Stainless steel
Description

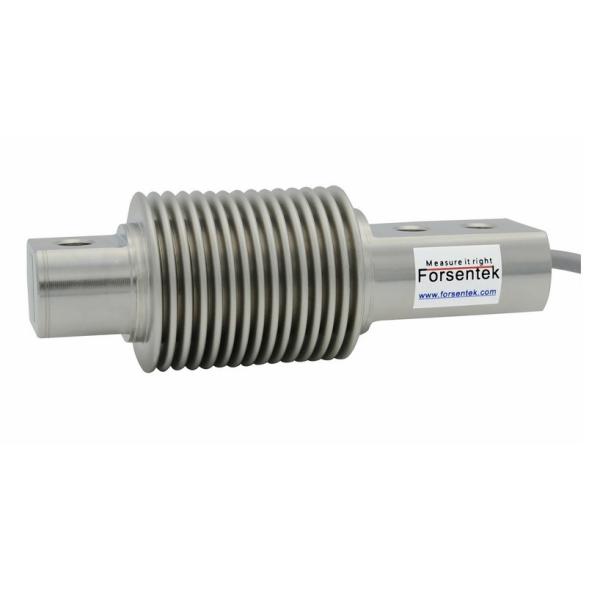

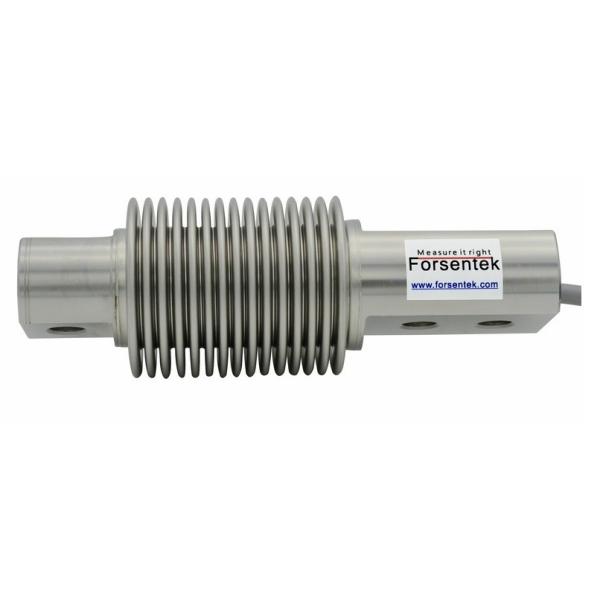

Top quality load cell substitutes for hbm load cell z6fd1

6-wire load cell substitutes for hbm load cell z6fd1

Features

  • Stainless steel construction
  • Laser welded,IP68 protection
  • Strain gauge technology,analog output,high accuracy

Dimensions

6-wire load cell substitutes for hbm load cell z6fd1

6-wire load cell substitutes for hbm load cell z6fd1

Specifications

Capacity 5kg 10kg 20kg 50kg 100kg 200kg 300kg 500kg
Rated output 2.0mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.015% R.O.
Hysteresis ±0.015% R.O.
Nonrepeatability ±0.01% R.O.
Creep(30min) ±0.015% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.015% R.O./10oC
Temperature shift span ±0.015% R.O./10oC
Input resistance 390±10 ohms
Output resistance 350±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP68
Material of element Stainless steel
Cable Ø5.3*3000mm
Wiring code

Blue--Exc+ Black--Exc-

Green--Sen+ Grey--Sen-

White--Sig+ Red--Sig-

6-wire load cell FSH

6-wire load cell substitutes for hbm load cell z6fd1

6-wire load cell substitutes for hbm load cell z6fd1

6-wire load cell substitutes for hbm load cell z6fd1
