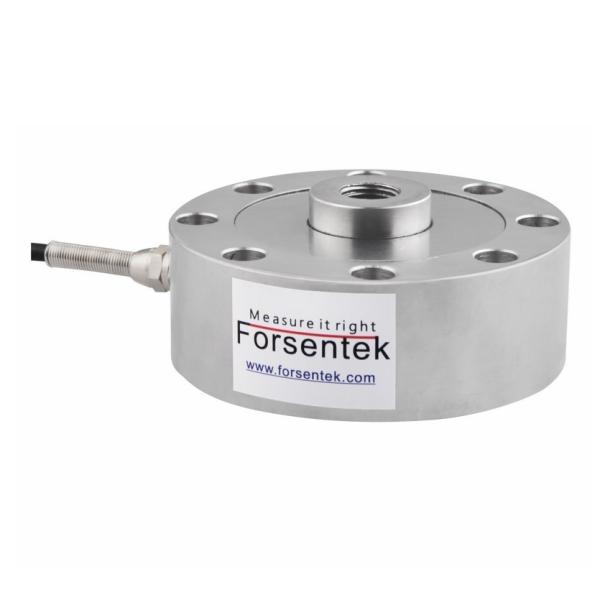

Spoke type load cell weighing load cell
Spoke type load cell weighing load cell
Spoke type load cell weighing load cell
Spoke type load cell weighing load cell
Specifications
Place of Origin :
China
Brand Name :
Forsentek
Model Number :
FCA
MOQ :
1pc
Packaging Details :
Carton
Delivery Time :
3~25 working days
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
1000pcs/month
Usage :
Weighing load cell
Theory :
Resistance Sensor
Output :
Analog Sensor
Material :
Stainless steel or alloy steel
Description

Spoke type load cell weighing load cell

Spoke type load cell weighing load cell

Features

  • Spoke type,low profile,alloy steel construction.
  • Strain gauge based,high accuracy.
  • Suitable for tank weighing,hopper weighing,vessel weighing.

Dimensions

Spoke type load cell weighing load cell

Specifications

Capacity 0.5/1/2/3/5/7/10/20/25/30/40/50t
Rated output 1.8-2.2mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.05% R.O.
Hysteresis ±0.05% R.O.
Nonrepeatability ±0.03% R.O.
Creep(30min) ±0.03% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+60oC
Operating temperature -20...+80oC
Temperature shift zero ±0.03% R.O./10oC
Temperature shift span ±0.03% R.O./10oC
Input resistance 750±30 ohms
Output resistance 700±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP66
Material of element Alloy steel/Stainless steel
Cable Ø5*3000mm(Longer cable available)
Wiring code Red--E+ Black--E- Green--S+ White--S-

Spoke type load cell FCA

Spoke type load cell weighing load cell
