32KW Sandwich Panel Roll Forming Machine With 0 - 3.8m / Min Working Speed
32KW Sandwich Panel Roll Forming Machine With 0 - 3.8m / Min Working Speed
32KW Sandwich Panel Roll Forming Machine With 0 - 3.8m / Min Working Speed
32KW Sandwich Panel Roll Forming Machine With 0 - 3.8m / Min Working Speed
Specifications
Certification :
BV,SGS, CE,ISO9001
Place of Origin :
Botou,Hebei Province
MOQ :
1 Set
Payment Terms :
L/C, T/T
Supply Ability :
30 SETS / MONTH
Delivery Time :
20 Working days
Packaging Details :
Naked and fixed into container
Condition :
New
Type :
Tile Forming Machine
Tile Type :
Colored steel / PPGI Coil / Glavanized sheet coil
Voltage :
380V 60HZ or at your requirement
After-sale :
Engineers available to service
Sheet Thickness :
0.3~0.8mm
Price :
Negotiation
Description

Rock Wool / EPS Sandwich Panel Roll Forming Machine / Roof Sheet Production Line

Main technical parameter

NO. Main technical parameter
1

Main components

 Corrugated unit,composite host unit,finished cutting group,decoiler,conveyor frame,Auxiliary equipment
2 Installation dimensions 40m*2.3m*2.5m
3 Maximum working width(color steel) 1000-1200mm
4 Maximum working thickness 50mm-250mm
5 Color steel thickness 0.2-0.6mm
6 Work speed 0-3.8m/min
7 EPS thickness Not less than 50mm
8 Total power 32KW
9 Weight 15-16tons
10 Main molding press machine size 9525*1450*1070mm
11 Main molding press machine glue roller number

EPS sandwich roll forming machine:26-32 row

Rock wool sandwich roll forming machine:17 row
12 The main corrugated molding machine shaft number

EPS sandwich roll forming machine:9-11 row

Rock wool sandwich roll forming machine:6 row
13 Big frame joist steel and A3 steel plate welding
14 roller Hard chromium plating processing
15 Transmission device By motor cycloidal reducer, chain wheel, chaincomposition
16

Composite host

 Contains the main frame,decoiler,Well glue agency,Correction device, electric heating devices, vacuum device and electric control device
17 Composite host frame A total of three pairs of up and down roller frame
18 Finished cutting part Fixed length---compaction---Random motion cutting---loosen---reset
19 control mode Semi-automatic and fully automatic
20

Auxiliary equipment

 Rock wool slitting machine,color steel slitting machine,corrugated gusset plate forming machine, sealing strip molding press machine
21 voltage 380v 50hz 3ph
22 control mode PLC ( Delta)
23 man-machine interface MT506(TAIWAN)
24 test the encoder Omron
25 Electronic control parts Made in china
26 converter 0.4kw(made in china)

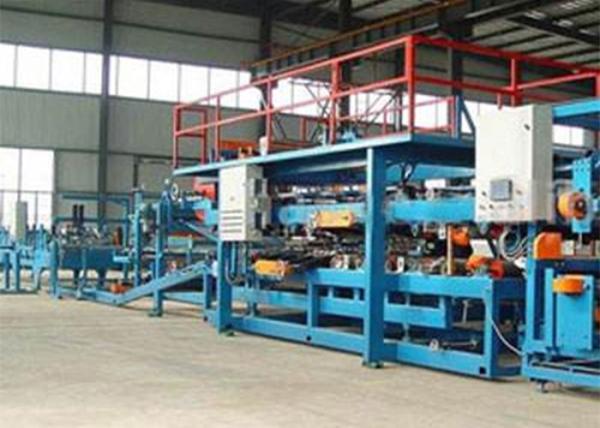

Machine shows

32KW Sandwich Panel Roll Forming Machine With 0 - 3.8m / Min Working Speed

32KW Sandwich Panel Roll Forming Machine With 0 - 3.8m / Min Working Speed

32KW Sandwich Panel Roll Forming Machine With 0 - 3.8m / Min Working Speed
