Specifications
Color :
Color
Interface :
40 Pin, 4 LANE MIPI
Payment Terms :
T/T,L/C,Credit card,Cash
Product Name :
6.86 Inch 480x1280 IPS Bar LCD Display MIPI TFT Stretched LCD Screen With Touch Panel
Supply Ability :
5000000000 pieces/year
Operating Temperature :
-20°C to 70°C
Resolution :
480 x 1280
Model Number :
KWH0686ST01-C01
Display Type :
Stretched Bar TFT LCD Display
Dimensions :
66.9mm x 181.6mm x 6.3mm
Brand Name :
Formike
Packaging Details :
Tray + Inner Box + Carton
Supply Voltage :
2.8V
Viewing Angle :
All
Brightness :
500cd/m2
Touch Screen :
With capacitive touch panel
MOQ :
1 piece
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Place of Origin :
China
Display Size :
6.86 inch
Description

6.86 Inch 480x1280 IPS Bar LCD Display MIPI TFT Stretched LCD Screen With Touch Panel

6.86 Inch 480x1280 IPS Bar LCD Display MIPI TFT Stretched Screen With Touch Panel

Product Name 6.86 Inch 480x1280 IPS Bar LCD Display MIPI TFT Stretched LCD Screen With Touch Panel
LCD Size 6.86 Inch Stretched Bar TFT LCD Display Module
Display Mode IPS, Transmissive Normally Black
Resolution 480x1280
Outline Dimension (mm) 66.90 x 181.60 x 6.30
Active Area (mm) 60.22 x 160.59
Dot pitch (mm) 0.1254x0.1254
Viewing Direction All
Interface 4 LANE MIPI Interface, 40 Pin
Driver IC ER68577B
Brightness (Cd/m2) 500
Contrast Ratio 900:1
Backlight 24 White LED

Backlight Supply

(Current/Voltage)

 160mA 9.6V
Touch Screen With Capacitive Touch Screen Panel

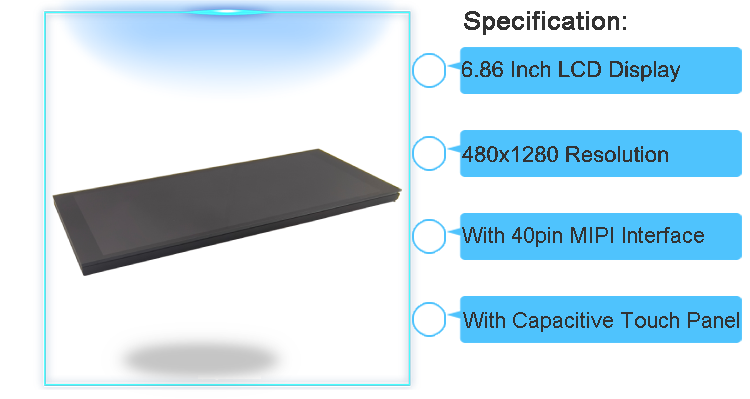

* KWH0686ST01-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

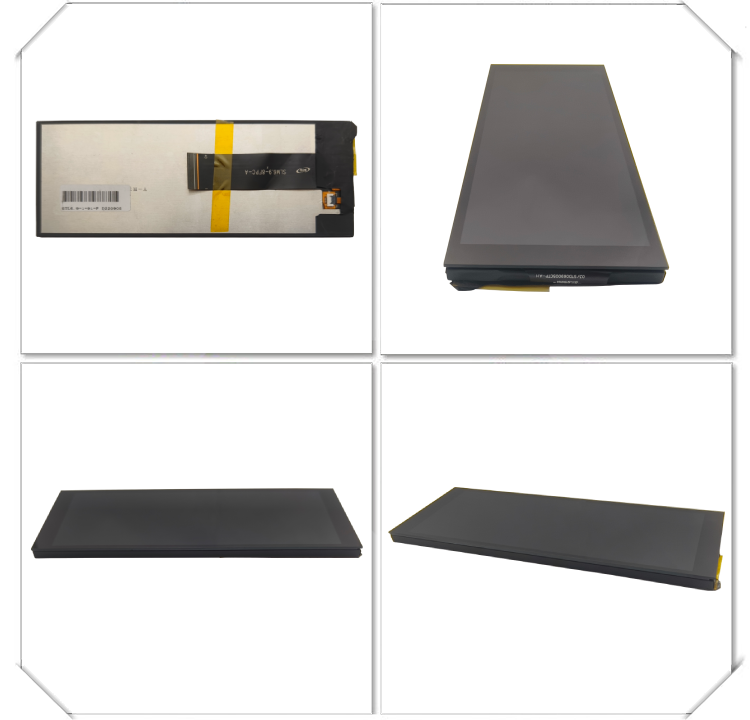

* It is composed of a TFT LCD Display, driver IC, FPC, backlight, Capacitive Touch Panel.

* It is 480x1280 resolution Bar Type TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

Key Feature:

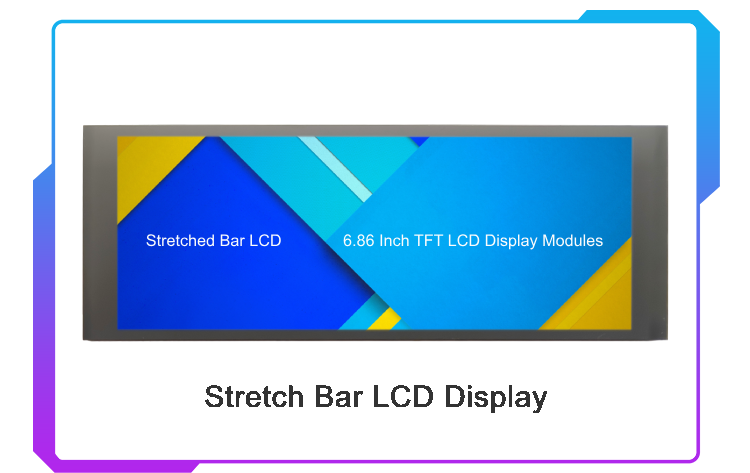

• Stretched bar LCD

• 6.86 inch 480x1280 TFT LCD display

• IPS display type & All viewing angle

• High brightness is up to 500cd/m2

• With 40pin 4 lane MIPI interface

• It's widely used for Stretched Bar LCD, Industrial, Home Appliance, Automotive Display, Outdoor High Brightness, Healthcare, Instruments & Meters and other bar type lcd display solution.
