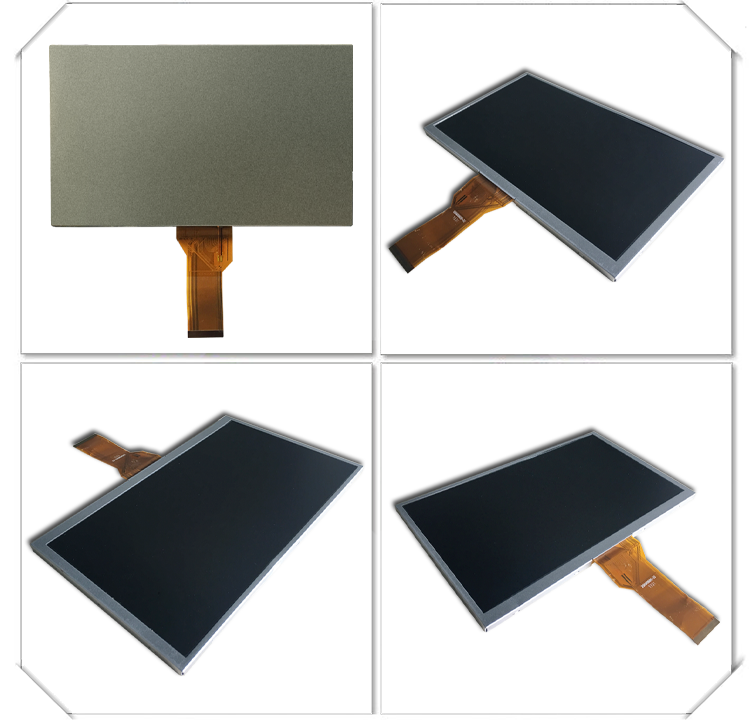

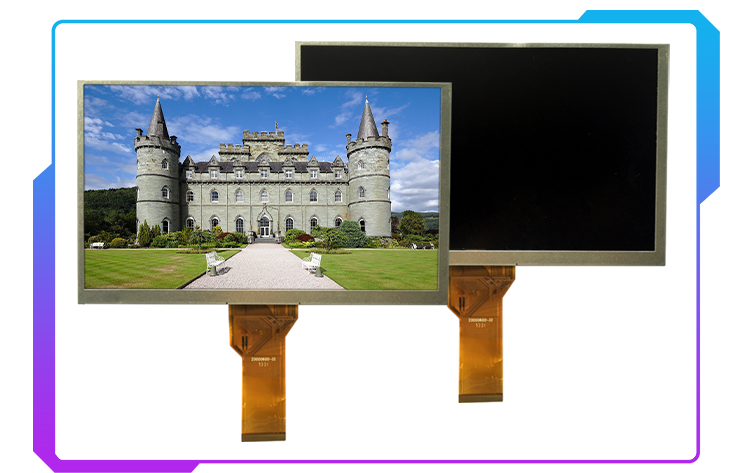

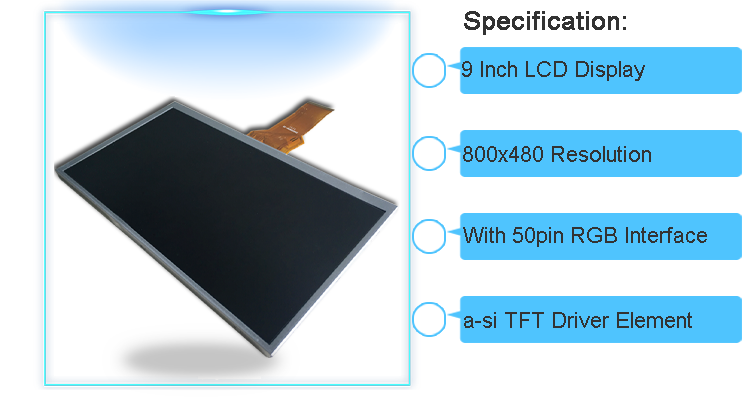

9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface
9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface
9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface
9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface
9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface
9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface
9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface
9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface
9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface
9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface
9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface
9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface
9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface
9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface
Specifications
Dimensions :
211.1mm x 126.5mm x 5.9mm
Place of Origin :
China
Product Name :
9 Inch TFT Display 800x480 WVGA LCD Panel With 50 Pin 24 BIT RGB Interface
Operating Temperature :
-20°C to 70°C
Display Size :
9 inch
Resolution :
800*480
Viewing Angle :
6 O'Clock
Payment Terms :
T/T,L/C,Credit card,Cash
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Display Type :
9 Inch TFT LCD Display
Touch Screen :
Without (Optional with touch screen)
Interface :
50 Pin, 24 BIT RGB
Model Number :
KWH090KQ04-F01
Color :
Color
Brand Name :
Formike
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
MOQ :
1 piece
Supply Ability :
5000000000 pieces/year
Supply Voltage :
3.3V
Description

9 Inch TFT Display 800x480 WVGA LCD Panel With 50 Pin 24 BIT RGB Interface

9 Inch backlight TFT LCD Color Display 800x480 WVGA Panel With 50 Pin 24 BIT RGB Interface

Product Name 9 Inch TFT Display 800x480 WVGA LCD Panel With 50 Pin 24 BIT RGB Interface
LCD Size 9 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 800x480
Outline Dimension (mm) 211.10x126.50x5.90
Active Area (mm) 198.00x111.696
Dot pitch (mm) 0.0825x0.2327
Viewing Direction 6 O'clock
Interface RGB Interface, 50 Pin
Driver element a-Si TFT
Brightness (Cd/m2) 250
Contrast Ratio 500:1
Backlight 33 White LED

Backlight Supply

(Current/Voltage)

 220mA 9.9V
Touch Screen Without

* KWH090KQ04-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
