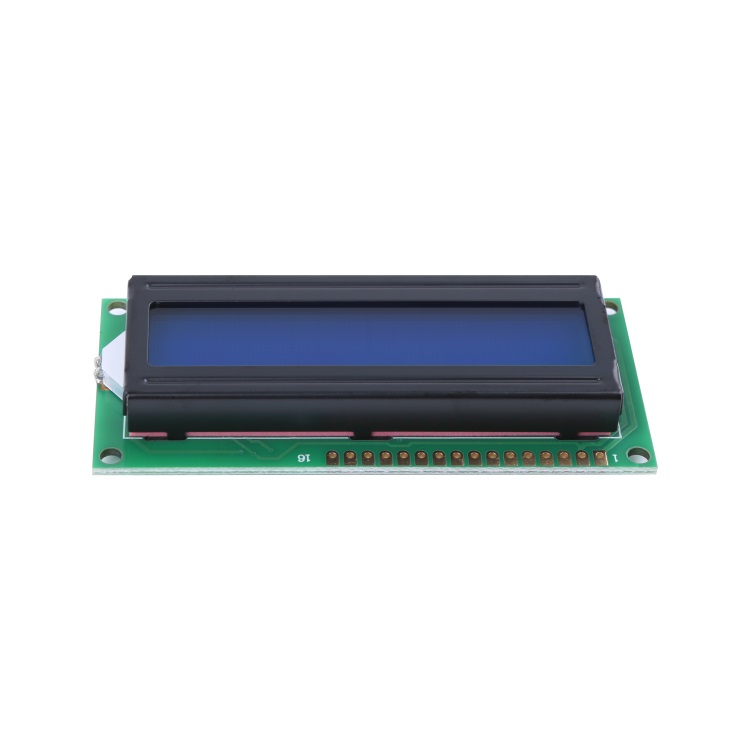

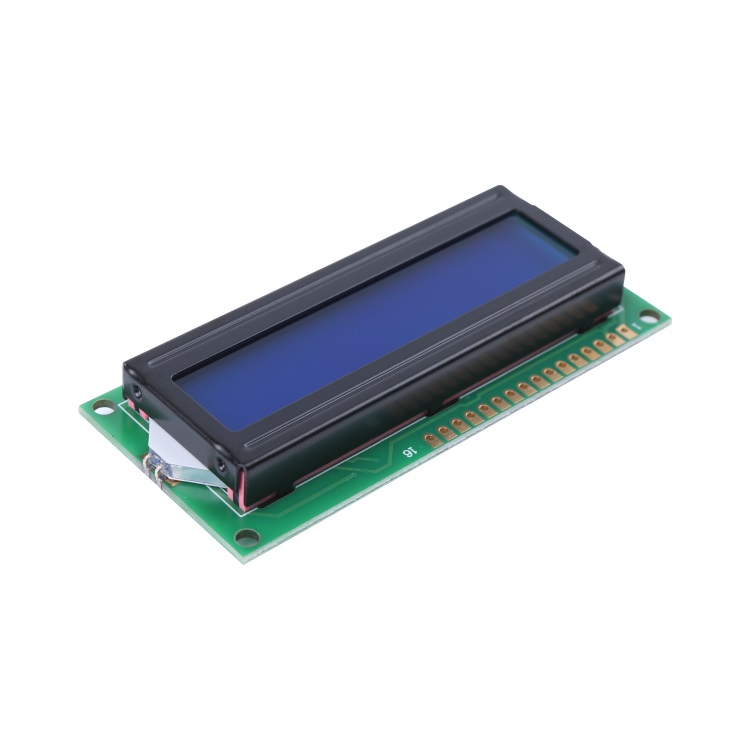

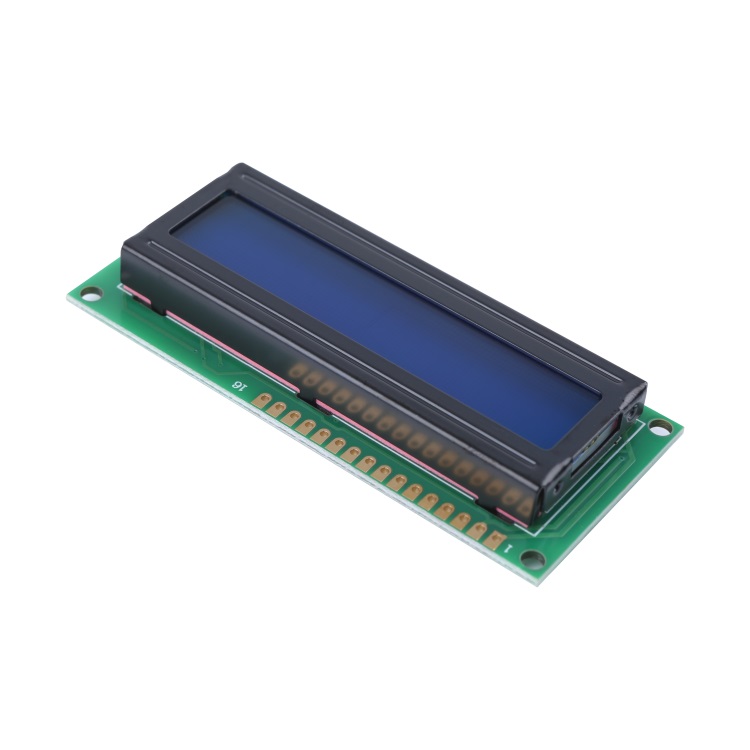

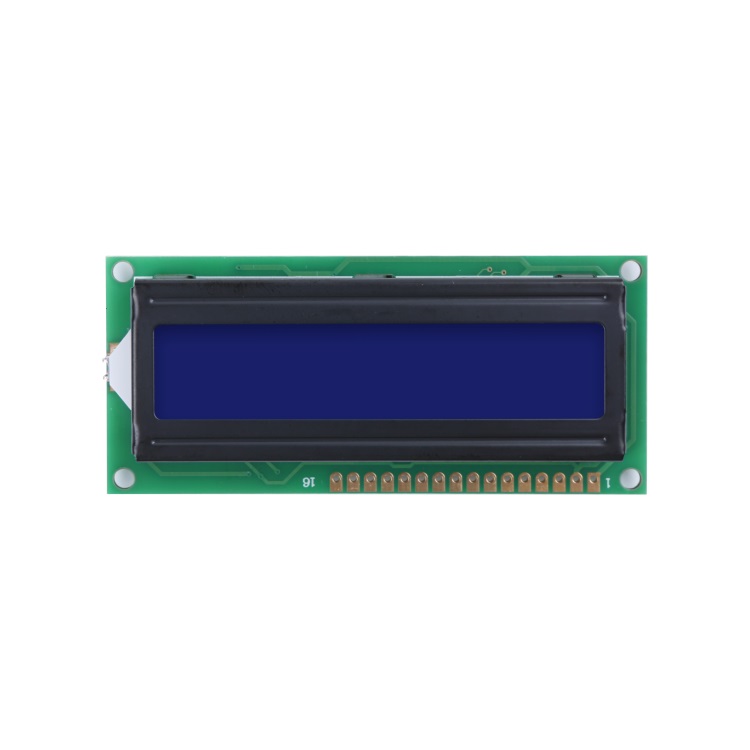

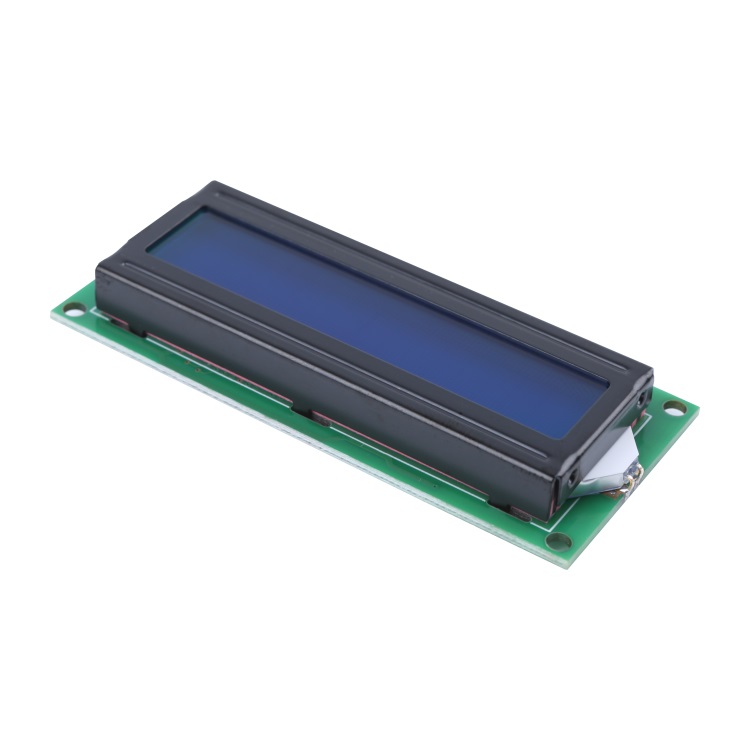

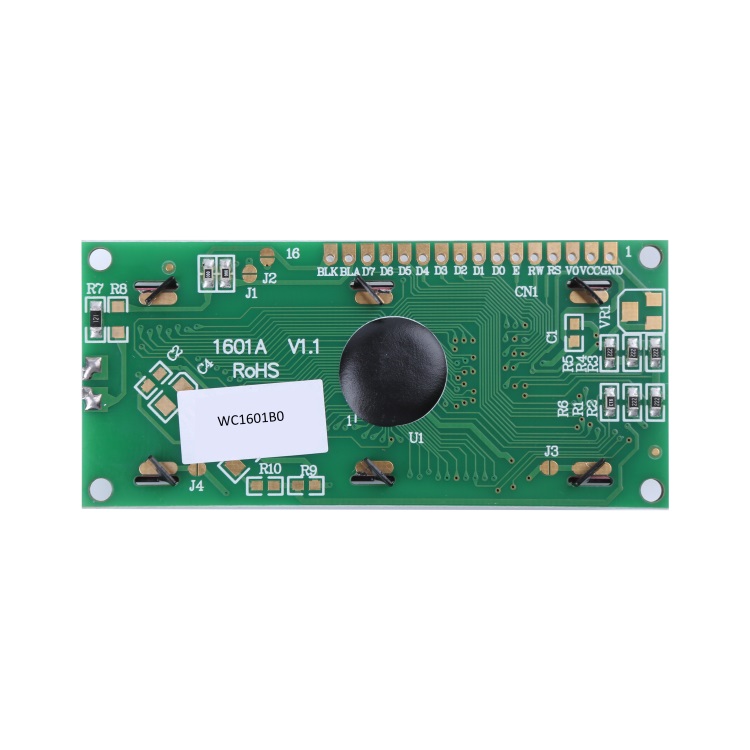

ST7066U Mono 16x1 LCD Display 1601 STN Module With COB Type 5V

Specifications

Backlight Color :

Usually Y-G or Blue or Gray

Controller :

ST7066U / AIP31066

MOQ :

1 piece

Brand Name :

Formike

Model Number :

WC1601B0

Place of Origin :

China

Packaging Details :

Tray + Inner Box + Carton

Product Name :

Mono LCD Display 16x1 1601 STN LCD Module With COB Type

Backlight :

LED

Viewing Angle :

6 O'clock

Interface :

16 Pin, 4-bit or 8-bit 6800 MPU

Operating Temperature :

-20°C to 70°C

Operating Voltage :

3.3V / 5V

Delivery Time :

In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Dimensions :

80mm * 36mm * 12mm

Display Mode :

STN

Display format :

16character*1 line

Supply Ability :

5000000000 pieces/year

Display Type :

Character LCD Module

Payment Terms :

T/T,L/C,Credit card,Cash

Description

Mono LCD Display 16x1 1601 STN LCD Module With COB Type

ST7066U Mono 16x1 LCD Display 1601 STN Module With COB Type 5V

Product Specification
LCD Name			Mono LCD Display 16x1 1601 STN LCD Module With COB Type
Display Format			16character*1 line
Module Size			80.0mm×36.0mm×12.0mm
View Area			64.5mm×13.8mm
Character Size			3.20mm×5.95mm
Character Pitch			3.75mm×5.95mm
IC			AIP31066 or Eqv (Defualt English / Japan Font)
Interface			16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method			1/16 Duty, 1/5 Bias
Viewing Direction			6 O’clock
Operating Temperature			-20℃~+70℃
Storage Temperature			-30℃~+80℃
Different series type LCD mode for you to choose
No.	Part Number	LCD Type	Backlight Color	Font Color	Background Color	Voltage
1	WC1601B0SGW6B-A1	STN Y-G Positive	Yellow Green Color	Black Color	Yellow Green Color	5V
2	WC1601B0SBY6B-A2	STN Y-G Positive	Yellow Green Color	Black Color	Yellow Green Color	3.3V
3	WC1601B0SGW6B-A1	STN Negative Blue	White Color	White Color	Blue Color	5V
4	WC1601B0SGW6B-A2	STN Negative Blue	White Color	White Color	Blue Color	3.3V
5	WC1601B0SKW6B-A1	STN GREY Positive	White Color	Black Color	Grey Color	5V
6	WC1601B0SKW6B-A2	STN GREY Positive	White Color	Black Color	Grey Color	3.3V
