Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Specifications
Supply Ability :
5000000000 pieces/year
Controller :
ST7066U-0B+ST7065C
Display Type :
Transflective Positive
Product Name :
Custom LCD Display Module 2.92 Inch China Mono LCD Character Screen with COB/LCD+ZBR+EL+PCB+BZL
Interface :
16 Pin
Payment Terms :
T/T,L/C,Credit card,Cash
Display Structure :
COB/LCD+ZBR+EL+PCB+BZL
Display Mode :
STN
Operating Voltage :
5V
Model Number :
WC8404Z0SKA6B
Color :
Black display dot on gray background with white backlight
Packaging Details :
Tray + Inner Box + Carton
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Brand Name :
Formike
Dimensions :
62.5mm * 73.0mm * 7.1mm
MOQ :
1 piece
Backlight :
LED
Place of Origin :
China
Operating Temperature :
-20°C to 70°C
Viewing Angle :
6 O'clock
Description

Custom LCD Display Module 2.92 Inch China Mono LCD Character Screen with COB/LCD+ZBR+EL+PCB+BZLCustom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch

LCD Name

Custom LCD Display Module 2.92 Inch China Mono LCD Character Screen with COB/LCD+ZBR+EL+PCB+BZL

Display Format

8*4

Display Mode

STN, Transflective, Positive

Outline Dimension

62.5*73.0*7.1 mm

Active Area

48.8*56.0 mm

Viewing Direction

6 O’clock

DUTY/BIAS

1/16, 1/5

Type

COB

Driver IC

ST7066U-0B + ST7065C

Working Temp.

-20℃~+70℃

Storage Temp.

-30℃~+80℃

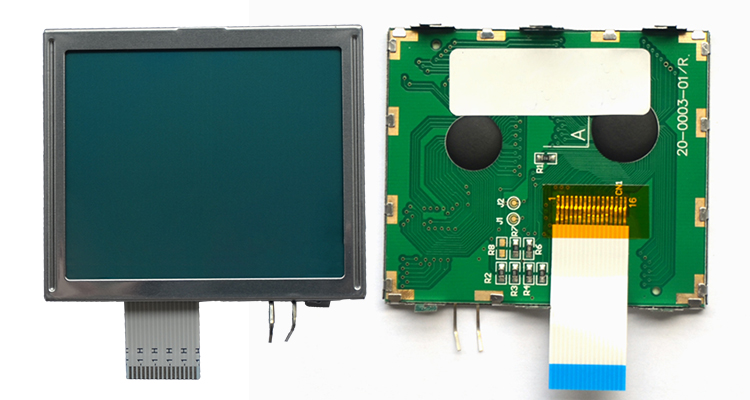

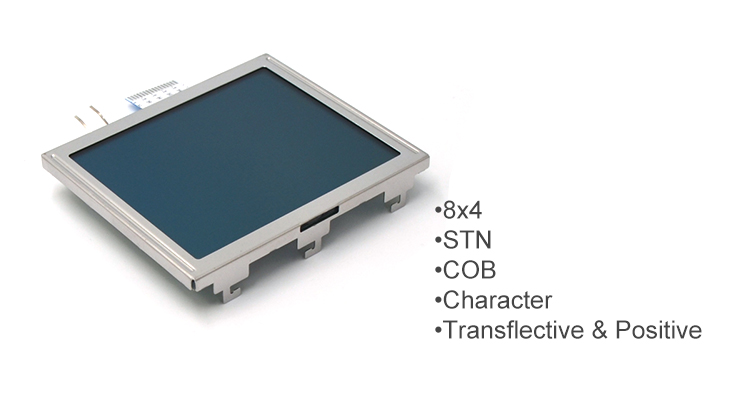

* WC8404Z0SKA6B is a Monochrome color COB type STN Positive, Transflective LCD.

* It is composed of a monochrome LCD panel, driver IC, FPC, and EL backlight, PCB.

*It is 8x4 dots monochrome character STN lcd monitor.

* Backlight with white,blue,yellow,red color

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch

Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
Custom Monochrome Graphic LCD Display LCM LCD Module Character Screen 2.92 Inch
