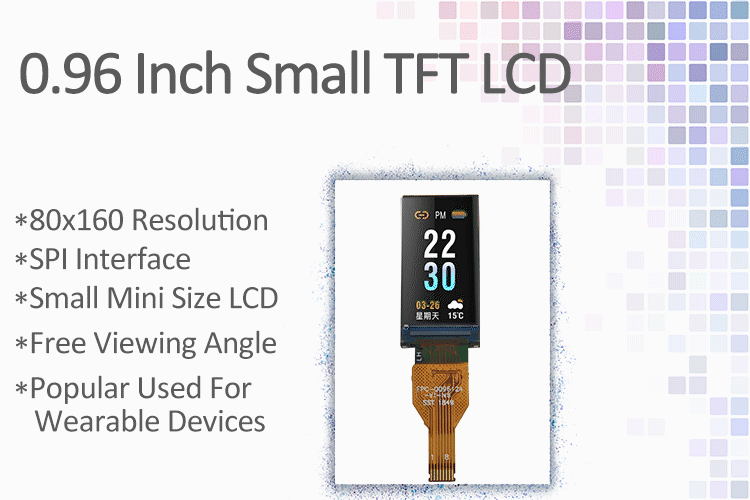

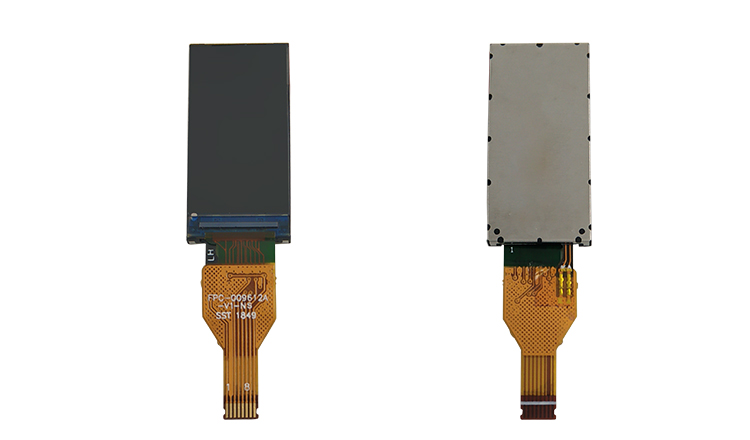

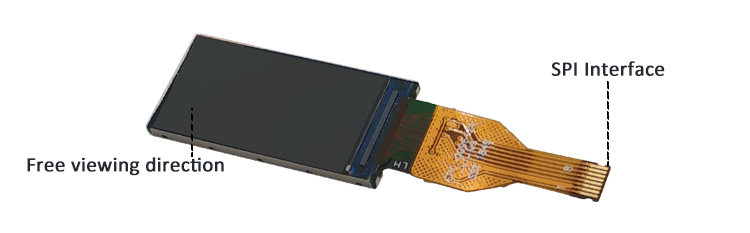

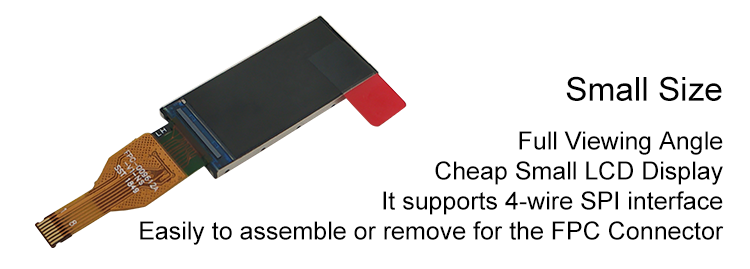

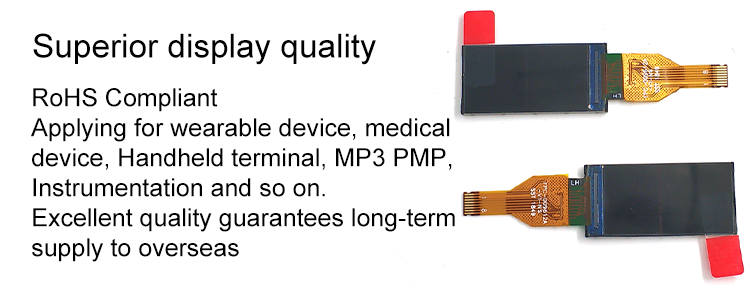

OEM SPI TFT LCD Module Display panel 0.96 Inch St7735 80x160 3.1V

Specifications

Resolution :

80 x 160

Operating Temperature :

-20°C to 70°C

MOQ :

1 piece

Product Name :

80x160 TFT Display 0.96 Inch LCD Module with SPI Interface

Display Size :

0.96 inch

Payment Terms :

T/T, L/C, Credit card, Cash

Brand Name :

Formike

Place of Origin :

China

Viewing Angle :

Free viewing angle

Packaging Details :

Tray + Inner Box + Carton

Color :

Color

Controller Ic :

ST7735S

Dimensions :

13.50mm ×27.95mm×1.51mm

Display Type :

TFT

Application :

Wearable devices, IoT projects, small electronics

Interface :

SPI

Supply Ability :

5000000000 pieces/year

Display Mode :

IPS TFT LCD

Model Number :

KWH009ST02-F01

Delivery Time :

In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Supply Voltage :

3.1V

Description

Product Description

80x160 TFT Display 0.96 Inch LCD Module with SPI Interface

OEM SPI TFT LCD Module Display panel 0.96 Inch St7735 80x160 3.1V

LCD Name	80x160 TFT Display 0.96 Inch LCD Module with SPI Interface
LCD Size	0.96 inch LCD Module / 1 inch LCD Screen
Display Mode	Transmissive TFT LCD
Touch Panel	Without (Support Customizable)
Resolution	80x160
Outline Dimension	13.50x 27.95 x 1.51mm
Active Area	10.80x21.696mm
Brightness	350cd/m2
Contrast Ratio	800:1
Interface	SPI
Connector	8 Pin FPC
Backlight	1 White LED
Driver IC	ST7735S
Color Depth	65k
Viewing Direction	Free Viewing Angle
Supply Voltage Supply Current Power dissipation	3.1V 20mA 62mW
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃

* KWH009ST02-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight

* It is 80x160 resolution TFT LCD module.

* Backlight with different brightness options from 100 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
