Specifications
Payment Terms :
T/T, L/C, Credit card, Cash
Color :
Color
Dimensions :
84.00mm × 84.00mm ×3.37mm
Operating Temperature :
-20°C to 70°C
Place of Origin :
China
Product Name :
Square Display 4 Inch Capacitive Touchscreen Screen 480 * 480 LCD 3.95 TFT LCD Module With 40Pin SPI RGB Interface
Interface :
40 Pin, SPI+RGB
Viewing Angle :
All
Display Type :
4.0 Inch IPS TFT LCD Display
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
MOQ :
1 piece
Controller Ic :
ST7701S
Resolution :
480 * 480
Supply Ability :
5000000000 pieces/year
Touch Screen :
With capacitive touch panel
Model Number :
KWH040ZX07-C02
Display Size :
4 Inch / 3.95 Inch
Supply Voltage :
3.3V
Brand Name :
Formike
Packaging Details :
Tray + Inner Box + Carton
Description

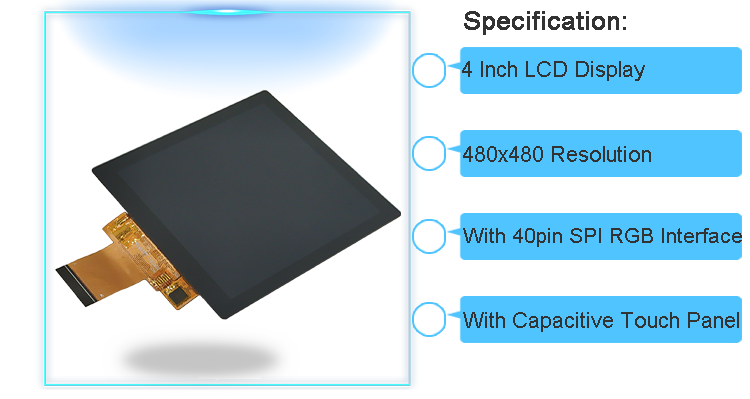

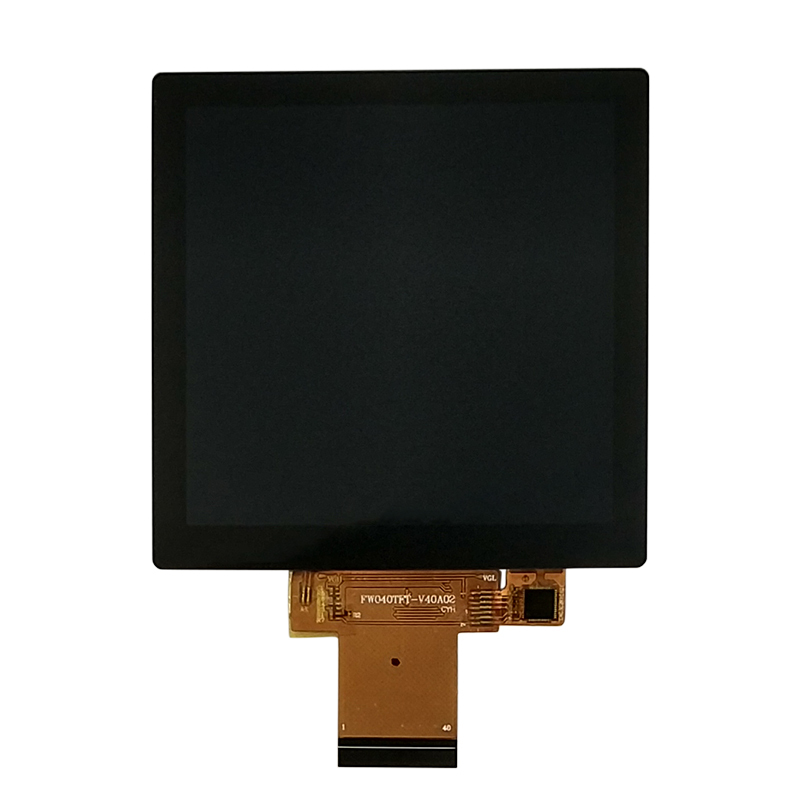

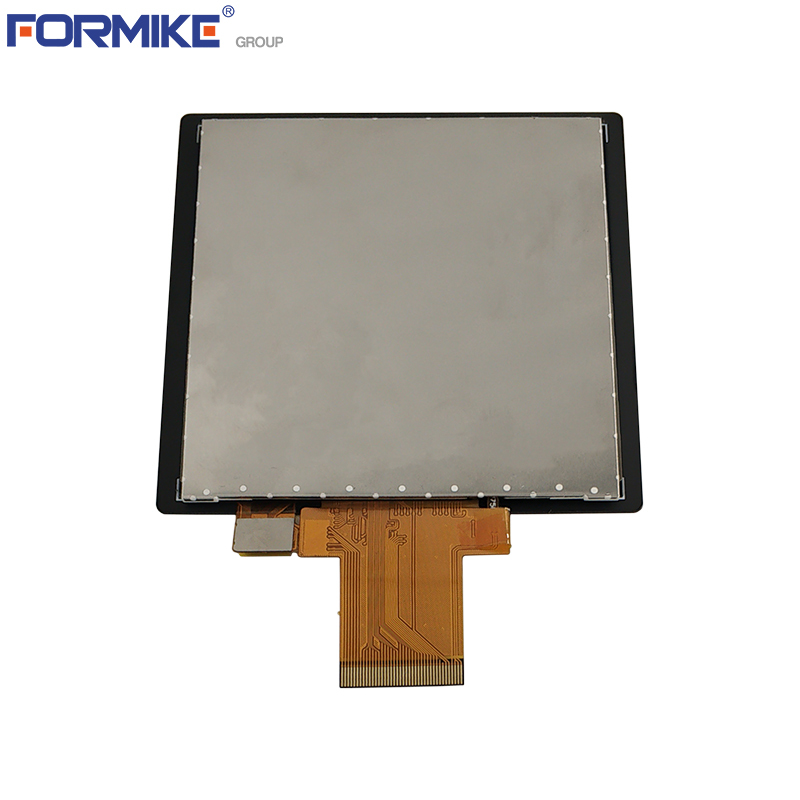

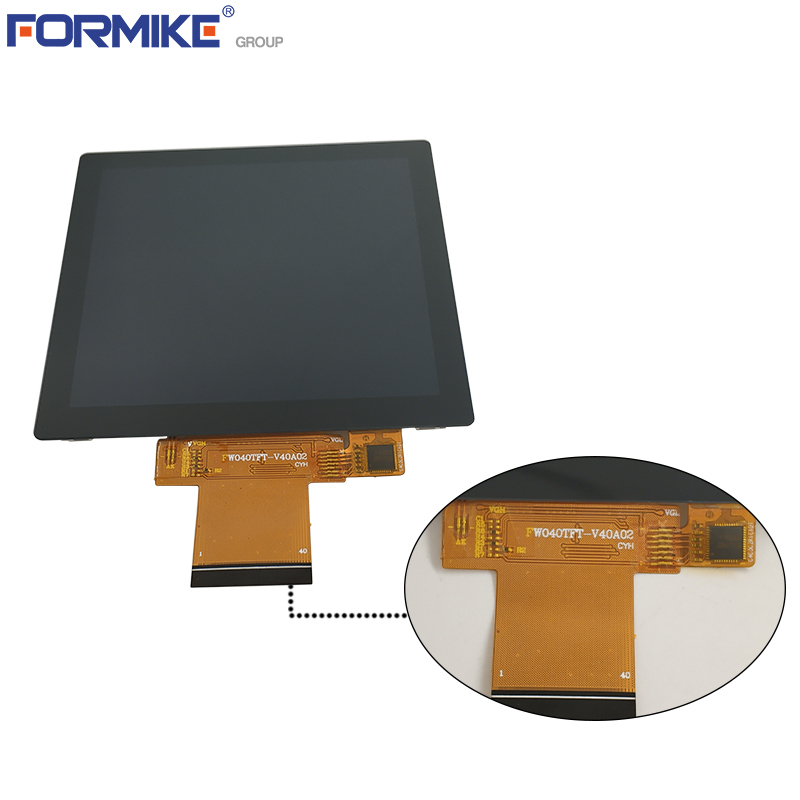

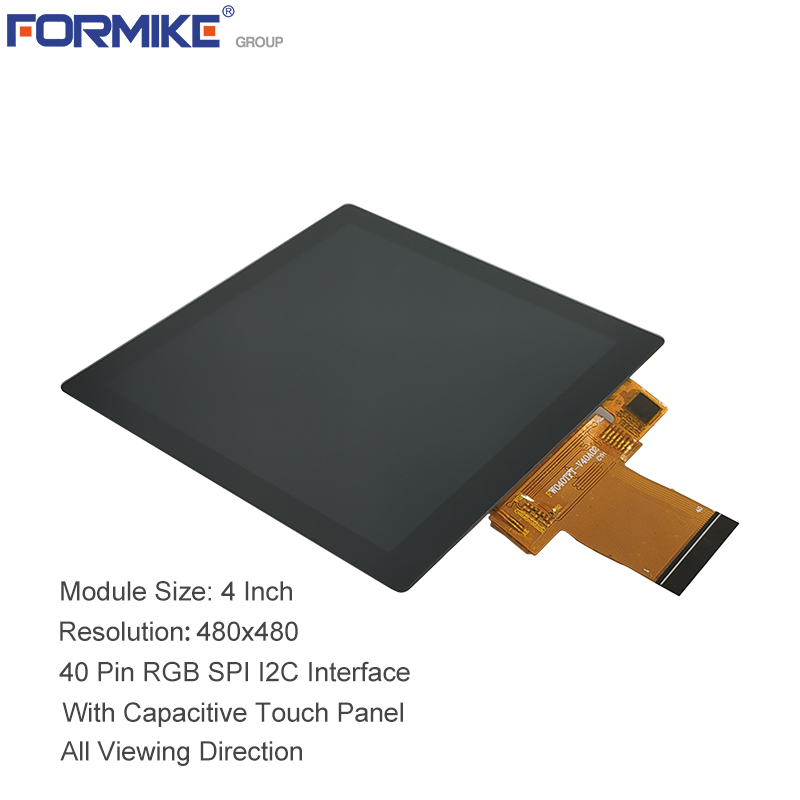

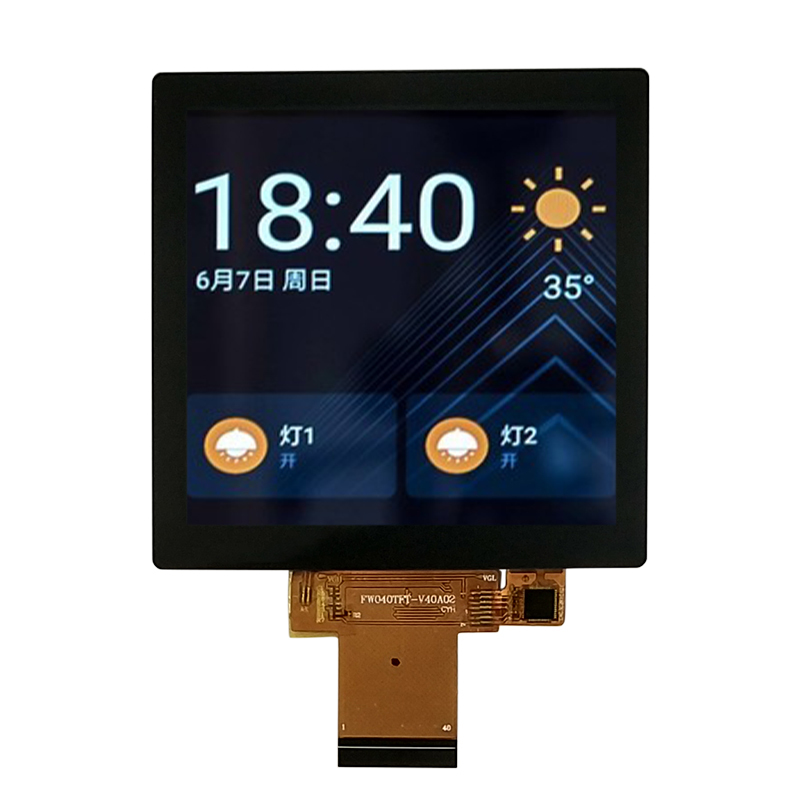

Square LCD TFT Capacitive Touchscreen Display 480x480 LCD 3.95 4 Inch Module

Square Display 4 Inch Capacitive Touchscreen Screen 480 * 480 LCD 3.95 TFT LCD Module With 40Pin SPI RGB Interface

Square LCD TFT Capacitive Touchscreen Display 480x480 LCD 3.95 4 Inch Module

Product Name Square Display 4 Inch Capacitive Touchscreen Screen 480 * 480 LCD 3.95 TFT LCD Module With 40Pin SPI RGB Interface
LCD Size 4 Inch TFT LCD Display Module
Display Mode IPS
Resolution 480x480

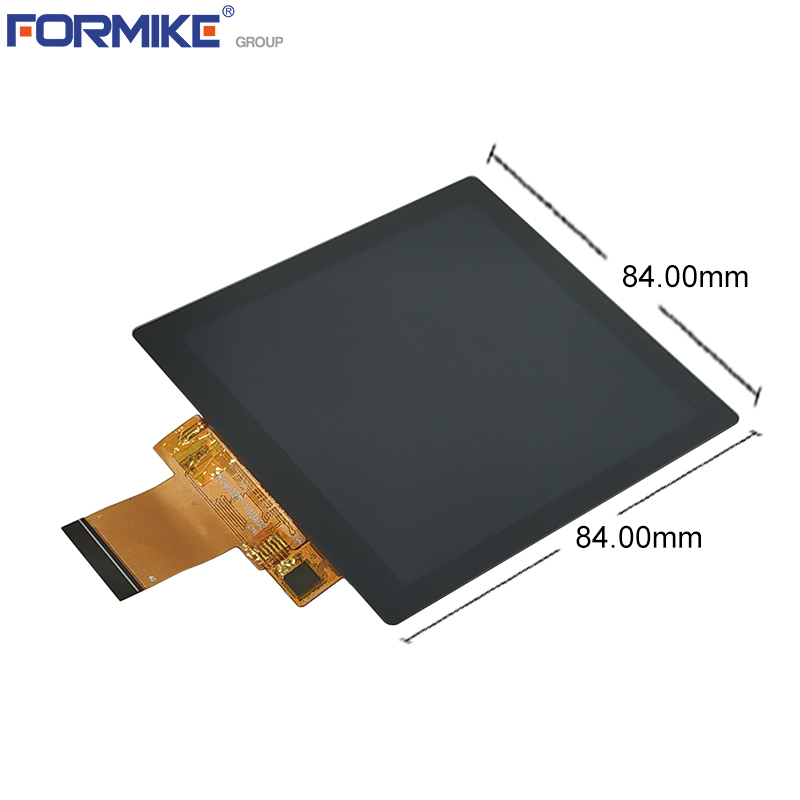

Outline Dimension (mm) 84.00x84.00x3.37
Active Area (mm) 71.86x70.18
Dot pitch (mm) 0.50x0.50
Viewing Direction All
Interface RGB/SPI Interface, 40 Pin
Technology Type a-Si TFT
Brightness (Cd/m2) 300
Contrast Ratio 1200:1
Backlight 8 White LED

Backlight Supply

(Current/Voltage)

 40mA 12V
Touch Screen With Capacitive Touch Panel

* KKWH040ZX07-C02 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 480x480 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

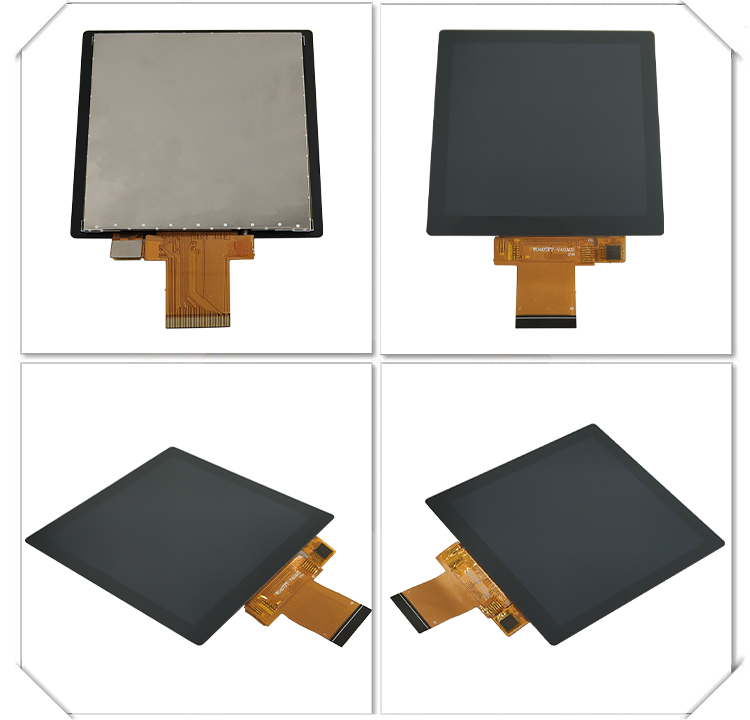

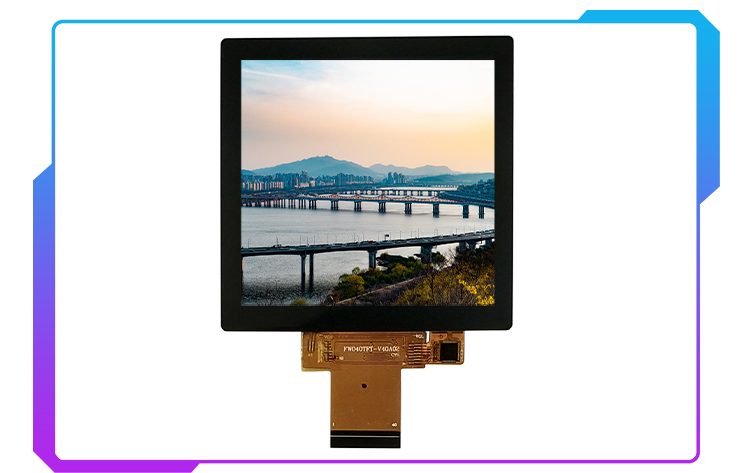

Square LCD TFT Capacitive Touchscreen Display 480x480 LCD 3.95 4 Inch ModuleSquare LCD TFT Capacitive Touchscreen Display 480x480 LCD 3.95 4 Inch Module

Related Products
Welcome to choose our 4.0 Inch TFT LCD Display, we provide optional parameter scheme as follows:
• Resolution: 300*400, 480*480, 480*800
• Touch screen: Without, With capacitive touch panel, With resistive touch screen
• Interface: SPI, MCU, RGB, etc.
Didn't find your match? We can customize LCD solution for you, such as:
Resolution, Touch screen, Interface, FPC, PIN definition, Outline dimension, Viewing area, Active area, Viewing direction, Luminance, Contrast ratio, Backlight, Display mode, Cover lens, Special surface treatment, etc.
Welcome to contact us for more details.
