Specifications
Storage Temperature :
-40°C to +85°C
Supply Ability :
5000000000 pieces/year
Brightness :
High brightness, around 120 cd/m²
Interface :
SPI/I2C
Viewing Angle :
Wide viewing angle, typically 160°
Module Dimensions :
42.07mm x 27.22mm x 1.45mm
Brand Name :
Formike
Model Number :
KWH0154UL03
MOQ :
1 piece
Color :
White (optional blue)
Lifespan :
Over 100,000 hours
Power Consumption :
Low power consumption
Packaging Details :
Tray + Inner Box + Carton
Operating Temperature :
-40°C to +70°C
Controller Ic :
SSD1309
Display Type :
PMOLED
Payment Terms :
T/T, L/C, Credit card, Cash
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Product Name :
1.54Inch OLED Display Module 128x64 OLED I2C SPI Screen with 24 Pin ZIF Connector
Place of Origin :
China
Operating Voltage :
2.8V
Display Size :
1.54 Inch
Resolution :
128x64
Description

1.54Inch OLED Display Module 128x64 OLED I2C SPI Screen with 24 Pin ZIF Connector

1.54Inch OLED Display 128x64 Module I2C SPI Screen With 24 Pin ZIF Connector

Name 1.54Inch OLED Display Module 128x64 OLED I2C SPI Screen with 24 Pin ZIF Connector

Module Size

1.54 inch OLED Module

Dox Matrix

128x64

Display Color

Monochrome (White or blue light)

Dark Room Contrast Ratio

10000:1

Outline Dimension

42.07 x 27.22 x 1.45mm

Active Area(HxV mm)

35.05 x 17.52mm

Response Time

10 μs

Interface

SPI, I2C, 24pin

Drive Duty

1/64 Duty

Brightness

120cd/m2

IC Driver

SSD1309

Supply Current/Voltage

180mA,2.8V

Viewing Angle

Free

Resolution Pitch

0.27x0.27 (mm)

Operation Temperatue

-40~70℃

Storage Temperatue

-40~85℃

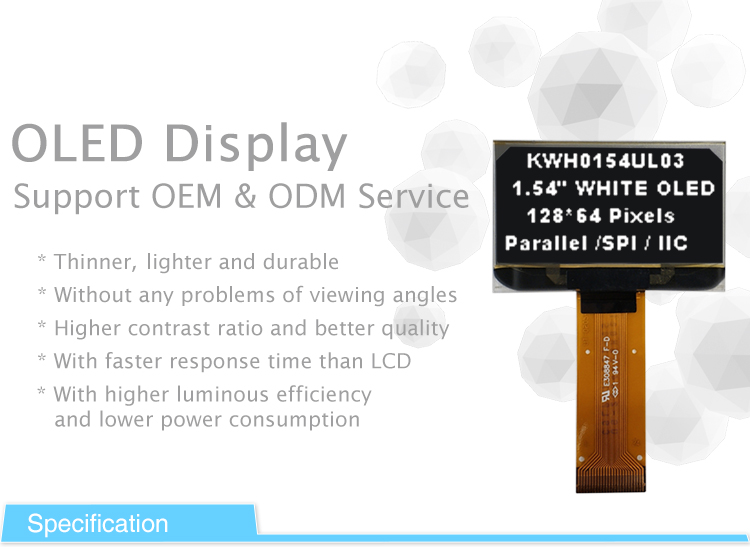

* KWH0154UL02 is a passive matrix monochrome white light (optional blue light) OLED Display.

* It is composed of a Monochrome OLED panel, driver IC, FPC.

* It is 128x64 Resolutions OLED module.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
