Specifications
Viewing Angle :
Free viewing angle
Supply Voltage :
3.1V
Supply Ability :
5000000000 pieces/year
Packaging Details :
Tray + Inner Box + Carton
Product Name :
Round LCD GC9A01 Display 240x240 IPS 1.28 Inch LCD Module with 24Pin SPI Interface
Place of Origin :
China
Controller Ic :
GC9A01
Color :
Color
Dimensions :
35.60mm x 38.10mm x 1.50mm
Display Size :
1.28 inch
Display Mode :
IPS TFT LCD
Brand Name :
Formike
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Interface :
SPI
Shape :
Round LCD Display
Display Type :
TFT
Resolution :
240 x 240
Model Number :
KWH012ST01-F01
Payment Terms :
T/T, L/C, Credit card, Cash
Operating Temperature :
-20°C to 70°C
MOQ :
1 piece
Description

Round LCD GC9A01 Display 240x240 IPS 1.28 Inch LCD Module with 24Pin SPI Interface

Round GC9A01 Display LCD Module 240x240 IPS 1.28 Inch With 24Pin SPI Interface

LCD Name Round LCD GC9A01 Display 240x240 IPS 1.28 Inch LCD Module with 24Pin SPI Interface

LCD Size

1.28 inch LCD Module

Resolution

240(RGB)X240 Resolution

Color Depth

262k

Contrast Ratio

1100:1

Outline Dimension

35.60x 38.10 x 1.50mm

Active Area(HxV mm)

32.40x32.40mm

Viewing Direction

All

Interface

SPI, 24 Pin

Backlight

2 White LED

Brightness

350cd/m2

Operating Temperature

-20℃~70℃

Backlight Supply Current/Voltage

40mA, 3.1V

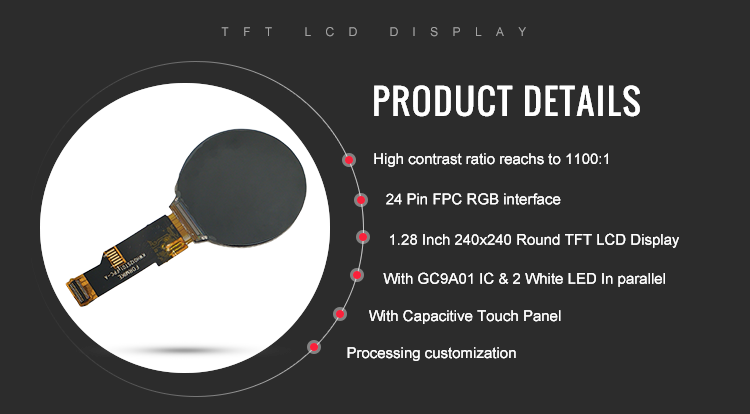

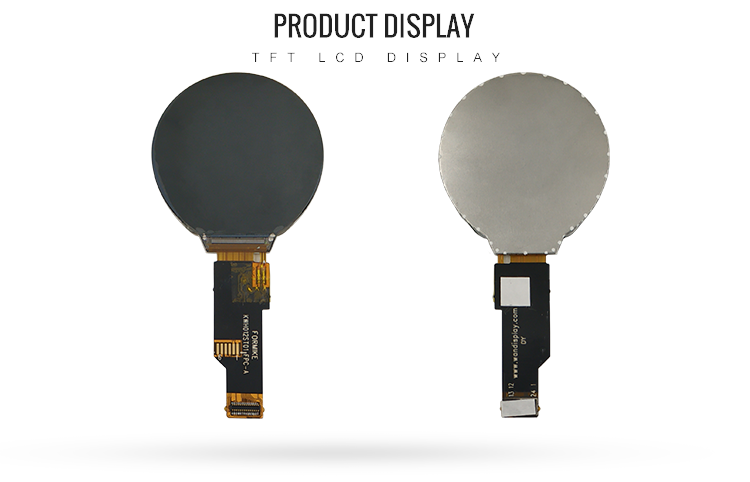

* KWH012ST01-F01 is a small Round Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 240x240 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
