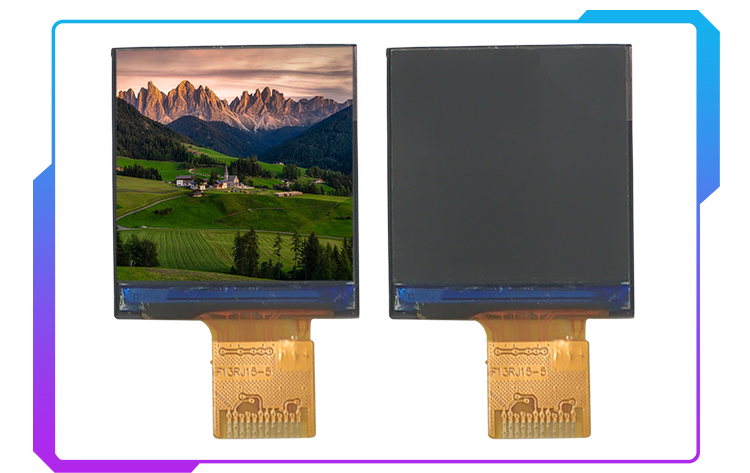

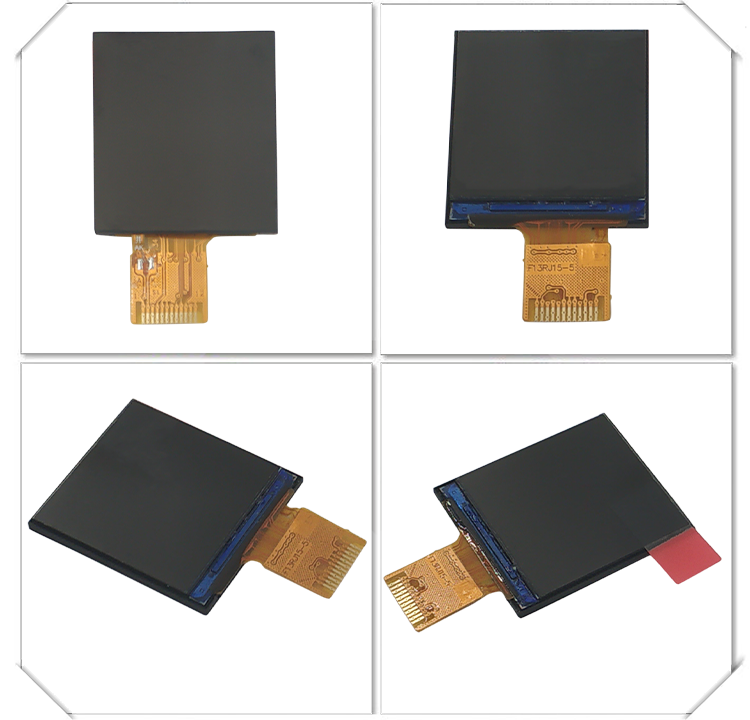

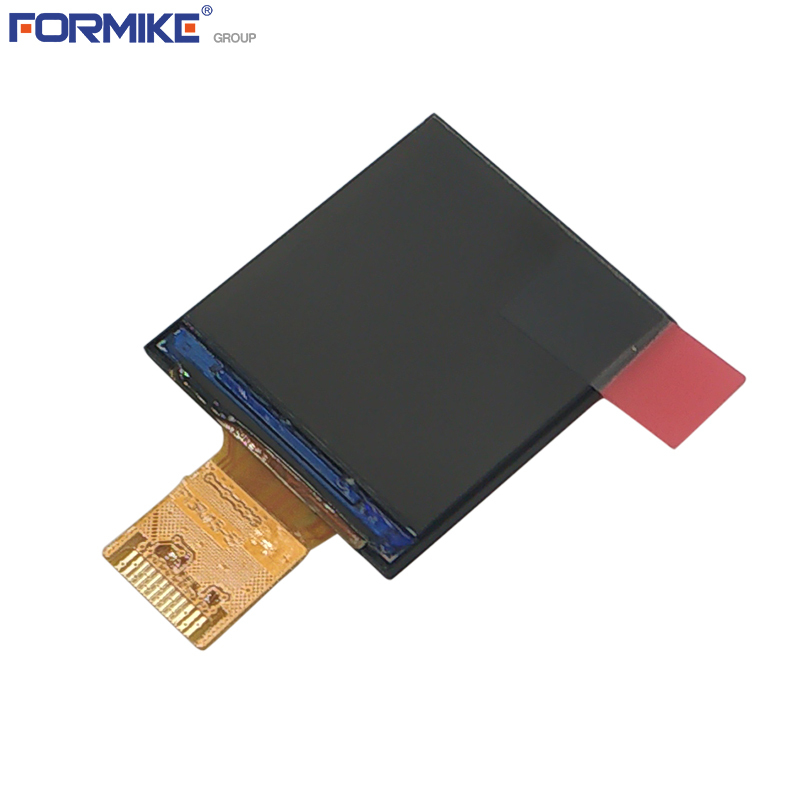

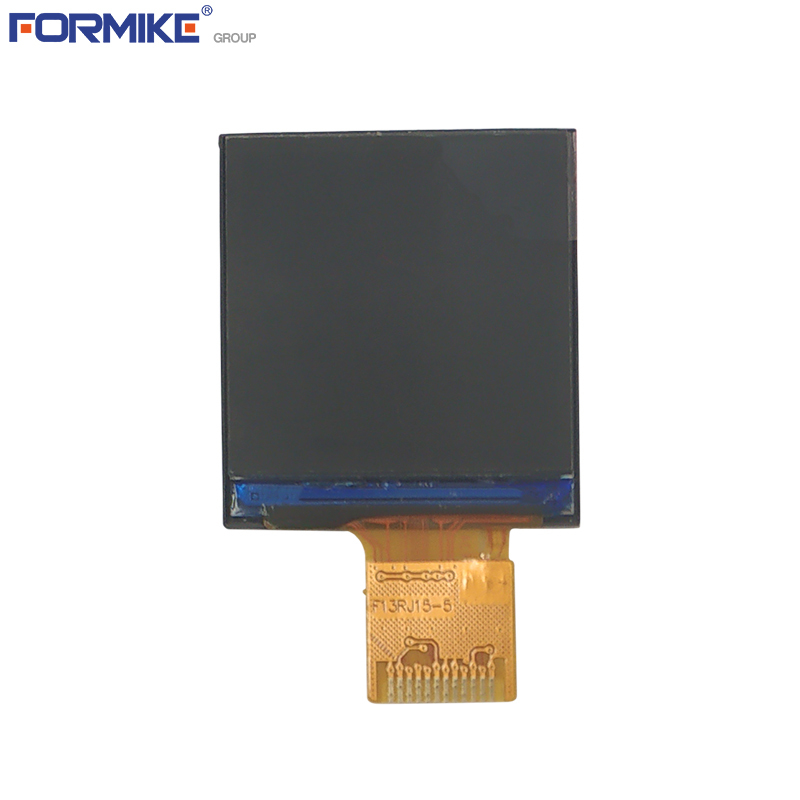

1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
Specifications
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Dimensions :
26.85mm x 29.55mm x 1.98mm
Interface :
SPI
MOQ :
1 piece
Packaging Details :
Tray + Inner Box + Carton
Product Name :
1.3 Inch LCD Display IPS TFT SPI 240x240 LCD Screen
Supply Voltage :
3.2V
Payment Terms :
T/T, L/C, Credit card, Cash
Color :
Color
Operating Temperature :
-20°C to 70°C
Display Mode :
IPS TFT LCD
Brand Name :
Formike
Model Number :
KWH013ST03-F01
Viewing Angle :
Free viewing angle
Display Type :
TFT
Display Size :
1.3 inch
Place of Origin :
China
Controller Ic :
JD9851
Supply Ability :
5000000000 pieces/year
Resolution :
240 x 240
Description

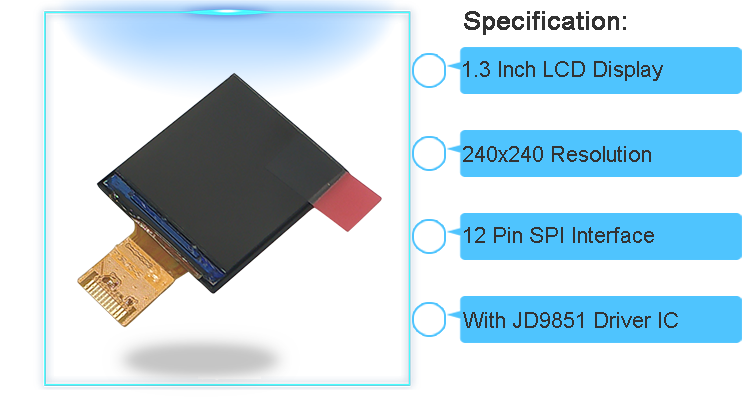

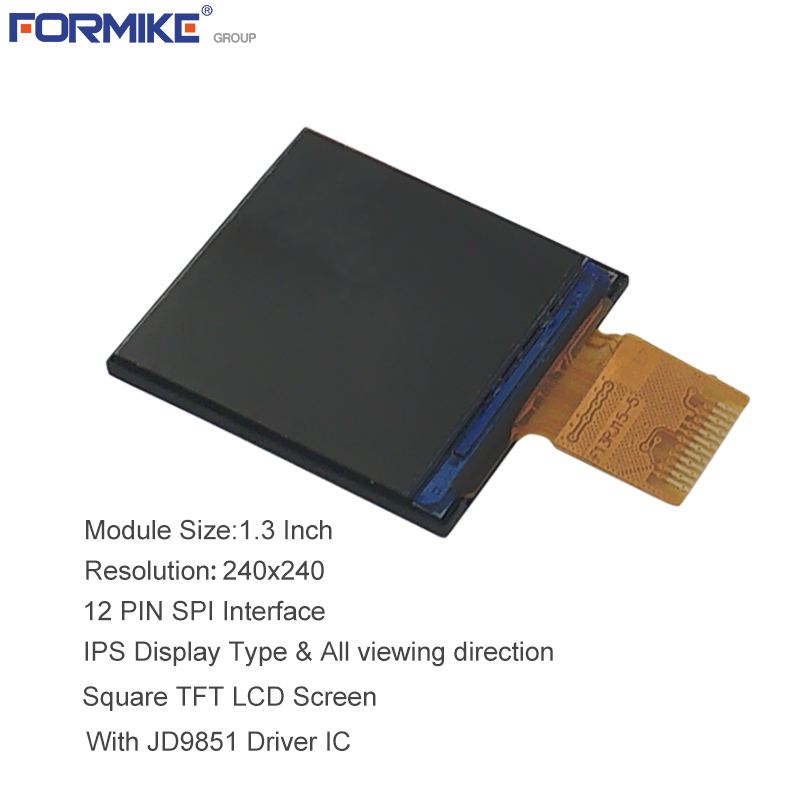

1.3 Inch LCD Display IPS TFT SPI 240x240 LCD Screen

1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240

Product Name 1.3 Inch LCD Display IPS TFT SPI 240x240 LCD Screen
LCD Size 1.3 Inch TFT LCD Display Module
Display Mode IPS
Resolution 240x240

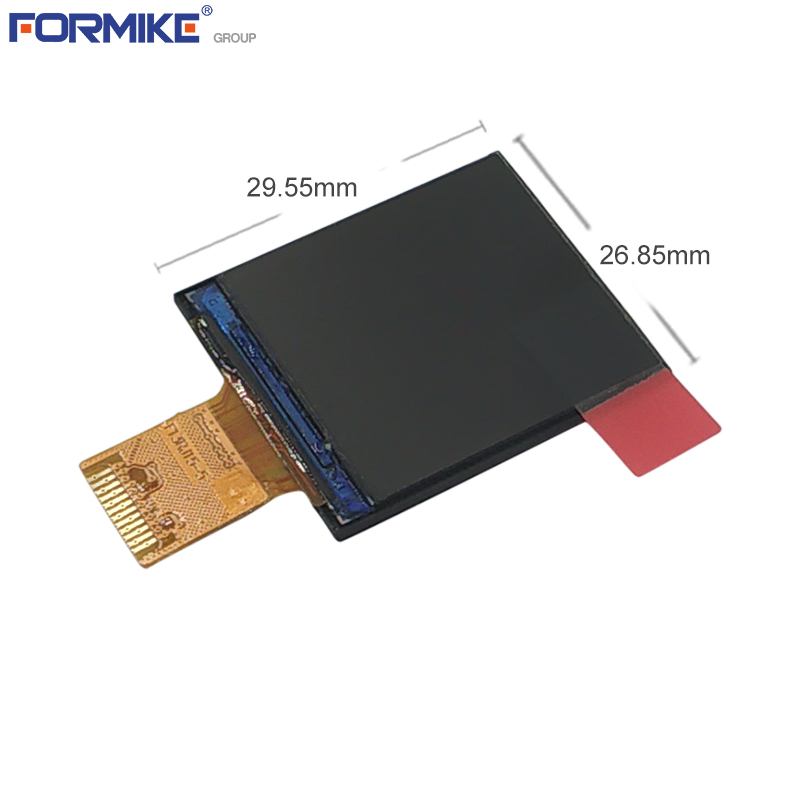

Outline Dimension (mm) 26.85x29.55x1.98
Active Area (mm) 23.40x23.40
Dot pitch (mm) 0.0975x0.0975
Viewing Direction All

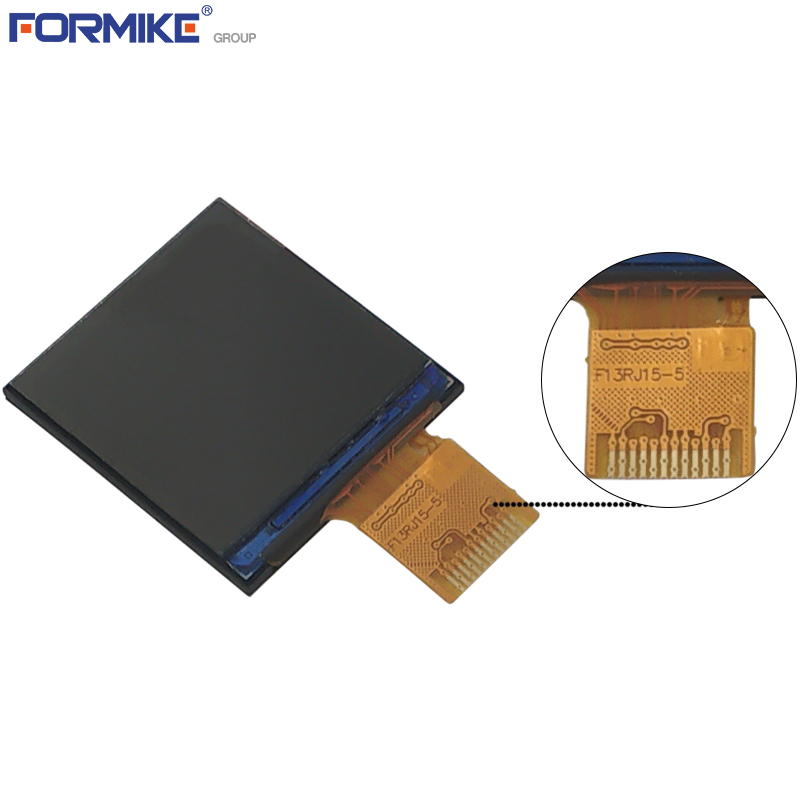

Interface SPI Interface, 12 Pin
Driver IC JD9851
Brightness (Cd/m2) 250
Contrast Ratio 600:1
Backlight 2 White LED in Parallel

Backlight Supply

(Current/Voltage)

 40mA 3.2V
Touch Screen Without

* KWH013ST03-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 240x240 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
