4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
Specifications
Surface hardness :
≥6H
Operating Voltage :
3.3V
Product Name :
4.3 Inch PCAP Touch Glass Capacitive Touch Screen with G+G Structure Type
Place of Origin :
China
Luminousness :
≥85%
Product Size :
115.50mm*77.20mm*1.93mm
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Working Temperature :
-10°C to +70°C
Connection :
FPC
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Payment Terms :
T/T, L/C, Credit card, Cash
Brand Name :
Formike
Ic Controller :
GT911
Supply Ability :
5000000000 pieces/year
Pin :
8 pins
Product Type :
Capacitive Touch Screen
Interface :
I2C
Support Touch: :
5 points
Model Number :
WCT043D-S00
Storage Temperature Range :
-20°C to 70°C
MOQ :
1 piece
Description

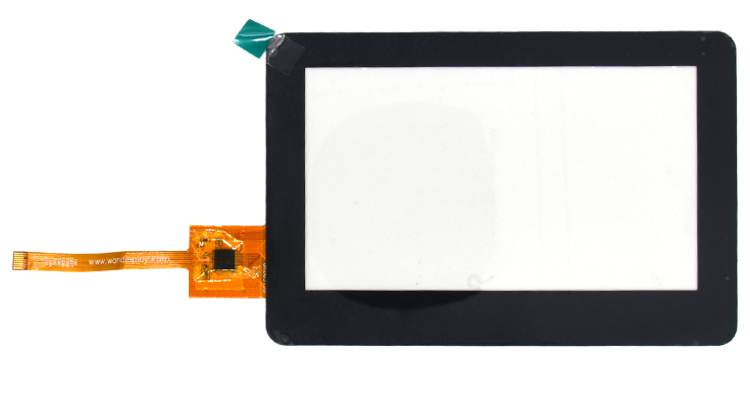

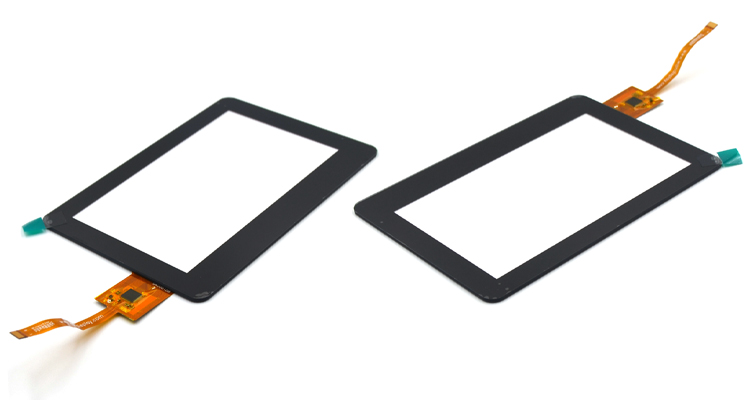

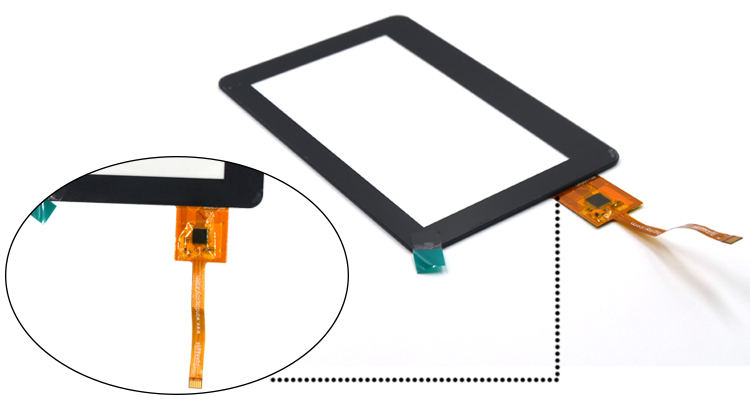

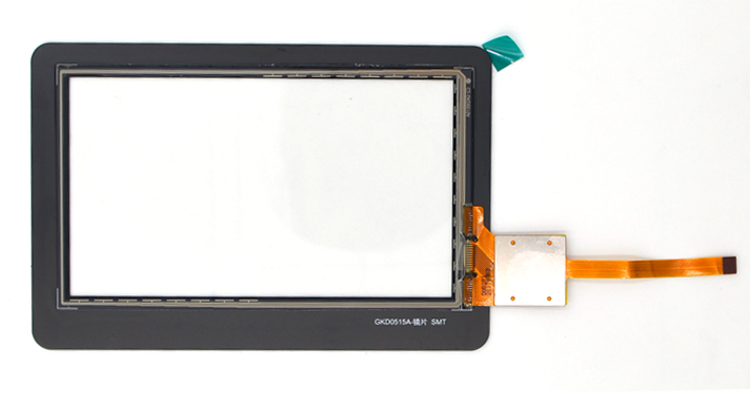

4.3 Inch GT911 PCAP Glass Capacitive Touch Panel Screen With G+G Structure Type
4.3 Inch PCAP Touch Glass Capacitive Touch Screen with G+G Structure Type
• Sensitive and fast response
• Superior image clarity with high light transmission
• Support customization service
Product Name
4.3 Inch PCAP Touch Glass Capacitive Touch Screen with G+G Structure Type
Model
WCT043D-S00
Size
4.3 Inch
Type
Capacitive Touch Panel
Structure type
G+G
Driver IC
GT911
Interface
I2C, 8 Pin
Surface hardness
≥6H
Support touch
5 Points
Transmittance ≥85%
Touch Life 35,000,000 times
Certificate RoHS
Operating voltage DC 3.3V
Operating temperature -10℃~70℃
Strorage temperature -20℃~70℃
Size
TP Outline Dimension
115.50mm*77.20mm*1.93mm
TP Thickness
1.93mm
PET Outline Dimension
115.1mm*76.80mm*0.125mm
PET Thickness
0.125mm
Window Viewing Area
96.04mm*54.86mm
LOCA Thickness
0.15mm
Sensor Thickness
0.55mm
Lens Thickness
1.10mm
• Formike is specialized in producing capacitive touch panel, resistive touch screen, Multi-touch touch screen and other touch screen solutions.
• Fast and sensitive response and professional-grade reliability of our touch panel is our advantage. Furthermore, high touch durability and long term stability with wide temperature.
• We offer 1.44 Inch, 1.69 Inch, 2.4 Inch, 2.8 Inch, 3.2 Inch, 3.5 Inch, 4.3 Inch, 5 Inch, 6.86 Inch, 7 Inch, 8 Inch, 9 Inch and 10.1 Inch Touch Screen Panel for your choice. In addition, customization is available, including size, thickness, bonding and surface treatments, Anti-Glare and Anti-reflective, etc.
Welcome to contact us if you have any inquiry.
