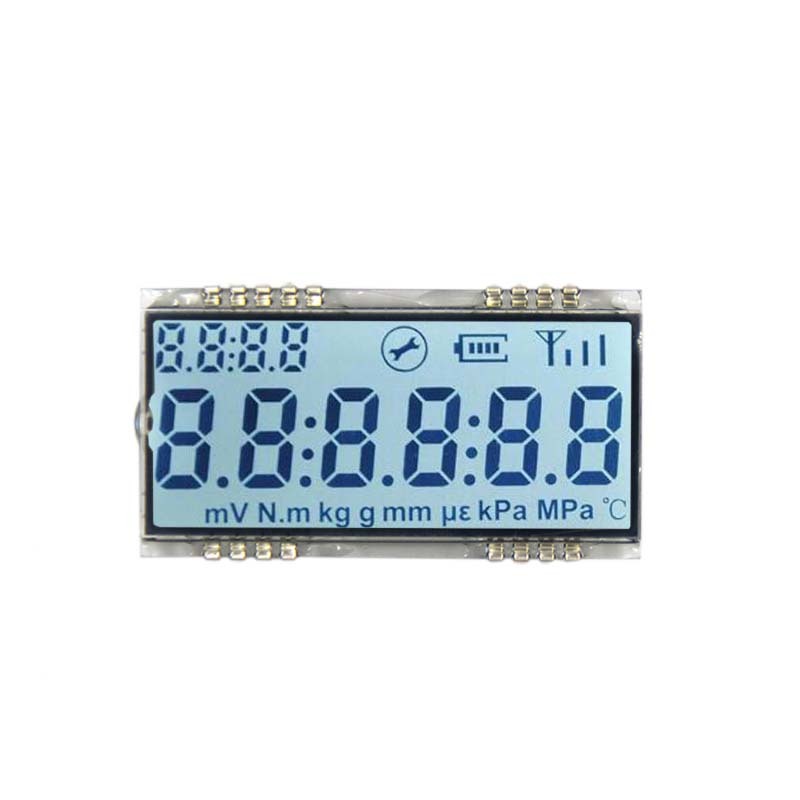

Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V
Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V
Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V
Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V
Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V
Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V
Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V
Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V
Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V
Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V
Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V
Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V
Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V
Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V
Specifications
View Area :
47.0mm*20.0mm
Storage Temp :
-30°c To +90°c
Operating Temp :
-10°c To +80°c
Model Number :
WT1507005A
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Product Name :
Custom LCD TN Positive Reflective 7 Segment LCD Display
Display Mode :
TN
Polarizer Mode :
Reflective
Operating Voltage :
5.0V
Place of Origin :
China
Payment Terms :
T/T, L/C, Credit card, Cash
Outline Dimension :
50.0mm*27.0mm*2.8mm
Brand Name :
Formike
Supply Ability :
5000000000 pieces/year
Viewing Direction :
6 O′clock
Connect Type :
PIN
Packaging Details :
Tray + Inner Box + Carton
Supplier Type :
factory
MOQ :
1 piece
Display Type :
Positive

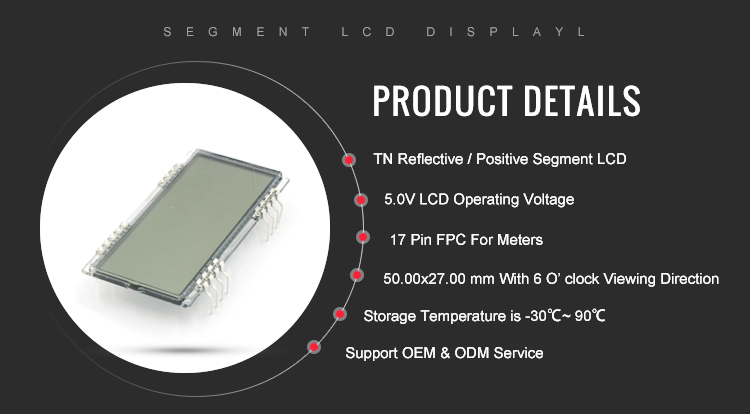

Description

Custom LCD TN Positive Reflective 7 Segment LCD Display

Custom TN LCD Display Positive Reflective 7 Segment Panel 5.0V

LCD NameCustom LCD TN Positive Reflective 7 Segment LCD Display

Display Mode

TN / Positive / Reflective

Connectors

17 Pin

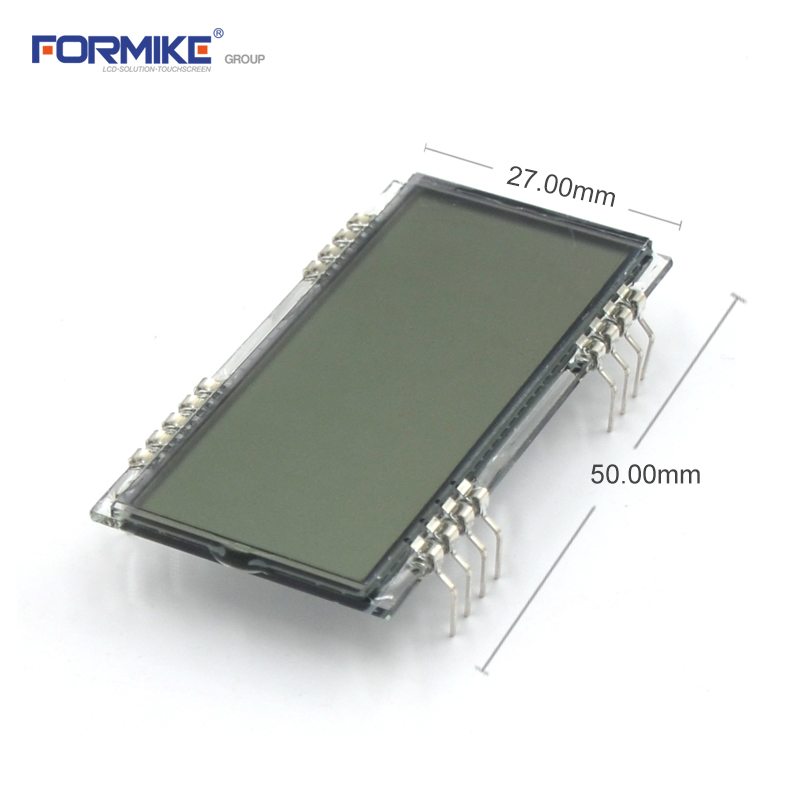

Outline Dimension

50.00 x 27.00 x 2.80mm

Driving Condition

1/4 Duty, 1/3 Bias

Viewing Direction

6 O'clock

Operation Voltage

5.0V

Operating Temperature

-10℃~80℃

Storage Temperature

-30℃~90℃

* WT1507005A is a liquid crystal display (LCD).

* It is composed of a Segment LCD Display.

* Backlight with different brightness options from 150 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
