Specifications
Supply Voltage :
3.2V
Color :
Color
Resolution :
172x320
MOQ :
1 piece
Payment Terms :
T/T, L/C, Credit card, Cash
Interface :
4 Wire SPI
Viewing Angle :
All
Product Name :
1.47 Inch 172x320 Resolution Small TFT Screen SPI Display TFT LCD Touch Screen
Place of Origin :
China
Supply Ability :
5000000000 pieces/year
Display Type :
IPS TFT LCD
Display Size :
1.47 inch
Operating Temperature :
-20°C to 60°C
Dimensions :
22.09mm x 41.97mm x 2.81mm
Model Number :
KWH0147ST02-C01
Controller Ic :
GC9307
Brand Name :
Formike
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Packaging Details :
Tray + Inner Box + Carton
Description

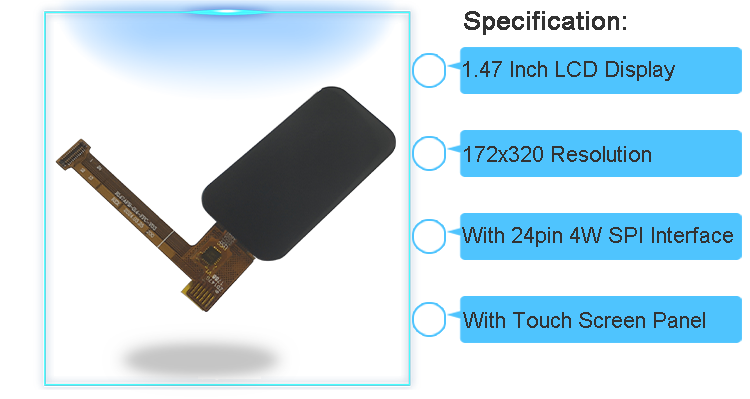

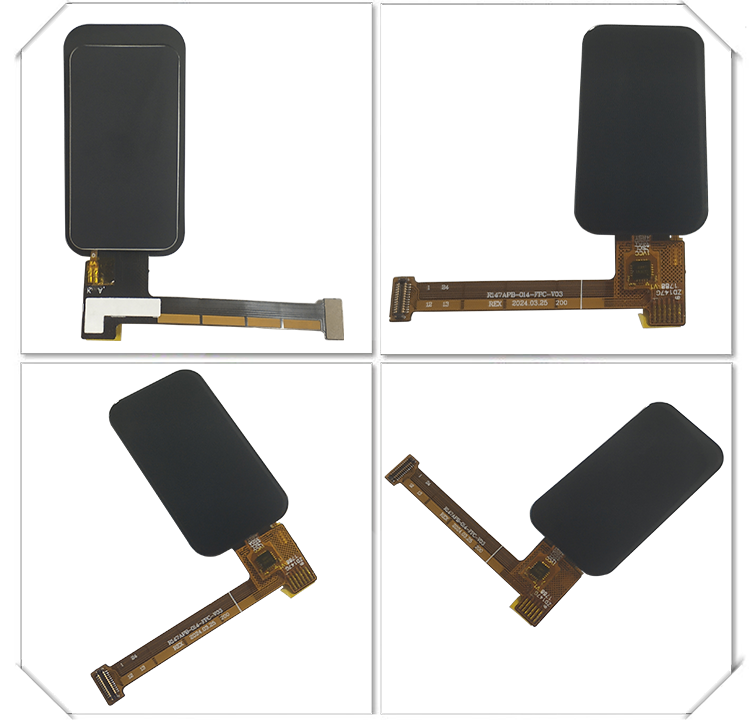

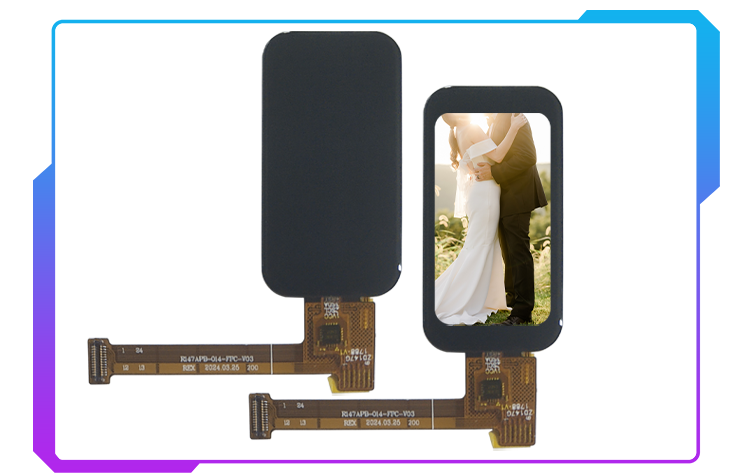

1.47 Inch 172x320 Resolution Small TFT Screen SPI Display TFT LCD Touch Screen

Small 1.47 Inch 172x320 SPI Touch Display Module TFT LCD Touch Screen Custom

Product Name 1.47 Inch 172x320 Resolution Small TFT Screen SPI Display TFT LCD Touch Screen
LCD Size 1.47 Inch IPS TFT LCD Display Module
Display Mode Transmissive, IPS
Resolution 172x320
Outline Dimension (mm) 22.09x41.97x2.81
Active Area (mm) 17.65x32.82
Dot pitch (mm) 0.1026x0.1026
Viewing Direction ALL
Interface 4W SPI Interface, 24 Pin
Display Mode 262K
Brightness (Cd/m2) 350
Contrast Ratio 1300:1
Backlight 3 White LED

Backlight Supply

(Current/Voltage)

 60mA 3.2V
Touch Screen With capacitive touch panel

* KWH0147ST02-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It's widely used for charging case, handheld device, wearable device, industry, medical, communication device, etc.

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 172x320 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
