Specifications
Controller Ic :
ST7701S
Dimensions :
71.80mm x 71.80mm x 3.58mm
Supply Voltage :
2.8V~3.2V
Payment Terms :
T/T, L/C, Credit card, Cash
Interface :
40 Pin, 18 BIT RGB
Packaging Details :
Tray + Inner Box + Carton
Brand Name :
Formike
Model Number :
KWH021ST01-C01
Product Name :
Round TFT LCD 480x480 Display 2.1 LCD Module With 40pin 18 BIT RGB Interface And Touch Screen
Color :
Color
Supply Ability :
5000000000 pieces/year
Resolution :
480 x 480
Display Size :
2.1 inch
Place of Origin :
China
Viewing Angle :
All
Display Type :
Round IPS TFT LCD Display
MOQ :
1 piece
Operating Temperature :
-20°C to 60°C
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Description

Round TFT LCD 480x480 Display 2.1 LCD Module With 40pin 18 BIT RGB Interface And Touch Screen

480x480 Round TFT Display 2.1 LCD Module With 40pin 18 BIT RGB Interface Touch Screen

LCD Name Round TFT LCD 480x480 Display 2.1 LCD Module With 40pin 18 BIT RGB Interface And Touch Screen

LCD Size

2.1 inch LCD Module

Resolution

480X480

Outline Dimension

71.80x 71.80 x 3.58mm

Active Area(HxV mm)

53.28x53.28mm

Viewing Direction

All

Interface

18 BIT RGB, 40 Pin

Backlight

4 White LED

Brightness

400cd/m2

Operating Temperature

-20℃~60℃

Backlight Supply Current/Voltage

80mA, 2.8V~3.2V

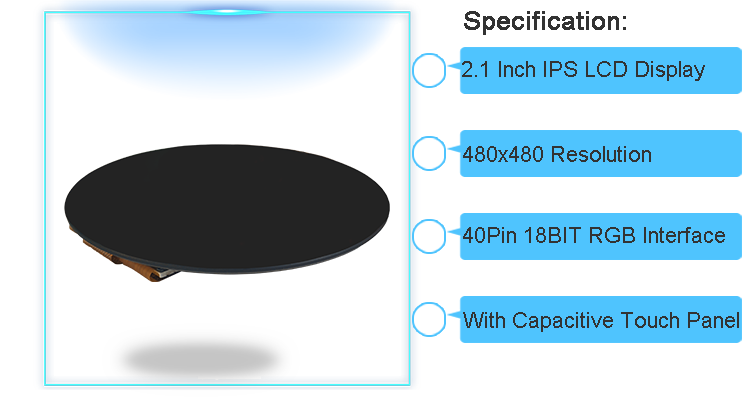

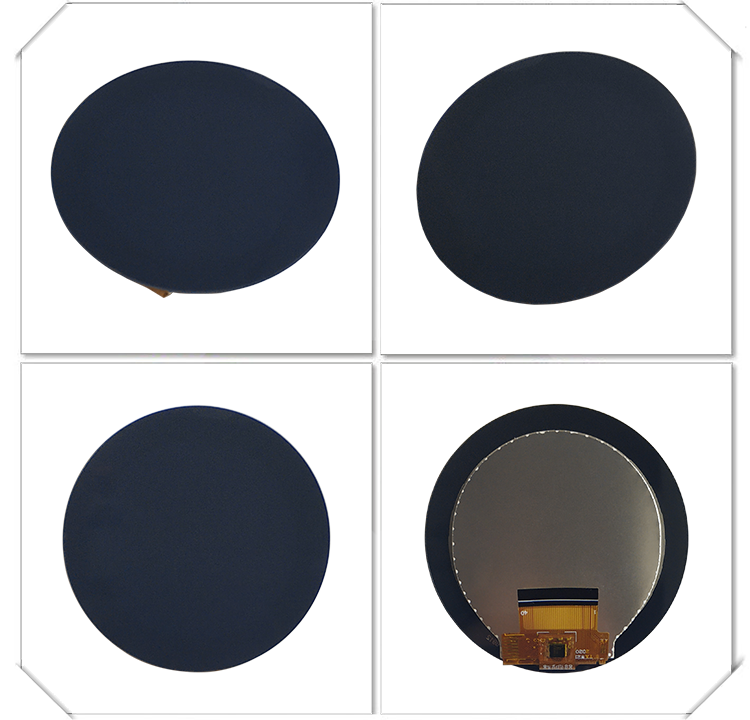

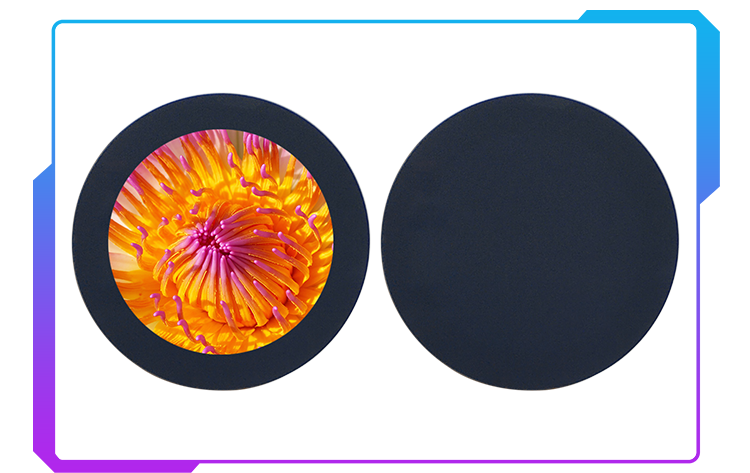

* KWH021ST01-C01 is a small Round Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 480x480 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

480x480 Round TFT Display 2.1 LCD Module With 40pin 18 BIT RGB Interface Touch Screen480x480 Round TFT Display 2.1 LCD Module With 40pin 18 BIT RGB Interface Touch Screen
