Specifications
Model NO. :
CPD15A
Lift height :
3000~7000mm
Condition :
New
Min. Turning Radius :
1425mm
Min. Width of Right Angle Stacking :
2931mm
Standard :
Ce ISO SGS
Fork :
1070mm
Tyre :
Pneumatic or Solid
Control :
Curtis Zapi Sme
Battery :
24V/300ah
Capacity :
1500kgs
Battery Charger :
Free
OEM and Spare Parts :
Available
Transport Package :
Standard Sea Freight Packing
Specification :
steel+rubber
Trademark :
OMFT
Origin :
China
HS Code :
842710
Supply Ability :
7000 PCS/Year
Place of Origin :
China
Delivery Time :
Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T
MOQ :
1 set
Description

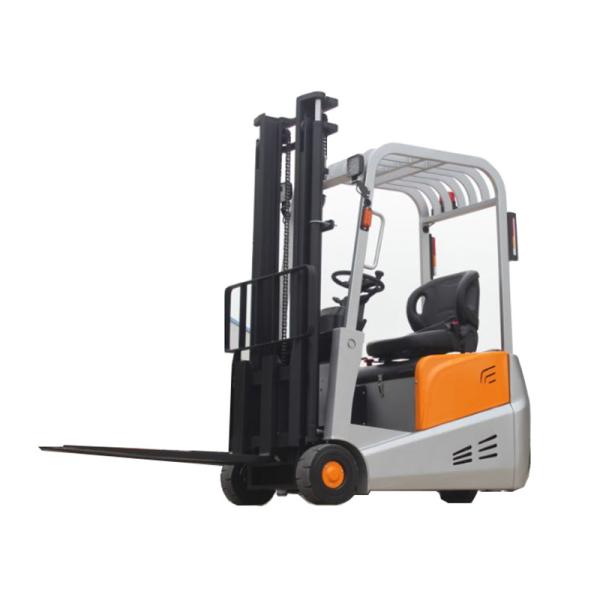

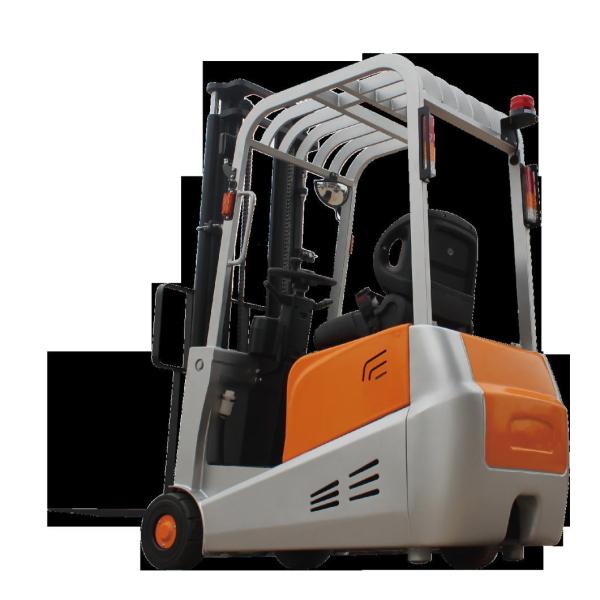

1.5Tton 1500kgs 3 wheels small Omft Electric Forklift Truck with AC System
1.5ton 1ton 2ton 2.5ton 3ton 3.5ton Electric Forklift Truck Battery Forklift Lifting Height 3000mm 350mm 4000mm 4500mm 5000mm 5500mm 6000mm


AC System Battery 24V/300ah Fork 1070mm 1.5ton 3 Wheels Small Omft Electric Forklift Truck
AC System Battery 24V/300ah Fork 1070mm 1.5ton 3 Wheels Small Omft Electric Forklift Truck

Characteristic
Name Unit 3-wheel Counterbalanced weight electric forklift
Model CPD15A
Power type Electric
Operation type Seated type
Load capacity Q(t) 1500
Load center C(mm) 500
Front overhang X(mm) 196
Wheel base Y(mm) 1130
Wheel
Driving wheel size ∅×w(mm) 230*75
Bearing wheel size ∅×w(mm) 305*127
wheels (x= drive wheel, balance wheel/bearing wheel) 1X/2
Dimensions
Height--Mast Lowered h1(mm) 2110
Lifting height) h3(mm) 3000
Overall length l1(mm) 2657
Length of body l2(mm) 1587
Overall width b1(mm) 850
Fork dimensions s/e/l(mm) 35/100*1070
Fork spread b5(mm) 210-566
Min ground clearance m2(mm) 85
Channel width,pallet size 1000*1200mm Ast(mm) 2931
Minimum turn radius Wa(mm) 1425
Performance
Driving speed, no load/full load km/h 5.2/5
Lifting speed, no load/full load m/s 135/90
Descending speed, no load/full load m/s 85/120

Max climbing capacity, no load/full load		 % 8/6
Parking brake Hydraulic and electromagnetic
Power
Driving motor kw 2.5
Lifting motor kw 3
Battery voltage/capacitance V/Ah 24V/300Ah
Weight
Self weight including battery kg 2150
ADVANTAGES:
  1. SME AC controller, integrated control of CAN bus; precise operation, convenient maintenance and stable performance;
  2. Strong power, leading performance in driving, lifting and climbing;
  3. Ergonomic handle&steering wheel design, buttons are easy to operate; better driving comfort;
  4. 48V/450Ah large-capacity lead-acid battery,suitable for high using frequency;
  5. Explosion-proof valve is installed at the bottom of the lifting cylinder, even if the oil pipe is broken, the door frame will not fall rapidly;
  6. Integral welding structure of roof guard frame and body, high overall strength;
  7. Small turning radius, Efficient and convenient;
  8. Load sensing hydraulic steering system, lightweight, low noise, more labor-saving;
  9. OPS(operating presence sensing),safer and more user-friendly (optional);
  10. Solid tire, strong bearing capacity;
  11. The whole car is equipped with LED lights, energy saving and high efficiency.

AC System Battery 24V/300ah Fork 1070mm 1.5ton 3 Wheels Small Omft Electric Forklift Truck

WHY CHOOSE US?
1.Strong production, research and development, after-sales capacity
We have 35, 000 square meters workshop and 100 R&D staff. We have been specializing in the forklift industry for more than 20 years. 20,000 units production capacity per year. OEM is also welcomed.

2.High quality source of raw materials and spare parts
Our spare parts and steel are all from well-known manufacturers at home and abroad with reliable quality. Besides, we are very professional in painting, welding and other production processes. Our products are both excellent in appearance and internal structure.

3.Competitive price and fast delivery
For standard forklift, normally we have them in store. If not, we can finish production within 1 week. Even for high mast and other non-standard forklift,we can finish production within 2 weeks. Our price is transparent and competitive. We are not the cheapest in the market, but we ensure you that our products worth every penny.

4.Professional technical guidance and use training
We have detailed operation instructions and video instructions for each product. If you have any question during the use, please feel free to contact us. We have professional personnel to answer them one by one.

5.Warranty and after-sales service
2000h or 2 years warranty time. Free parts change during warranty time.
Strict quality testing was conducted for each truck before shipping to ensure the safety of users.
In order to ensure our customer has a good using feeling, we send some spare parts for free with every forklift, eg: filters, seal, cylinder, etc.
In future, if customers need any spare parts, we will arrange shipping within 48h.

6.Complete product line
Diesel Forklift:1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 3.8ton; 4ton; 4.5ton; 5ton; 6ton; 7ton; 8ton; 10ton; 12ton; 14ton; 15ton;16ton; 25ton; 28ton; 33ton; 42ton;45ton;48ton.
LPG&Gasoline Forklift :1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 4ton; 5ton; 6ton; 7ton.
Electric Forklift: 1ton; 1.5ton; 2ton; 2.5ton;3ton; 3.5ton; 4ton; 5ton; 6ton.
Warehouse and material handling equipment: Manual hand pallet truck; electric pallet truck; electric pallet stacker; electric reach stacker; VNA(very narrow aisle) 3way or 4ways stacker; tow tractor; AGV equipments
Aerial platform:Scissor lifting platform 3.9M; 5.8M; 8M;10M;12M;14M
Rough terrain Off-road forklift and side forklift truck: 2ton to 12 ton

7.Logistics
It doesn't matter whether you have import qualification or not, we can solve the logistics problem for you. We have reliable logistics team and can send the goods directly to your warehouse if you need.
Also, we can do FOB, CIF and FCA term as you required.
