1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Specifications
Place of Origin :
china
Packaging Details :
shipped by container
Supply Ability :
500/Months
Price :
USD 6000-9000
Brand Name :
snsc
Certification :
CE/ISO
MOQ :
1 unit
Delivery Time :
30-45 Days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction works
Showroom Location :
United States, Italy
Condition :
New
Power Souce :
AC Motor
Fork Length :
1220MM
Fork Width :
122MM
Overall Dimensions :
2565*1290*2470mm
Warranty :
1 Year
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Weight (KG) :
3250 kg
product name :

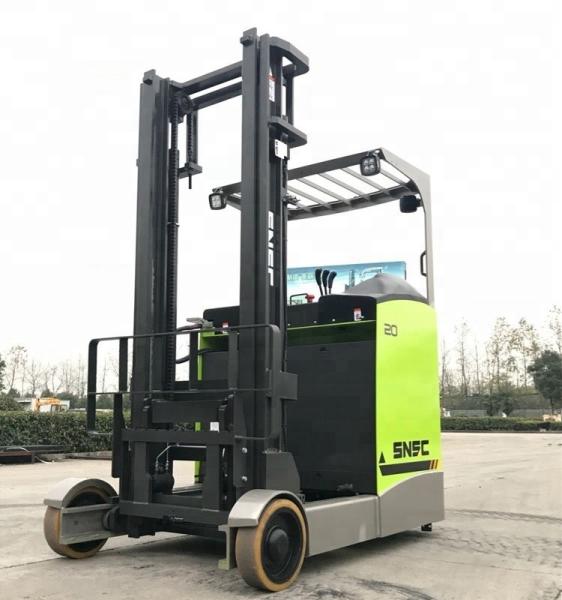

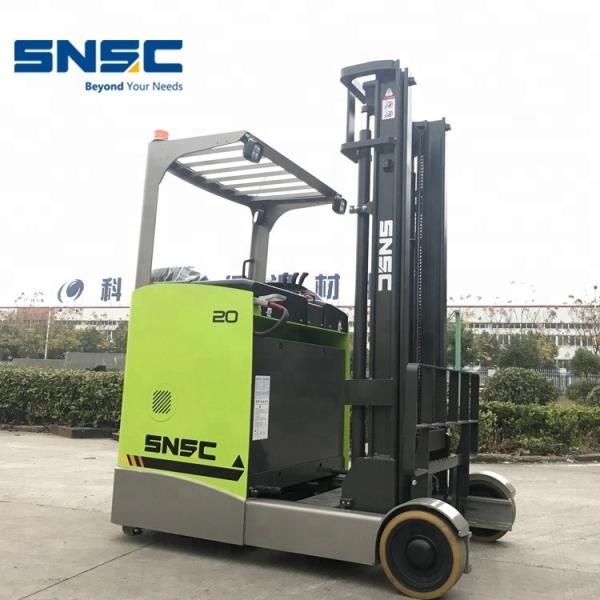

SNSC 1.6 ton 2 ton battery powered electric reach truck
After-sales Service Provided :
Overseas third-party support available
Controller :
Imported USA Curtis
Redirector :
USA Eaton Redirector
Mast :
2-3 stages
Transmission type :
Automatic Japan shimadzu tranmission
Tire :
Pneumatic Standard
Other option :
solid tire/fork extension/high exhaust ect
Attachement :
side shifter / positioner /clamp ect
Lifting height :
3-6m
Port :
Shanghai/Qingdao/Tianjin/Wuhu
Description
Product Description
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1
Features
Operating Type
-
Sit-on
2
Rated load
kg
2000
3
Load center
mm
600
4
Weight(in battery)
kg
3450
5
Size
LxWxH
mm
2565x1290x2470
6
Fork size
LxWxT
mm
1220x122x40
7
Wheel Base
mm
1510
8
Lifting height
mm
5600
10
Free lifting height
mm
1570
11
Door frame angle
1/3
12
Reach distance
mm
600
14
Support Arm Medial Width
mm
920
15
To The Length Of The Support Arm
mm
1920
17
Min. Ground Clearance
mm
90
18
Motor
Power of driving motor
kw
6.4
19
Power of lifting motor
kw
11.5
20
Battery voltage/Rated capapcity
V/Ah
48/500
21
Drive control mode
MOSFET
22
Weight(battery)
kg
890
23
Working Performance
Right Angle Stacking Aisle Width
Pallet Size: 800*1200 The Edge of The Size
mm
2380
24
Turning Radius
mm
1725
25
Travel Speed Full Load/No Load
kw/h
mm
9.5/10.5
26
Lifting Speed Full Load /No Load
mm/
kg
260/360
27
Descent Speed Full Load/No Load
mm/
V/Ah
500/400
28
Grade Ability Full Load/No Load
%
kw
10/15
Detailed Images
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
2 driving motor+ 1 steering motor
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Double Curtis controller
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Chinese best brand battery
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Mounted right operation handle
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
LED rainproof Dispaly screen
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Full LED Light
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire

Toyota comfortable seat

1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire

Electric Steering
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire

Camera
Optional Attachments
SNSC forklift can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast,
bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, cabin, etc.
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Quality Control
SNSC Forklifts have strict quality control system. Although strict quality control has been carried out during the production process, to ensure our customers can receive high performance forklifts, all of our forklifts will be tested again before delivery.
Our quality inspection is divided into indoor inspection and outdoor inspection. Indoor testing includes braking performance, the inclination angle of mast, detection of chassis oil leakage, counterweight, etc. Outdoor testing includes loading, lifting, tilting, turning, climbing, etc.
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Tilt angle test
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Wheel hug test
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Brake Line Test
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Climbing test
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Lifting Test
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Turning Test
Package and Delivery
3 wheel electric 1.6ton battery operated forklift with cheap price Shipping with Tool Box, Forklift truck Catalog, Gloves and Forklift truck Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

Packaging&Shipping 1*20'GP - 4 Units, 1*40'GP - 6 Units
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Successful Cases
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
SNSC --"Beyond your needs!"
SNSC as a professional manufacturer of industrial vehicles, offer your various solutions for moving and stocking materials, such as diesel forklifts from 1.5t to 10t, electric forklifts from 1t to 3.5t, LPG gasoline electric stacker, warehouse trucks.
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6ton Three wheel electric forklift to Argentina
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.8on Three wheel electric forklift to Algeria
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
2ton Three wheel electric forklift to Austrila
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6ton Three wheel electric forklift to Turnisa
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
2ton Four wheel electric forklift to Canada
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6Ton Three wheel electric forklift to Turnisato Bangaladesh
Our Factory
We are top 3 in Chinese forklift manufactures and top 20 in the world,over 300 employees,10,000 units forklift truck production capacity per year,5000 sets export volume.

our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Material Preparation Workshop
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Structure Workshop
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Painting Workshop
1.6 Ton 2 Ton Reach Truck Electric SNSC Forklift With Pneumatic Standard Tire
Assembly Workshop
