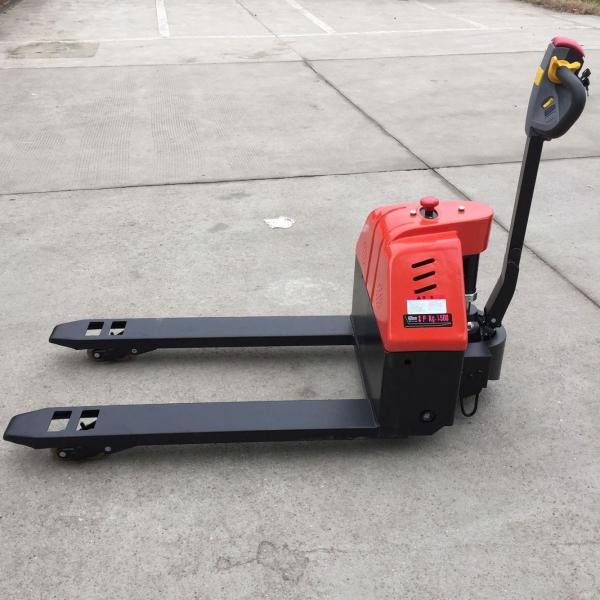

1.5T Pedestrian Walkie Rider Electric Pallet Truck 1500kg
1.5T Pedestrian Walkie Rider Electric Pallet Truck 1500kg
1.5T Pedestrian Walkie Rider Electric Pallet Truck 1500kg
1.5T Pedestrian Walkie Rider Electric Pallet Truck 1500kg
1.5T Pedestrian Walkie Rider Electric Pallet Truck 1500kg
1.5T Pedestrian Walkie Rider Electric Pallet Truck 1500kg
Specifications
Brand Name :
JAC
Model Number :
CBD15
Certification :
CE/SGS/ISO 9001/ISO 14001/SGS
Place of Origin :
Hefei, China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
8 work days
Rated traction weight :
1500kg
Power :
electric
Battery :
Lead-acid battery
Lowered hength :
85mm
Load centre :
600mm
Wheels type :
PU
Lift :
200mm
Min.Turning radius :
1434mm
Width of forks :
560/685mm
Fork dimensions :
50/150/1150mm
Battery voltage :
24V
Battery rated capacity :
2*12/75Ah
Description

1.5T pedestrian Walkie Rider Electric Pallet Truck 1500kg

Characteristics 1.1 Manufacturer Unit JAC
1.2 Model 　 CBD15
1.3 Power unit 　 electric
1.4 Operation 　 pedestrian
1.5 Rated traction weight kg 1500
1.6 Load centre mm 600
1.7 Axle centre to fork face mm 944
1.8 Wheel base mm 1267
Weights 2.1 Service weight with battery kg 190/230
Wheels/Tyres 3.1 Wheels type 　 PU
3.2 Driving wheel size 　 Φ210×70,1
3.3 Bearing wheel size 　 φ80×60,4
3.4 Wheels, number front/rear (x = driven) 　 4/1x
3.5 Track width mm 410/535
Dimensions 4.1 Lift mm 200
4.2 Overall height(With handle) mm 612/1195
4.3 lowered hength mm 85
4.4 Overall length mm 1624
4.5 Length to fork face mm 474
4.6 Overall width mm 560/685
4.7 Fork dimensions s/e/l (mm) 50/150/1150
4.8 Width of forks mm 560/685
4.9 Min.Ground clearance mm 35
4.1 Aisle width with pallet 1000 x 1200 across forks mm 1824
4.11 Aisle width with pallet 800 x 1200 along forks mm 1874
4.12 Min.Turning radius mm 1354
Performance 5.1 Travel speed,laden/unladen mm 4.2/4.5
5.2 The max Lifting speed, laden/unladen mm 27/33
5.3 Lowering speed, laden/unladen mm 33/23
5.4 Maximum climbing ability, with/without load mm 6/8
5.5 Service brake 　 Electromagnetic
Drive 6.1 Drive motor, 60 minute rating v/kw 24V/0.75kw
6.2 Lift motor rating at S3 15% v/kw 24V/0.8kw
6.3 Battery voltage/rated capacity v/Ah 2×12V/75Ah
6.4 Battery weight (± 5%) kg 40
Others 7.1 Type of drive control 　 DC
7.2 Noise level at operator‘s ear dB(A) 67
7.3 Steering type 　 Mechanical steering

1.5T Pedestrian Walkie Rider Electric Pallet Truck 1500kg

1.5T Pedestrian Walkie Rider Electric Pallet Truck 1500kg


1.5T Pedestrian Walkie Rider Electric Pallet Truck 1500kg

1.5T Pedestrian Walkie Rider Electric Pallet Truck 1500kg
