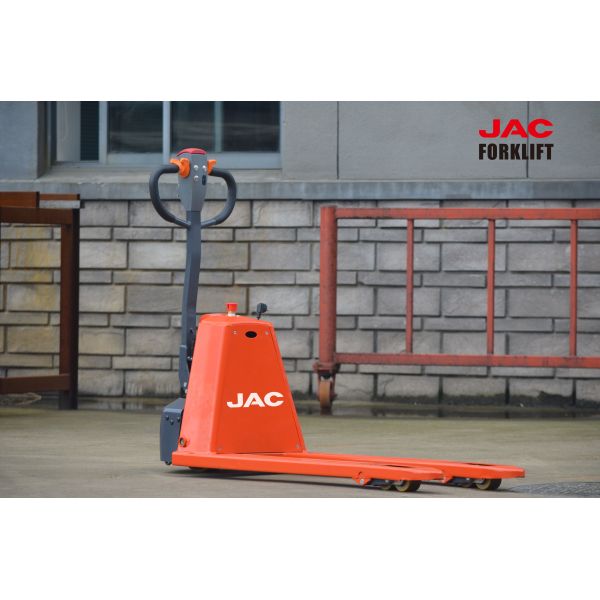

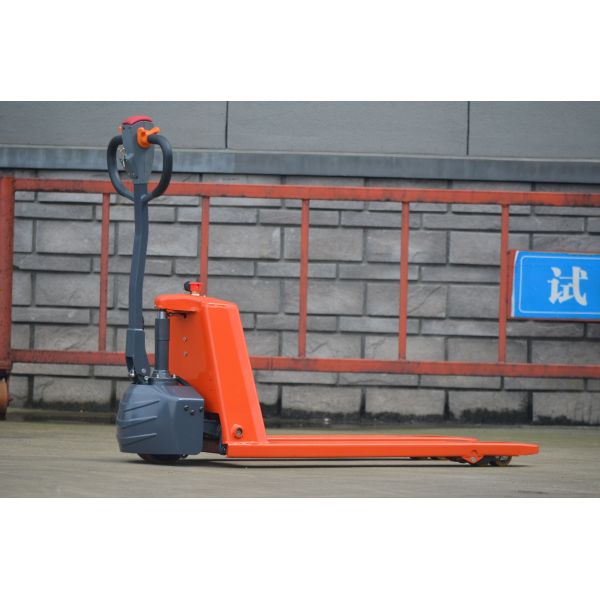

1.7T Warehouse Electric Pallet Truck stacker 1700kg
1.7T Warehouse Electric Pallet Truck stacker 1700kg
1.7T Warehouse Electric Pallet Truck stacker 1700kg
1.7T Warehouse Electric Pallet Truck stacker 1700kg
Specifications
Brand Name :
JAC
Model Number :
CBD17
Certification :
CE/SGS/ISO 9001/ISO 14001/SGS
Place of Origin :
Hefei, China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
8 work days
Rated traction weight :
1700kg
Power :
electric
Battery :
Lead-acid battery
Lowered hength :
85mm
Load centre :
600mm
Wheels type :
PU
Lift :
200mm
Min.Turning radius :
1400mm
Width of forks :
550/685mm
Fork dimensions :
50/150/1150mm
Battery voltage :
24V
Battery rated capacity :
2*12/32Ah
Description

1.7T Warehouse Electric Pallet Truck Stacker 1700kg

Characteristics 1.1 Manufacturer 　 JAC
1.2 Model 　 CBD17
1.3 Power unit 　 电动
1.4 Operation 　 步行
1.5 Rated traction weight Q (t) 1.7
1.6 Load centre c (mm) 600
1.7 Axle centre to fork face x (mm) 944
1.8 Wheel base y (mm) 1243
Weight 2.1 Service weight with battery kg 148
Wheels/Tyres 3.1 Wheels type 　 PU
3.2 Driving wheel size Φ×w(mm)　 Φ210×70
3.3 Bearing wheel size Φ×w(mm)　 Φ80×60
3.4 Wheels, number front/rear (x = driven) 　 1x/4
3.5 Track width b11 (mm) 400/535
Dimensions 4.1 Lift h3 (mm) 200
4.2 Overall height(With handle h14 (mm) 740/1120
4.3 lowered hength h13 (mm) 85
4.4 Overall length l1 (mm) 1606
4.5 Length to fork face l2 (mm) 456
4.6 Overall width b1/ b2 (mm) 550/685
4.7 Fork dimensions s/e/l (mm) 50/150/1150
4.8 Width of forks b5 (mm) 550/685
4.9 Min.Ground clearance m2 (mm) 35
4.10 Aisle width with pallet 1000 x 1200 across forks Ast (mm) 1810
4.11 Aisle width with pallet 800 x 1200 along forks Ast (mm) 1860
4.12 Min.Turning radius Wa (mm) 1400
Performance 5.1 Travel speed,laden/unladen (km/h) 4.2/4.5
5.2 Maximum climbing ability, with/without load (%) 5/10
5.3 Service brake 　 Electromagnetic
Drive 6.1 Drive motor, 60 minute rating (kW) 0.75
6.2 Lift motor rating at S3 15% (kW) 0.8
6.3 Battery according to DIN 43531/35/36 A,B,C,no 　 no
6.4 Battery voltage/rated capacity (V/Ah) 2*12/32
6.5 Battery weight (± 5%) (kg) 10.1*2
Others 7.1 Type of drive control 　 DC
7.2 Noise level at operator‘s ear (dB(A)) ≤70
7.3 Type of drive steering 　 Mechanical

1.7T Warehouse Electric Pallet Truck stacker 1700kg

1.7T Warehouse Electric Pallet Truck stacker 1700kg1.7T Warehouse Electric Pallet Truck stacker 1700kg

1.7T Warehouse Electric Pallet Truck stacker 1700kg
