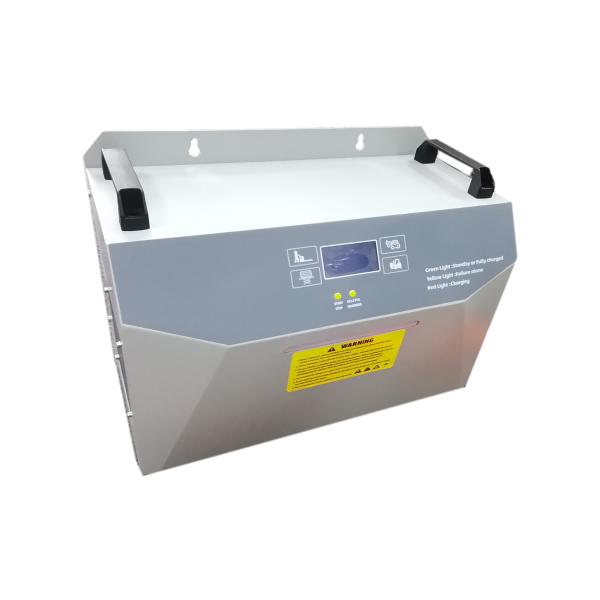

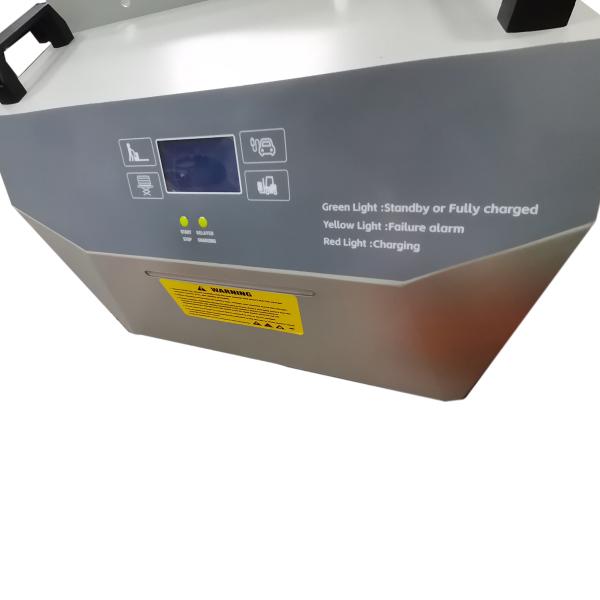

80A 48V High-Frequency Forklift Battery Charger with SCM Technology
80A 48V High-Frequency Forklift Battery Charger with SCM Technology
80A 48V High-Frequency Forklift Battery Charger with SCM Technology
80A 48V High-Frequency Forklift Battery Charger with SCM Technology
Specifications
Brand Name :
LAKER
Model Number :
ESCH48V/80A
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,D/P
Supply Ability :
5000 pcs per month
Delivery Time :
15 days After Order Confirmation and Deposit
Packaging Details :
Carton, Standard Wooden Pallet
Type :
High Frequency Battery Charger
Application :
Forklift Truck
Technology :
Single Chip Microcomputer (SCM)
Max Output Current :
80A
Description

High-Frequency Industrial Battery Charger


Application: Fork Lift(48v)


Model Name: ESCH48V/80A



Product Parameters


Model ESCH48V/80A
Dimensions (mm) Long * wide * high: 386*169*360 (mm)
Output maximum current (A) 80
Maximum power point (W) 4000
Input voltage (VAC) 380V±15% Three phase three wire +safe ground wire
Output voltage (VDC) Lead-acid battery:63V; VRLA:60V;(Customizable)
Applicable battery voltage 48V lead-acid battery pack, (Customizable, Lithium battery optional)
Maximum efficiency 97%
Output voltage regulation precision ±1%
Output current accuracy ±1%
Working temperature -30℃～-45℃
Classes of seismic measure SAEJ1378
Cooling mode Airblast cooling
Over-temperature protection 75℃±5
Input under-voltage protection (VAC) <284~304
Output over-voltage protection (VDC) 65V±1
Output over-current protection (A) >110%*Maximum charge current
Output short circuit protection When the output is short-circuited, charger shutdown and automatic recovery after short-circuiting is solved.
Battery reverse protection Charger shutdown and alarm when the wire is connected reversely, it will automatically resume after wiring correctly.


Product Specification

  • Charger integrates active power factor correction(PFC), can achieve zero pollution of the power grid and avoid the impact of large current grid；
  • Wide range of AC input voltage, strong adaptability；
  • The module has the perfect protection function such as input over-voltage, lack of input, output over current, over voltage output, output short circuit, output isolation protection, module overheating and so on；
  • The full-bridge phase-shifted soft switch PWM the latest mixed-mode control, to overcome the traditional phase-shifted full-bridge circuit circulation loss, working conditions of diode side faults, secondary-side diodes to achieve soft recovery, the module can achieve high efficiency over a wide input voltage range and the maximum load range. Efficiency;
  • Close to 97%, the electromagnetic interference is greatly reduced, and the volume weight is greatly reduced;
  • Improved thermal design, more uniform heat distribution;
  • The use of a more complete circuit board dust, moisture-proof treatment;
  • (high-frequency battery charger, high power battery charger)


Product Strength


  • Long life expectancy and proven in service record
  • Designed for use in harsh conditions
  • Smart modular design for simple and cost-effective
  • Highest efficiency, up to 97%
  • Fast and simple installation, plug and play
  • Cost-effective spare parts philosophy
  • Large range of chargers to match your application and optimize efficiency
