HPT20i i-Hybrid Material Handling Truck 2000kg Electric Manual Dual Mode Zero Downtime
HPT20i i-Hybrid Material Handling Truck 2000kg Electric Manual Dual Mode Zero Downtime
Specifications
Brand Name :
PROLAKER
Model Number :
HPT20i
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
5000 units per month
Delivery Time :
within 20 days
Packaging Details :
wooden pallet
Load Capacity :
2000kg
Fork Size :
1150/1220
Controller Type :
I50
Battery :
48V/15Ah
Description

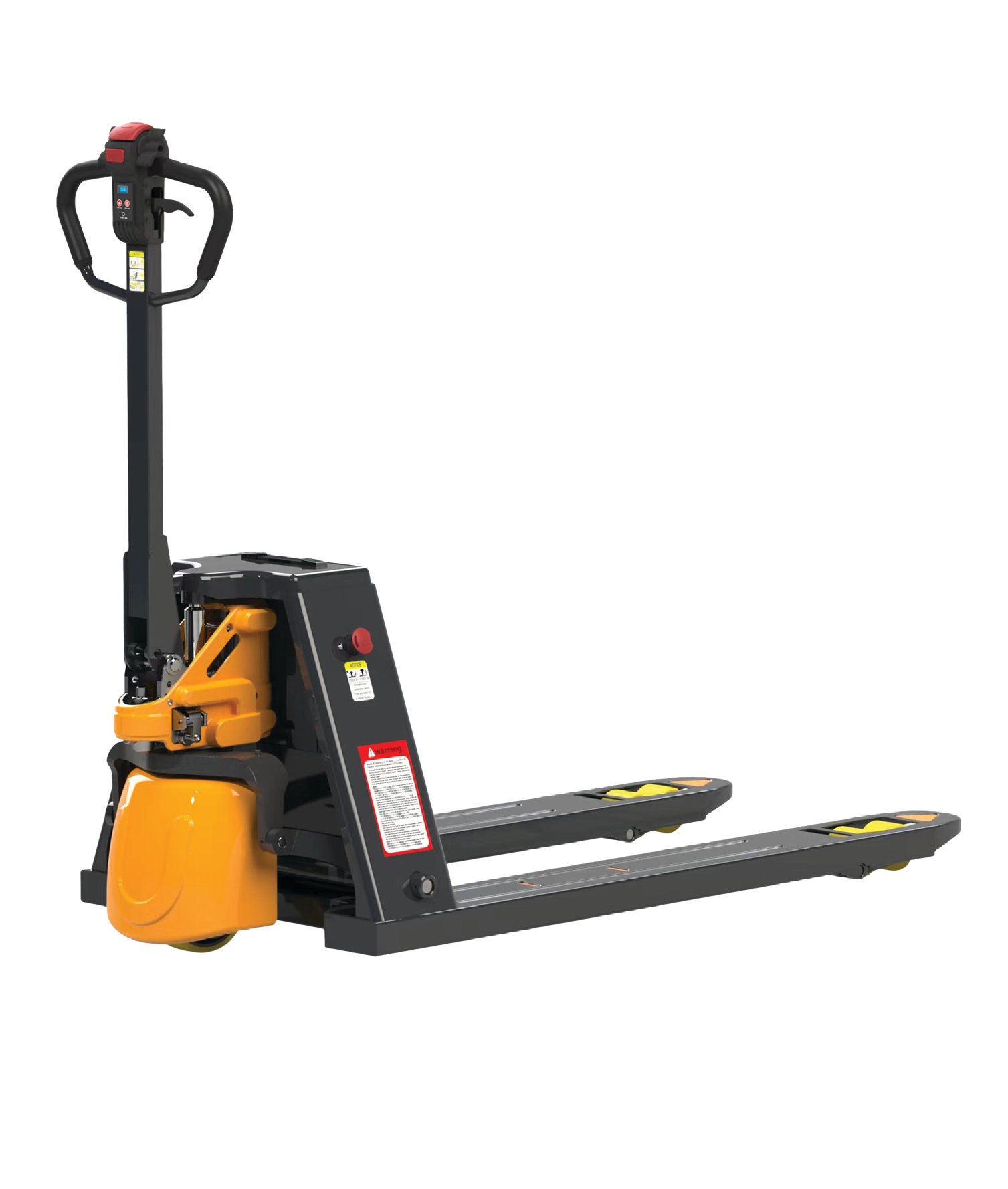

HPT20i i-Hybrid Material Handling Truck


The HPT20i is an intelligent i-Hybrid material handling solution engineered for 2-ton load carrying requirements, adopting a pedestrian operation mode that combines efficiency and flexibility for warehouse, workshop and various material handling scenarios. It features electric/manual dual-mode drive and lift with patented clutch technology, enabling seamless mode switching to achieve zero downtime during operation and an extra 30 minutes of uptime, maximizing work efficiency for continuous material handling tasks.
HPT20i i-Hybrid Material Handling Truck 2000kg Electric Manual Dual Mode Zero Downtime
Equipped with a 0.75kW brushless drive motor and a 0.65kW lift motor, the HPT20i delivers higher energy efficiency and significant cost savings compared with conventional motors. Its power system is paired with a 48V/15Ah LFP lithium iron phosphate battery (48V/20Ah larger capacity optional), boasting free maintenance, fast charging in just 2-3 hours, and an outstanding cycle performance that retains 80% capacity after 2000 charge-discharge cycles. With a spare battery, it supports 8 hours of non-stop working, completely eliminating range anxiety for long-hour operations.

In terms of operation and display, the truck comes with an OLED screen as standard, which clearly shows running hours, battery level and fault codes, with one-touch switching for Turtle Mode and Upright Mode, real-time slope degree display and direct fault diagnosis for easy operation and quick troubleshooting. The optional 2.5" high-resolution I-Touch Screen features an efficient, intuitive and customizable interactive interface, digitally displaying mileage, approximate load weight, battery status, travel speed, and enabling one-click VNA mode and secure password setting for enhanced operational convenience and management safety. The tiller arm height is adjustable from 560mm to 1280mm, fitting operators of different heights and reducing working fatigue.

The HPT20i excels in structural and performance design with a rated load capacity of 2000kg (4400lbs) and a load center of 600mm, perfectly adapting to 800mm/1000mm standard pallets. It has a maximum gradeability of 8% when loaded and 20% when unloaded, leading the market with superior climbing performance for sloped working sites. The travel speed reaches 4.2km/h (2.6mph) under load and 4.5km/h (2.8mph) when unloaded, with an electromagnetic service brake for sensitive and stable braking, and an i50 controller for precise and reliable operation control. Its compact structural dimensions ensure excellent maneuverability in narrow spaces, making it an ideal intelligent work partner for light and medium material handling.

HPT20i Core Specifications


Item Specification Unit
Rated Load Capacity 2000 (4400lbs) kg
Load Center 600 (24") mm
Wheelbase 1202 (47.3") mm
Minimum Turning Radius 1352 (53.2") mm
Overall Height 587 (23.1") mm
Lowered Fork Height 80 (3.15") mm
Max Lift Height 200 (8") mm
Tiller Arm Height Range 560 - 1280 (22" - 50.4") mm
Ground Clearance 27 (1.1") mm
Fork Size (L×S×e) 1150/1220×52×160 (45"/48"×2.05"×6.3") mm
Aisle Width (1000×1200 Pallet, Crossways) 1980 (78") mm
Aisle Width (800×1200 Pallet, Crossways) 1880 (74") mm
Drive Motor 0.75kW Brushless -
Lift Motor 0.65kW -
Travel Speed (Loaded/Unloaded) 4.2/4.5 (2.6/2.8mph) km/h
Max Gradeability (Loaded/Unloaded) 8%/20% -
Service Brake Electromagnetic -
Controller Type i50 -
Battery 48V/15Ah LFP (48V/20Ah optional) -
Charger 48V/5A -
