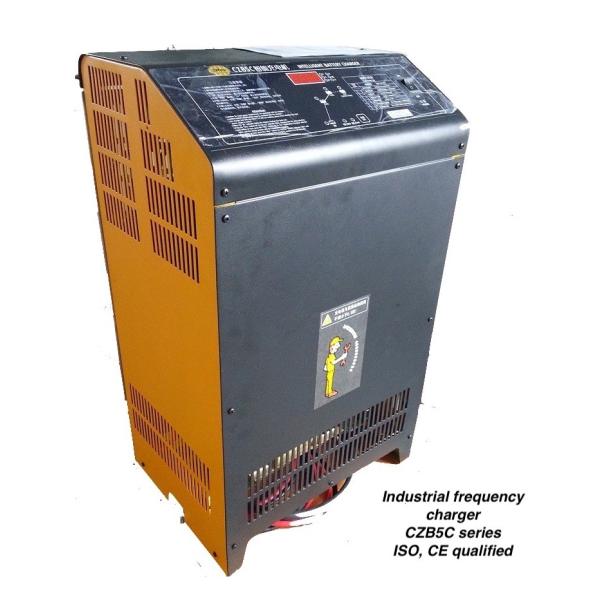

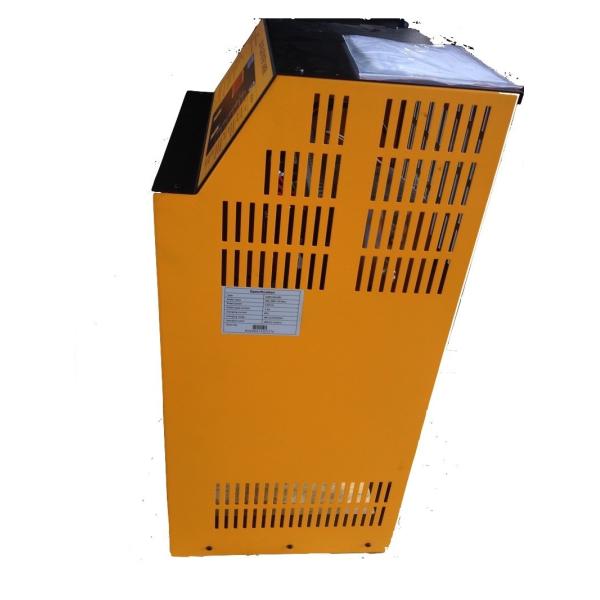

High Efficiency CZB5C Intelligent Charger for Electric Forklift
High Efficiency CZB5C Intelligent Charger for Electric Forklift
High Efficiency CZB5C Intelligent Charger for Electric Forklift
High Efficiency CZB5C Intelligent Charger for Electric Forklift
Specifications
Brand Name :
LAKER
Model Number :
CZB5C 48V 80A
Certification :
CE，ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
15 days After Order Confirmation and Deposit
Packaging Details :
Carton, Standard Wooden Pallet
Type :
Forklift Battery Charger
Model :
CZB5C 48V 80A
Output Voltage :
48V
Output Current :
120A
Application :
Electric Forklift
Phase :
Three Phase 380V
Highlight :
CZB5C lead-acid battery charger, high efficiency pulse charger, intelligent forklift battery charger
Description

Product introduction

CZB5C Series Intelligent Charger is the organic combination of leakage transformer, technology of Silicon-controlled rectifier and Microcomputer Control. This device could optimize Wsa+Pulse charging characteristic curve. As charge voltage of battery increases, charge current decreases automatically.

Pulse charge would be performed before gas emissions or in late stage of recharge. On the premise of guarantee adequate battery power, this device would lower greatly internal temperature and reduce gas emissions of battery, prolong the life of battery effectively and raise the charging efficiency eventually.

The whole product has simple structure, convenient operation, complete functions and high efficiency.


Application

This device would be applicable to recharge of lead-acid batteries which could be used in various electric vehicle such as power pallet trucks, fork-lift truck, lift truck, electronic tour bus.


Catalog

Specification

Input current A

Input power kVA

Output current

DC A

Battery parameters

outline dimension mm

Net weight

kg

@220V

@380V

@415V

V

Ah

8.5h-11h

D48V/55A

10.8

6.3

5.7

4.1

55

48

320-440

466×361×785

62

D48V/65A

12.8

7.4

6.8

4.9

65

48

375-520

466×361×785

65

D48V/80A

15.7

9.1

8.3

6.0

80

48

465-640

466×361×785

68

D48V/100A

19.7

11.4

10.4

7.5

100

48

580-800

526×360×882

86

D48V/120A

23.6

13.7

12.5

9.0

120

48

700-960

526×360×882

95

D80V/65A

21.3

12.3

11.3

8.1

65

80

375-520

526×360×882

87

D80V/70A

23.0

13.3

12.2

8.8

70

80

405-560

526×360×882

87

D80V/80A

26.2

15.2

13.9

10.0

80

80

465-640

526×360×882

89

D80V/100A

32.8

19.0

17.4

12.5

100

80

580-800

526×360×882

95

D80V/120A

39.4

22.8

20.9

15.0

120

80

700-960

526×360×882

107


High Efficiency CZB5C Intelligent Charger for Electric Forklift

High Efficiency CZB5C Intelligent Charger for Electric Forklift


Our service

To ensure a good user experience, we have established a full-process service system covering the pre-sales, in-sales, and after-sales stages:


  • Pre-sales Service: A professional team provides product consultation support. Users only need to inform the model and specifications of the battery (such as voltage and capacity), and we can recommend the most suitable CZB5C Series charger model according to actual needs to ensure equipment matching.
  • In-sales Service: Provides product installation guidance (such as precautions for desktop and vertical installation) and operation training to help users quickly master the use method of the charger.
  • After-sales Service: Provides timely technical support and maintenance services for problems during equipment use to ensure stable operation of the user's equipment and reduce work interruptions caused by equipment failures.


Welcome customers to purchase the CZB5C Series intelligent charger. We will provide reliable charging guarantees for your electric equipment with high-quality products and professional services!
