EP Heavy Duty Li-Ion Stacker With Foldable Platform 1600kg RSL161 For Demanding Applications And Long-Distance Transportation With 24V/280Ah Battery&24V/100A Charger
EP Heavy Duty Li-Ion Stacker With Foldable Platform 1600kg RSL161 For Demanding Applications And Long-Distance Transportation With 24V/280Ah Battery&24V/100A Charger
Specifications
Brand Name :
EP
Model Number :
RSL161
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 Unit Per Month
Delivery Time :
within 50 days
Packaging Details :
Nude Package
Operator type :
Pedestrian
Load capacity :
1600kg
Tyre type :
Polyurethane
Lift height :
2915mm
Description

Details

Model designation
 RSL161 RSL161i
Drive
Electric
Electric
Load capacity
 Q

kg

 1600 2000
Load center distance
 c mm 600 600
Service weight
 kg 1200 1340
Lift height
 h3 mm 2915 2915
Height, mast extended

h4

 mm 3425 3495
Initial lift
 h5 mm / 120
Length to face of forks
 l2 mm 821 971
Overall width
 b1/b2 mm 850 850
Fork dimensions
 s/e/l mm 65×170×1150 60×185×1150
Turning radius
 Wa mm 1560 1900
Max. gradeability, laden/unladen
 % 8/12 8/16
Travel speed, laden/unladen
 km/h 9/11 9/11
Lifting speed, laden/unladen
 m/s 0.2/0.26 0.2/0.26
Lowering speed, laden/unladen
 m/s 0.4/0.36 0.4/0.36
Battery voltage/nominal capacity
 V/Ah 24/205 24/205
Energy consumption according to DIN EN 16796
 kWh/h 1.01 1.01
Turnover output according to VDI 2198
 t/h 54.4 54.4
Turnover efficiency according to VDI 2198
 t/kWh 37 37

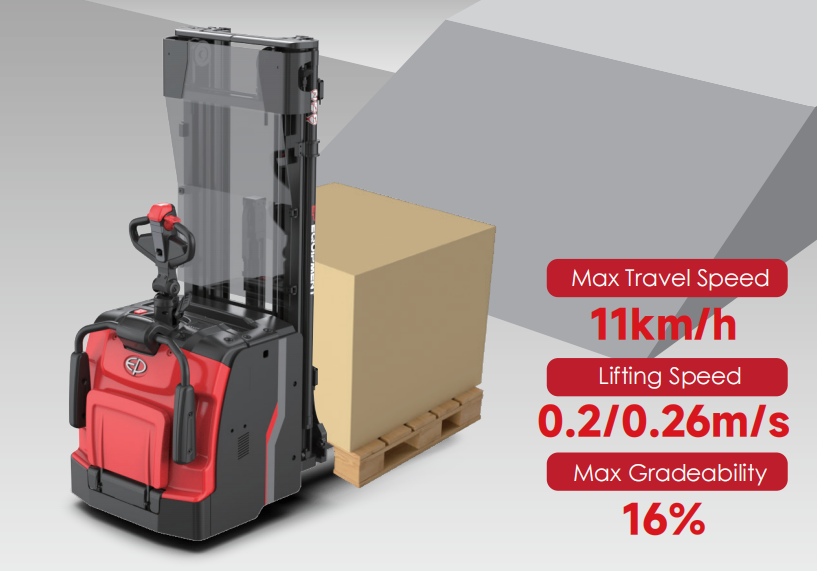

Maximum Performance for Professiona Users
The RSL16l of standard version and lnitial liftingversion is the perfect choice for professional userswho require a high-performance electric stacker.lt'sdesigned for efficient material handling in largewarehouses and industrial environments whereoperators usually stack and transport goods overmedium to long distances. The RSLl6li allows forsmooth travelon uneven roads and double deckingcapability.

EP Heavy Duty Li-Ion Stacker With Foldable Platform 1600kg RSL161 For Demanding Applications And Long-Distance Transportation With 24V/280Ah Battery&24V/100A Charger

Designed around Lithium BatteryAdvantages

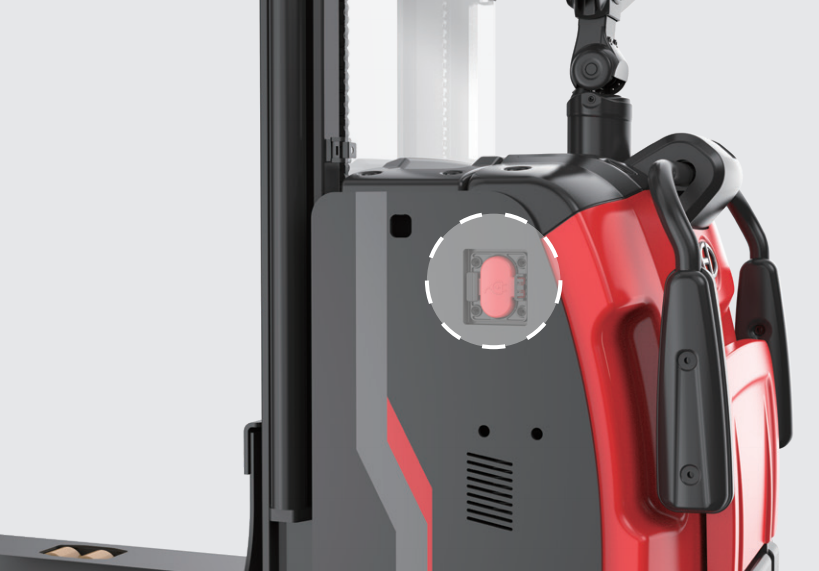

Equipped with a powerful 24V205Ah Lithium-ionbattery, the RSL series offers all the advantages oflithium technology which features a compact designand grants long operation, short downtime andextremely long battery life with no maintenancerequirement.The external charging plug makes thecharging process efficient and user-friendly- no needto open battery compartment and remove plugs anymore. And the full re-charge time can be less than 2hours.

EP Heavy Duty Li-Ion Stacker With Foldable Platform 1600kg RSL161 For Demanding Applications And Long-Distance Transportation With 24V/280Ah Battery&24V/100A Charger

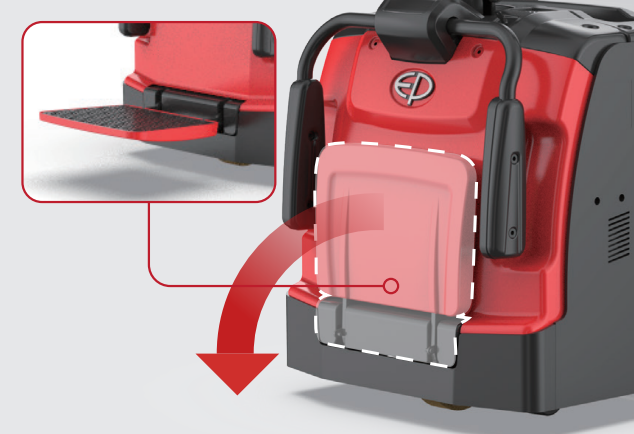

Improved Foldable Operator Platform
The newly designed foldable operator platformenhances both comfort and maneuverability, makingthe RSL series ideal for both long-distance travelinlarge warehouses and usage in tight spaces. ltsshock-absorbing suspension ensures a smooth andstable ride, reducing operator fatigue over extendedshifts.When folded, the stacker becomes morecompact and easier to control,improvingmaneuverability between racks and narrow aisles

EP Heavy Duty Li-Ion Stacker With Foldable Platform 1600kg RSL161 For Demanding Applications And Long-Distance Transportation With 24V/280Ah Battery&24V/100A Charger

EP Heavy Duty Li-Ion Stacker With Foldable Platform 1600kg RSL161 For Demanding Applications And Long-Distance Transportation With 24V/280Ah Battery&24V/100A Charger

EP Heavy Duty Li-Ion Stacker With Foldable Platform 1600kg RSL161 For Demanding Applications And Long-Distance Transportation With 24V/280Ah Battery&24V/100A Charger

EP Heavy Duty Li-Ion Stacker With Foldable Platform 1600kg RSL161 For Demanding Applications And Long-Distance Transportation With 24V/280Ah Battery&24V/100A Charger
