Product Introduction

TP120 is the best-selling model of the LAKER TP series solid tire press line. Driven by a 4KW motor and rated at 120 tons of pressing force, it is built for one job that nothing else can do properly: forcing stiff, airless solid tires onto (or off) forklift rims. It suits the daily workload of tire service shops, forklift rental fleets, warehouses, ports and mining logistics centers that maintain forklifts up to 7 tons.

The TP120 accepts the most common forklift solid tire sizes — 28×9-15, 8.25-15 and 355/65-15 — on 12-16 inch rims. Mounting, dismounting and amending are all handled by the same machine, so one press replaces what would otherwise require several special tools.

Key Highlights At A Glance

• 120 ton rated force from a compact 4KW motor — enough for daily solid tire mounting and dismounting duty.
• Triple duty: press-on mounting, press-out dismounting and distortion amending in one frame.
• Covers mainstream forklift tires 28×9-15 / 8.25-15 / 355/65-15 on 12-16 inch rims.
• Relief-valve overload protection guards the machine and the tire against excessive pressure.
• Independent electric control box with start/stop, stroke control and emergency stop.
• Voltage and phase customizable (220V / 380V / 480V) to match local power supply.

Technical Specification — TP120

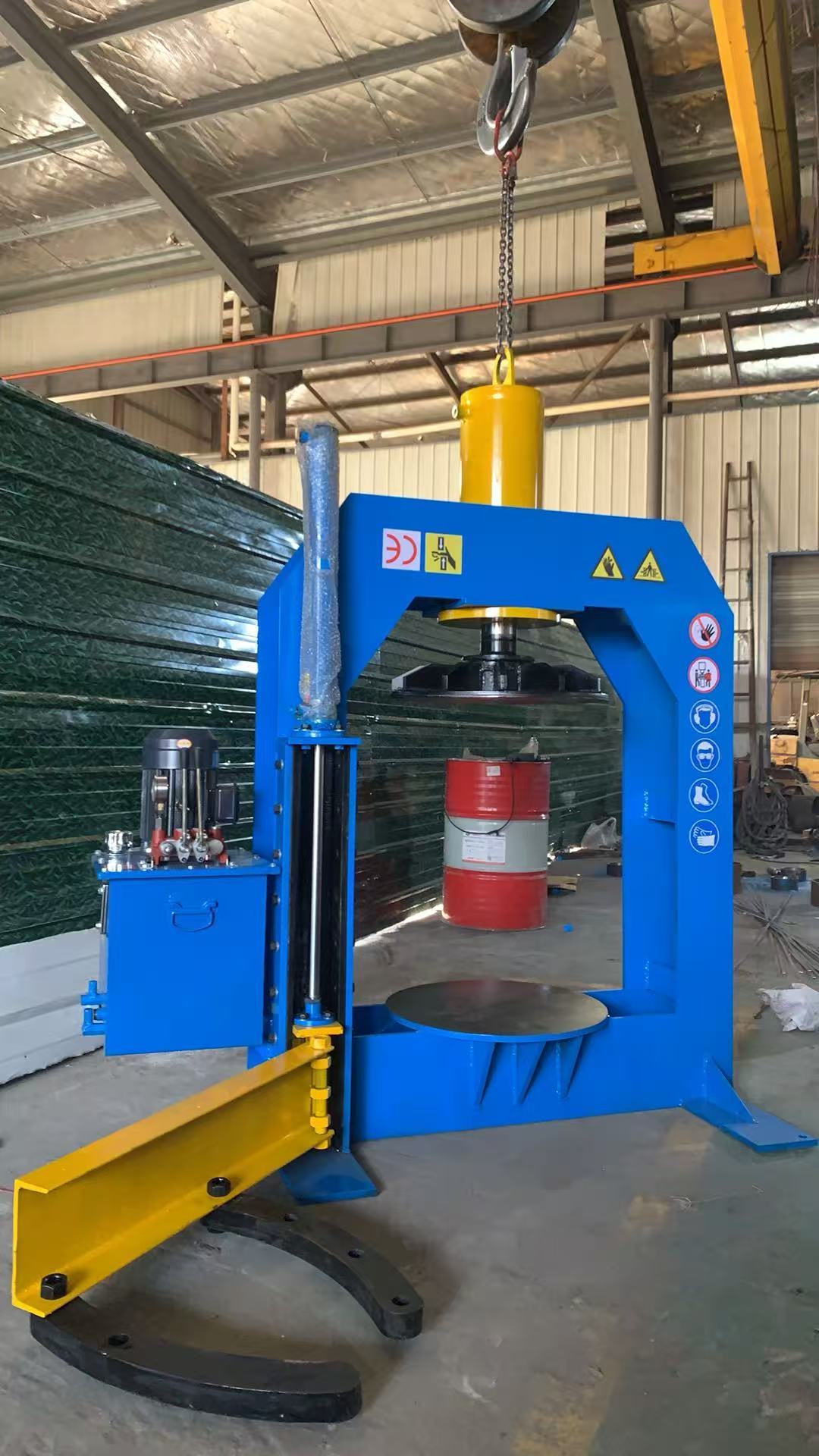

Product Real Shot

One Machine, Three Working Duties

The TP120 is not a single-purpose tool. The same frame and hydraulic system handle all three jobs a solid tire workshop meets every day:

Mounting (press-on)

Presses a new solid tire evenly onto the rim until the bead seats fully against the rim flange — no hammers, no levers, no damaged beads.

Dismounting (press-out)

Presses the worn solid tire out of the rim so the wheel can be re-shod quickly and sent back to work.

Amending (correction)

Corrects solid tires that have shifted, deformed or run out of position during service, restoring proper seating on the rim.

TP Series At A Glance & How To Choose

The LAKER TP family spans every duty class. TP80 (80T / 3KW) covers rims of 8-12 inch and is the compact, budget-friendly entry level for small forklifts and stackers. TP120 — the model on this page (120T / 4KW) — handles 12-16 inch rims and tires up to 28×9-15 / 8.25-15 / 355/65-15, which makes it the best seller for 3-7 ton warehouse forklifts. TP160 (160T / 5.5KW) steps up to tires such as 12.00-20 for 5-7 ton forklifts and light OTR work, while TP200 (200T / 7.5KW) covers rims up to 24 inch for 7-10 ton machines. TP240 / TP250 (240-250T) serve 24-25 inch rims on forklifts above 10 tons, and the TP300 - TP500 range (up to 500T / 15KW) is built for OTR engineering tires up to 33 inch in mines and ports, with customization available.

Choosing is simple: match the press to the largest tire you service today. If your fleet is standard warehouse forklifts, TP120 is the proven workhorse; move up the range as tire and rim sizes grow.

Hydraulic System — Core Components

The TP120 hydraulic system is a closed, relief-valve-protected circuit built from seven main parts, each with a clear job: the high-pressure pump generates the oil flow that drives the press (12-35 MPa working range across the TP series); the main cylinder pushes the piston rod and pressing head downward to apply force on the tire; the solenoid valve switches the oil direction for press-down and return strokes; the relief (safety) valve sets the maximum pressure and automatically releases oil on overload; the check valve prevents oil backflow so pressure is held during pressing; the pressure gauge displays the actual working pressure in real time; and the oil tank (130-370 L depending on tonnage) stores and cools the hydraulic oil.

Documents & Certification

• Manufactured under ISO9001 quality management; CE (EU market) and SABER (Saudi Arabia) certification available on request.
• Documentation package included: data sheet, operation manual, installation manual and maintenance manual for the TP series.
• Full range available: TP80 / TP120 / TP160 / TP200 / TP240 / TP250 / TP300 / TP400 / TP500, with optional press tooling for different rim sizes.

Service & Support

• Online technical support for operation, installation and troubleshooting questions.
• Original spare parts and wear parts (seals, tools, valves, gauges) available for long-term after-sales service.
• Voltage, phase, color and optional accessories (adjustable head, dual station, lifting arm) can be customized per order.
