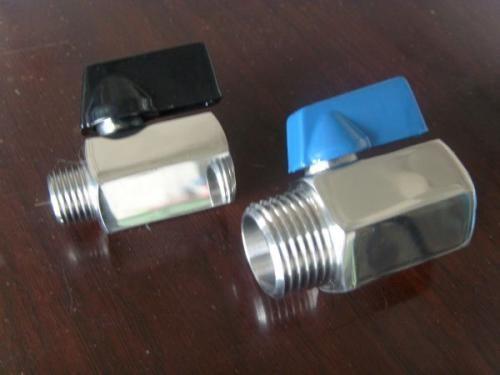

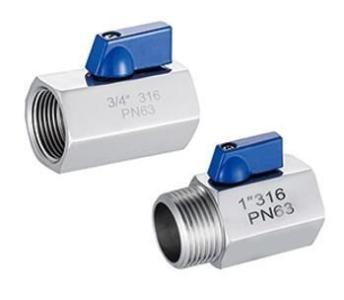

Female Thread Cast Steel Ball Valve Manual / Actuator Driving Mode Mini Size
Female Thread Cast Steel Ball Valve Manual / Actuator Driving Mode Mini Size
Female Thread Cast Steel Ball Valve Manual / Actuator Driving Mode Mini Size
Female Thread Cast Steel Ball Valve Manual / Actuator Driving Mode Mini Size
Female Thread Cast Steel Ball Valve Manual / Actuator Driving Mode Mini Size
Female Thread Cast Steel Ball Valve Manual / Actuator Driving Mode Mini Size
Specifications
Brand Name :
KIRI or OEM
Model Number :
Q11F
Certification :
CE;ISO
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, etc. 30% prepayment, 70% balance paid before shipping or against copy of BL
Supply Ability :
3000pcs/week
Delivery Time :
15~20 Days
Packaging Details :
wooden case packing or as required
Material :
WCB/201/304(CF8)/316(CF8M)
Size :
1/2"-4"
Connection :
NPT/ BSPT/ BSPP / DIN2999/ G Thread
Working Temperature :
-10°C to +120°C
Type :
Floating Ball Valve
Driving Mode :
Manual, actuator
Description

Mini Ball Valve Female Thread,CF8/CF8M,3/8"-2",1000WOG

Features

Reduced Port
Blow-out Proof Stem
Pressure Balance Hole in Ball Slot
Various Thread Standards Available
product standard
Design:ASME B16.34
Wall Thickness:ASME B16.34
Pipe Thread: ASME B1.20.1,BS21,DIN 2999/259,ISO 228/1,JIS B 0203,ISO 7/1
Inspection & Testing:MSS SP-110,EN 1226

No. Parts name Material
ANSI/JIS/DIN ANSI/JIS/DIN
1 Body A351-CF8M/SCS14A/1.4408 A351-CF8/SCS13A/1.4308
2 Ball seat PTFE/RPTFE
3 Ball SUS316
4 Ball seat PTFE/RPTFE
5 Bonnet SUS304
6 Thrust washer PTFE/RPTFE
7 O-Ring FKM(VITON)
8 Stem SUS316
9 Postion Handle Aluninnum
10 Philips Screw SUS304

Unit:mm

Size
 d L H E End Thread
1/4" 5 42 26.5 22.8 NPT,MPT,BSPT,BSP,DIN,PT,etc...
3/8" 8 42 26.5 22.8
1/2" 9 46 28.3 22.8
3/4" 12.5 54 31.5 22.8
1" 15 65 34 22.8

Female Thread Cast Steel Ball Valve Manual / Actuator Driving Mode Mini Size
