Specifications
Brand Name :
forged alloy steel shaft
Model Number :
forging steel shaft
Certification :
ISO PED
Place of Origin :
China
MOQ :
1pc
Price :
20usd/pc to 5000usd/pc
Payment Terms :
L/C, T/T
Supply Ability :
500tons/month
Delivery Time :
7-25 working days
Packaging Details :
oiled surface + export packing
Material :
Alloy , stainless and carbon steel
Cert :
ISO and PED
Surface :
CNC machining
Length :
according customer's require
Description

Forging 4140 Sae1045 C45e Alloy Steel Shaft With Cnc Machining Surface

 Forging 4140 Sae1045 C45e Alloy Steel Shaft With Cnc Machining Surface

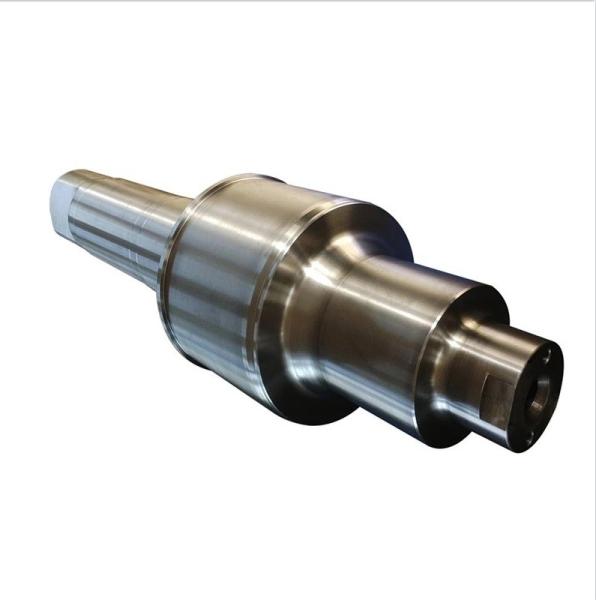

Name: Forging 4140 35CrMo, 9Cr2Mo Steel Mandrel Shaft with CNC Machining Surface

Comapny Information:

We are a leading company for providing all kinds of forging steel products more than 10 years. Our company located in Wuxi Jiangsu, which is near the Shanghai port. The heavy forging: forged ring, fogred shaft, steel roller, steel flange, or gear is widely used for various industries. For example: Metallurgy, mining, power station and so on. The manufacturing equipment is 185MN or 100MN hydraulic press, the forging ratio >4.5, the technical condition is in accordance with the standard of ASTM, EN, DIN, JIS, ASME or GB etc.
The product can be provided as per your drawing or specified requirements.

Products reference:

Material AISI4140 aisi4340 sae1045 st52 S355jr 50Mn
Forging equipment 3000T open die hydropess
Application Supporting roll of veneer reeling machine to rotate up roll and low roll,thus to bend the sheet continuously
Melting process EF+LF+VD
Production process Forging+heat treatment+rough machining+QT
Forging ratio ≥3.5
Applicable standard ASTM,ASME,DIN,JIS,ISO,BS,API,EN
Executive standard JB/GB/EN/DIN/JIS/ASME/ASTM/ISO
Certification authority ISO9001:2008,CE,SGS
Delivery term Rough machining(N+T);finsh machining(Q+T)

Test equipment

Spectrograph,UT device,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine
Service Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality.

Custom properties

Material elements C Si Mn P S Cr Ni Mo

Others
50Mn 0.48-0.56 0.17-0.37 0.70-1.00 ≤0.035 ≤0.035 ≤0.25 ≤0.30 ≤0.25
4140 0.38-0.43 0.15-0.35 0.60-0.90 ≤0.035 ≤0.040 0.80-1.10 -- 0.15-0.25 -
60CrMo 0.55-0.65 0.17-0.30 0.450-0.80 ≤0.020 ≤0.015 0.50-0.80 ≤0.25 0.20-0.40
9Cr2Mo 0.85-0.95 0.25-0.45 0.20-0.40 ≤0.025 ≤0.025 1.70-2.10 ≤0.25 0.20-0.40

Mechanical property Dia.(mm) TS/Rm(Mpa) YS/Rp0.2(Mpa) EL/A5(%) RA/Z(%) Type Of notch Impact energy HBW
50Mn Ø10 ≥645 ≥390 ≥13 ≥40 V ≥39 ≤255HBS
4140 Ø10 740~1000 450~850 ≥12 ≥25 V ≥40 ≤250HBS

Process procedure:

Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment.

Advantage:

1.High-precision dimension tolerance;

2.Excellent mechanical properties;

3.Produce different dimension based on customer’s requirements;

4.Advanced manufacture equipment and inspection devices;

5.Excellent technical personality;

6.Control the production procedure strictly;

7.Pay attention on the package protection;

8.Quality full service.
